Status and Lifecycle Endpoints

This document describes the design of the SOVD status/lifecycle endpoints in ros2_medkit_gateway. It covers the six REST routes, the status read semantics for each entity type, the LifecycleProvider plugin seam, error mapping, and SOVD requirement coverage.

Overview

SOVD ISO 17978-3 defines a lifecycle model for software entities. A client reads the current lifecycle state via a GET and drives transitions via PUT sub-resources. The gateway implements these routes for Apps and Components only (Areas and Functions do not carry lifecycle state in the current SOVD profile).

The six routes are:

Path	Method	Description
/{entity}/{id}/status	GET	Read current lifecycle status
/{entity}/{id}/status/start	PUT	Request transition to started state
/{entity}/{id}/status/restart	PUT	Request controlled restart
/{entity}/{id}/status/force-restart	PUT	Request forced restart
/{entity}/{id}/status/shutdown	PUT	Request controlled shutdown
/{entity}/{id}/status/force-shutdown	PUT	Request forced shutdown

where {entity} is either apps or components.

Route Registration

The lifecycle routes are registered outside the four-entity-type loop in rest_server.cpp::setup_routes(), covering only apps and components:

for (const auto & et_lc :
     std::vector<std::pair<const char *, const char *>>{
         {"apps", "app"}, {"components", "component"}}) {
  const std::string base_lc = "/" + et_lc.first + "/{" + et_lc.second + "_id}";

  // GET and PUT use different HTTP methods so neither can shadow the
  // other; registration order within the loop is arbitrary.
  for (const auto & action :
       {"start", "restart", "force-restart", "shutdown", "force-shutdown"}) {
    reg.put<http::NoContent>(base_lc + "/status/" + action, ...);
  }
  reg.get<dto::LifecycleStatusResponse>(base_lc + "/status", ...);
}

The GET /status route and the PUT /status/{action} routes use different HTTP methods, so neither can shadow the other. cpp-httplib keeps a separate handler list per method, so registration order does not matter.

Status Read Semantics

GET /{entity}/{id}/status returns a LifecycleStatusResponse DTO:

{
  "status": "ready" | "notReady",
  "start":          "/api/v1/{entity}/{id}/status/start",    // optional
  "restart":        "/api/v1/{entity}/{id}/status/restart",  // optional
  "force-restart":  "/api/v1/{entity}/{id}/status/force-restart", // optional
  "shutdown":       "/api/v1/{entity}/{id}/status/shutdown",       // optional
  "force-shutdown": "/api/v1/{entity}/{id}/status/force-shutdown"  // optional
}

The optional transition URI fields are only present when the registered LifecycleProvider signals support for that transition. Each field value is the absolute path the client should call to trigger the transition.

App status: for a managed lifecycle node (one exposing get_state and change_state), the status is read from the node’s lifecycle state via lifecycle_msgs/srv/GetState: the active state is "ready"; any other state, or an unreachable/timed-out read, is "notReady". This subsumes liveness, since a dead node’s get_state service is gone. For a plain node with no lifecycle services, the status falls back to App::is_online (presence in the ROS 2 graph), which is the best signal available for an unmanaged node. A node that is not online short-circuits to "notReady" without a GetState read (an offline node cannot be active), which also avoids a blocking read against a crashed managed node whose services still linger in the cache. The GetState read runs on a private node and executor (spun inline), so it never blocks or races the gateway executor; it is, however, serialized by an internal mutex, so a reachable-but-slow managed node holds that mutex across its spin and delays other concurrent /status reads for up to the (short) read timeout.

Component status: the synthetic host component (the one carrying host_metadata, populated by HostInfoProvider) is "ready" while the gateway is serving the request - its substrate is the gateway host, which is reachable by definition. Any other local component derives readiness from its hosted Apps: a component that hosts Apps is "notReady" when every one of them is offline (its subsystem is down), and "ready" when at least one is online. A component with no hosted Apps is a pure grouping and stays "ready" (the local substrate is reachable; a single down App is that App’s own "notReady", not enough to mark the component down). Remote components are reached through aggregation forwarding, so peer reachability drives their status.

When a LifecycleProvider is registered for the entity the provider’s response takes precedence over the cache-derived default. The handler also fills absolute transition URIs from the provider-supplied optional fields.

LifecycleProvider Interface

LifecycleProvider is a per-entity plugin interface defined in include/ros2_medkit_gateway/core/providers/lifecycle_provider.hpp. It follows the same typed-DTO style as OperationProvider.

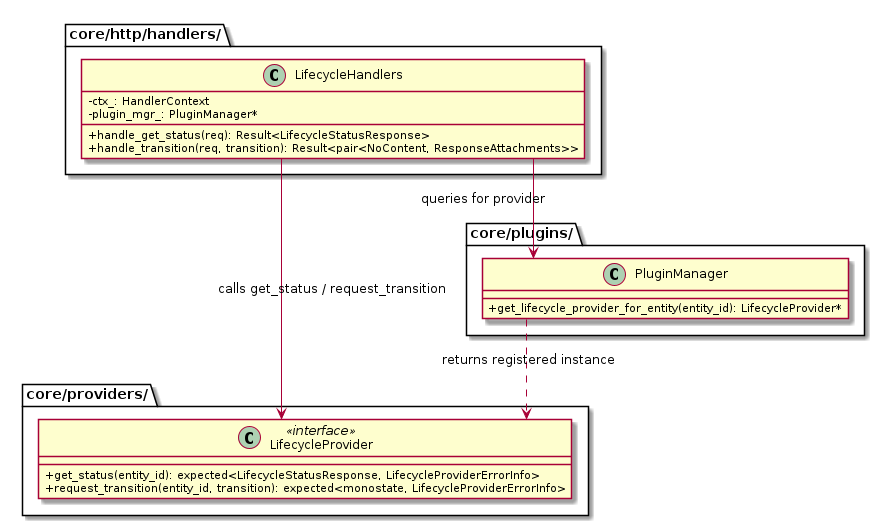

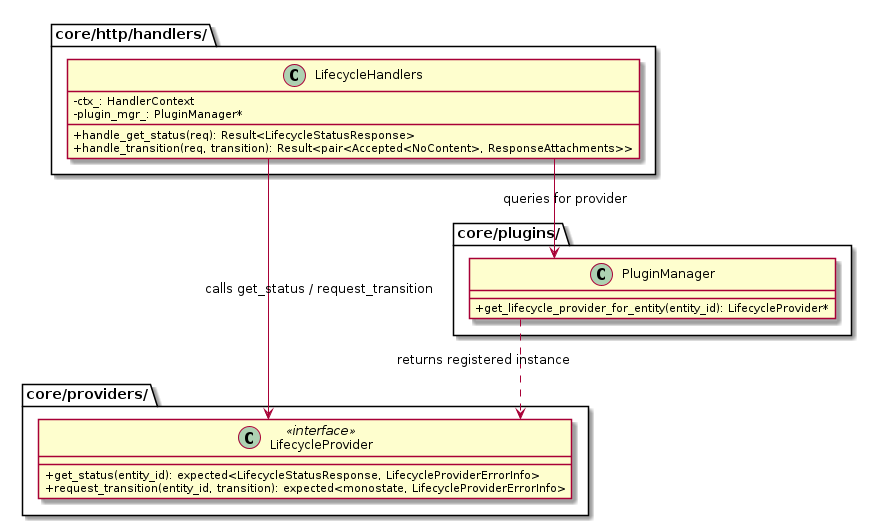

LifecycleProvider and handler relationships

A substrate plugin (ROS 2 lifecycle node manager, process/container supervisor, host-level service manager) registers a LifecycleProvider implementation via PluginManager. The handler looks up the provider per entity at request time via plugin_mgr_->get_lifecycle_provider_for_entity(entity_id).

Fallback behavior when no provider is registered:

• GET /status returns a cache-derived LifecycleStatusResponse with no transition URI fields (no actuation capability advertised).

• PUT /status/{action} returns 501 Not Implemented with error code not-implemented.

Control remains 501 for all five PUT transitions until a plugin registers a provider for the entity.

Error Mapping

LifecycleProviderErrorInfo carries a typed error code, a message string, and an optional HTTP status hint. The handler maps it to a gateway ErrorInfo via the file-local to_error_info helper:

LifecycleProviderError	HTTP	SOVD error code
AccessDenied	403	insufficient-access-rights
PreconditionFailed	409	precondition-not-fulfilled
Unsupported	501	not-implemented
EntityNotFound, TransportError, Internal	hint	x-medkit-plugin-error

The HTTP status from LifecycleProviderErrorInfo::http_status is clamped to the range 400-599. Plugin exceptions are caught; unknown exceptions map to 500 / x-medkit-plugin-error.

There are two distinct 403 paths. The auth middleware returns 403 before the handler runs when the client’s RBAC role is insufficient (for example a viewer calling a PUT transition). Separately, the provider error table’s AccessDenied row maps to 403 when a registered LifecycleProvider itself refuses the operation for a substrate-level reason, unrelated to the gateway RBAC check.

Transition Flow

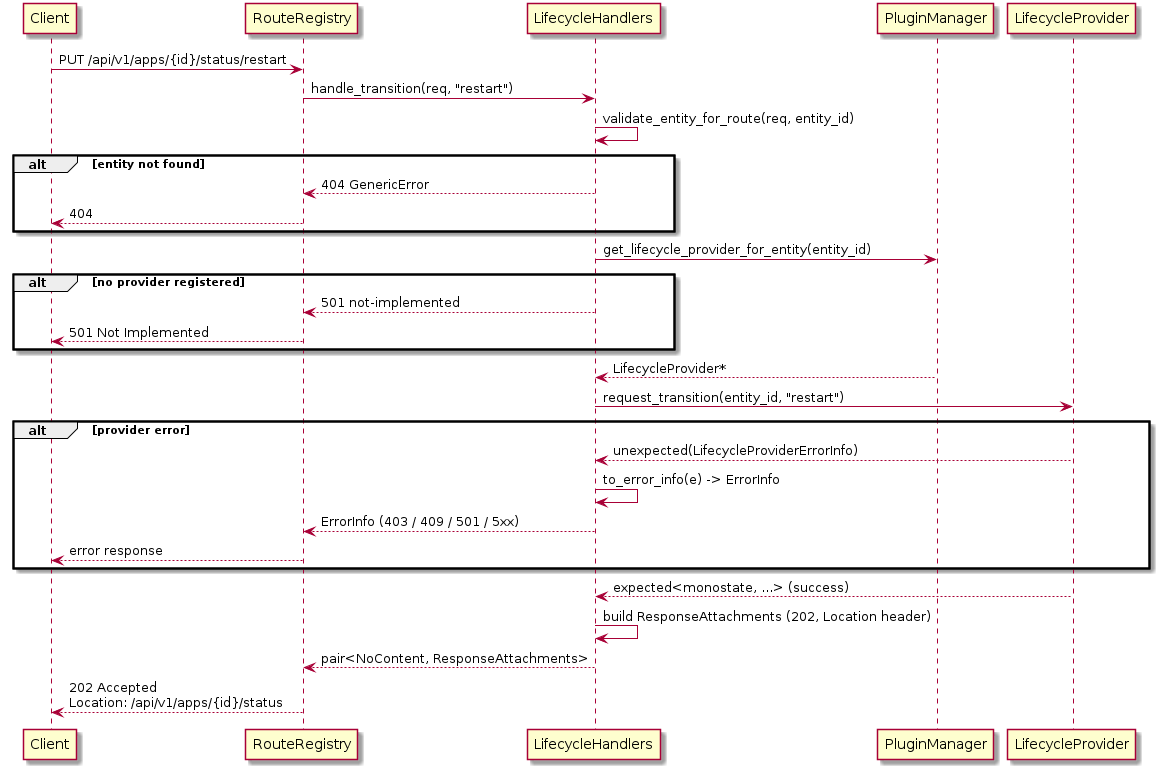

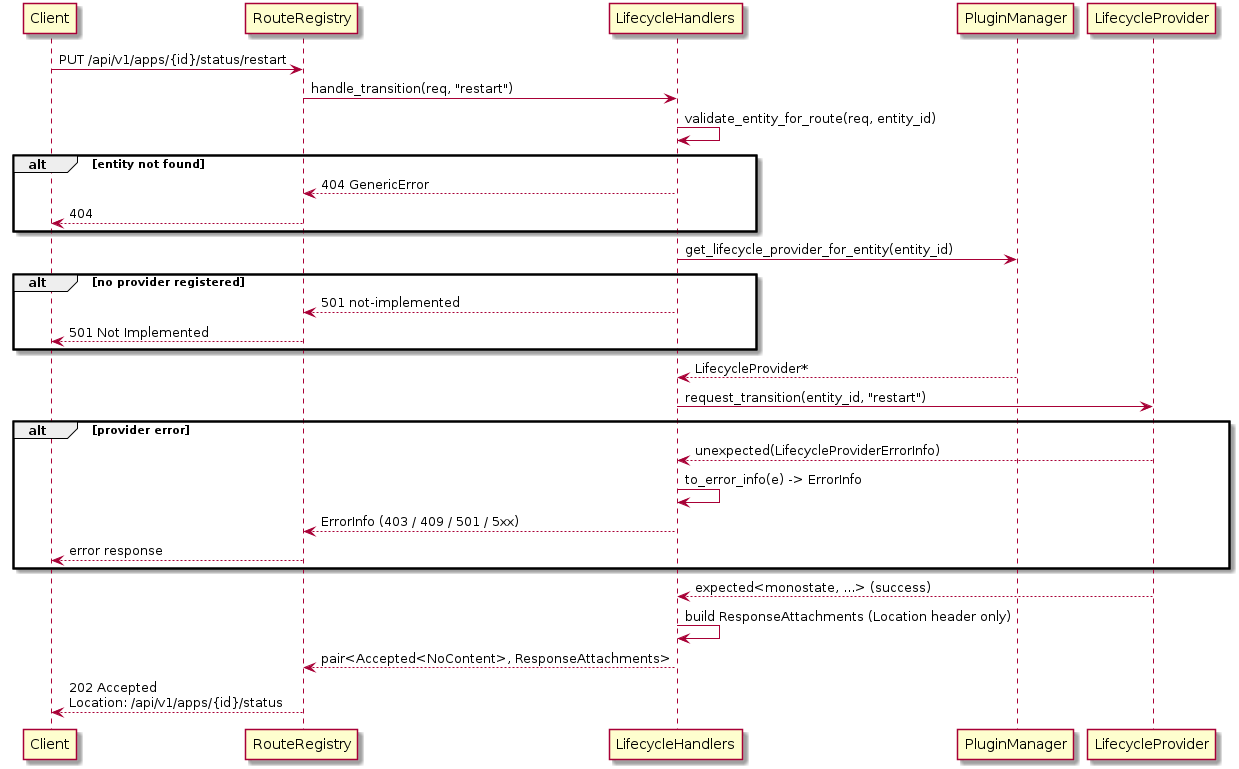

PUT lifecycle transition - full request flow

The transition is async: the PUT returns 202 with a Location header pointing to GET /{entity}/{id}/status. The client polls that endpoint to observe the state change. The provider is responsible for initiating the substrate-level operation (e.g., calling a ROS 2 lifecycle service or sending a signal to a process manager); it returns immediately on acceptance.

SOVD Requirement Coverage

Requirement	Status	Notes
REQ_INTEROP_076	verified| GET /status implemented; default status derived from entity cache when no provider is registered.
REQ_INTEROP_077	open	Route registered; returns 501 until a LifecycleProvider registers.
REQ_INTEROP_078	open	Same as REQ_INTEROP_077.
REQ_INTEROP_079	open	Same as REQ_INTEROP_077.
REQ_INTEROP_080	open	Same as REQ_INTEROP_077.
REQ_INTEROP_081	open	Same as REQ_INTEROP_077.

REQ_INTEROP_076 is verified by the lifecycle integration tests. Requirements 077-081 remain open because they require actuation at the substrate level (process/container/ROS 2 lifecycle node). They will be marked verified when a plugin implementing LifecycleProvider::request_transition ships.

Key Files

include/ros2_medkit_gateway/dto/lifecycle.hpp

LifecycleStatusResponse DTO with dto_fields and dto_name specializations. Wire keys force-restart and force-shutdown use hyphen as required by the SOVD spec.

include/ros2_medkit_gateway/core/providers/lifecycle_provider.hpp

LifecycleProvider pure virtual interface and LifecycleProviderErrorInfo error struct.

include/ros2_medkit_gateway/core/http/handlers/lifecycle_handlers.hpp

LifecycleHandlers class declaration.

src/http/handlers/lifecycle_handlers.cpp

Handler implementations for GET status and PUT transition, including the to_error_info mapping helper.

src/http/rest_server.cpp

Route registration (search for // === Lifecycle).
