ros2_medkit_diagnostic_bridge

This section contains design documentation for the ros2_medkit_diagnostic_bridge package.

Overview

The Diagnostic Bridge converts standard ROS 2 /diagnostics messages into fault events for the FaultManager. This enables integration with existing ROS 2 diagnostic infrastructure while leveraging the centralized fault management capabilities of ros2_medkit.

Architecture

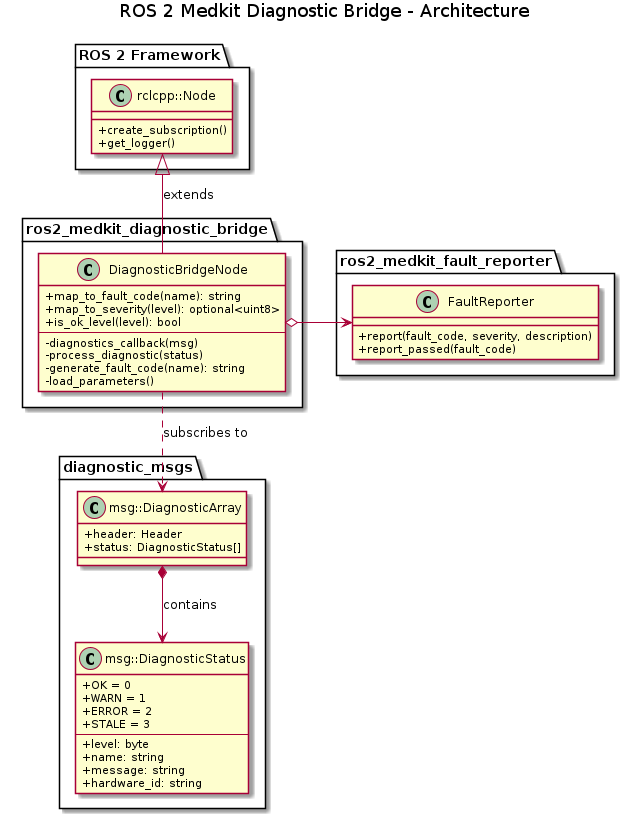

The following diagram shows the data flow and component relationships.

@startuml ros2_medkit_diagnostic_bridge_architecture skinparam linetype ortho skinparam classAttributeIconSize 0 title ROS 2 Medkit Diagnostic Bridge - Architecture package "ROS 2 Framework" { class "rclcpp::Node" { +create_subscription() +get_logger() } } package "diagnostic_msgs" { class "msg::DiagnosticArray" { +header: Header +status: DiagnosticStatus[] } class "msg::DiagnosticStatus" { +OK = 0 +WARN = 1 +ERROR = 2 +STALE = 3 -- +level: byte +name: string +message: string +hardware_id: string } } package "ros2_medkit_fault_reporter" { class FaultReporter { +report(fault_code, severity, description) +report_passed(fault_code) } } package "ros2_medkit_diagnostic_bridge" { class DiagnosticBridgeNode { +map_to_fault_code(name): string +map_to_severity(level): optional<uint8> +is_ok_level(level): bool -- -diagnostics_callback(msg) -process_diagnostic(status) -generate_fault_code(name): string -load_parameters() } } ' Relationships DiagnosticBridgeNode -up-|> "rclcpp::Node" : extends DiagnosticBridgeNode o-right-> FaultReporter : uses DiagnosticBridgeNode ..> "msg::DiagnosticArray" : subscribes to "msg::DiagnosticArray" *--> "msg::DiagnosticStatus" : contains @enduml

ROS 2 Medkit Diagnostic Bridge Architecture

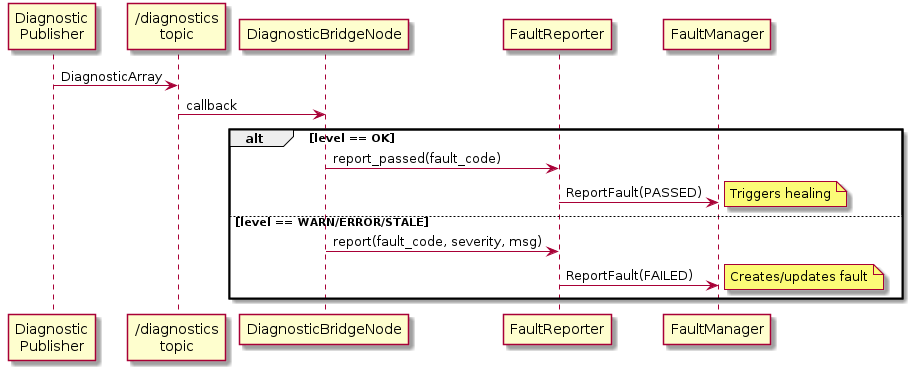

Data Flow

@startuml diagnostic_bridge_flow participant "Diagnostic\nPublisher" as Pub participant "/diagnostics\ntopic" as Topic participant "DiagnosticBridgeNode" as Bridge participant "FaultReporter" as Reporter participant "FaultManager" as FM Pub -> Topic : DiagnosticArray Topic -> Bridge : callback alt level == OK Bridge -> Reporter : report_passed(fault_code) Reporter -> FM : ReportFault(PASSED) note right: Triggers healing else level == WARN/ERROR/STALE Bridge -> Reporter : report(fault_code, severity, msg) Reporter -> FM : ReportFault(FAILED) note right: Creates/updates fault end @enduml

Diagnostic Bridge Data Flow

Severity Mapping

The bridge maps DiagnosticStatus levels to FaultManager severities:

Severity Mapping

DiagnosticStatus

Fault Severity

Description

OK (0)

PASSED event

Sends healing event to clear fault

WARN (1)

WARN (1)

Warning-level fault

ERROR (2)

ERROR (2)

Error-level fault

STALE (3)

CRITICAL (3)

Stale data treated as critical

Main Components

  1. DiagnosticBridgeNode - The main ROS 2 node - Subscribes to /diagnostics topic (configurable) - Processes each DiagnosticStatus in incoming arrays

  2. Fault Code Generation - Converts diagnostic names to fault codes - Custom mappings via name_to_code.<name> parameters take precedence - Auto-generation converts to UPPER_SNAKE_CASE: "motor temp" → "MOTOR_TEMP" - Can be disabled with auto_generate_codes: false

  3. FaultReporter Integration - Bridges to FaultManager - OK status → report_passed() for healing - WARN/ERROR/STALE → report() with mapped severity

Configuration

Parameters

Node Parameters

Parameter

Default

Description

diagnostics_topic

/diagnostics

Topic to subscribe for diagnostic messages

auto_generate_codes

true

Auto-generate fault codes from diagnostic names

name_to_code.<name>

(none)

Custom mapping from diagnostic name to fault code

Example Launch Configuration

diagnostic_bridge:
  ros__parameters:
    diagnostics_topic: "/diagnostics"
    auto_generate_codes: true
    # Custom mappings override auto-generation
    "name_to_code.motor_controller: Status": "MOTOR_001"
    "name_to_code.battery_monitor": "BATTERY_LOW"

Design Decisions

Fault Code Auto-Generation

Diagnostic names are converted to fault codes using these rules:

  • Convert to uppercase

  • Replace non-alphanumeric characters with underscores

  • Collapse multiple separators to single underscore

  • Remove leading/trailing underscores

Examples:

  • "motor temp" → "MOTOR_TEMP"

  • "/robot/arm" → "ROBOT_ARM"

  • "sensor: status" → "SENSOR_STATUS"

STALE as CRITICAL

STALE diagnostics are mapped to CRITICAL severity because stale data typically indicates a communication failure or node crash, which is a serious system health issue.
