ros2_medkit_serialization

This section contains design documentation for the ros2_medkit_serialization package.

Overview

The ros2_medkit_serialization package provides runtime JSON ↔ ROS 2 message conversion using the dynmsg library. It enables the gateway to work with any ROS 2 message type without compile-time dependencies.

Architecture

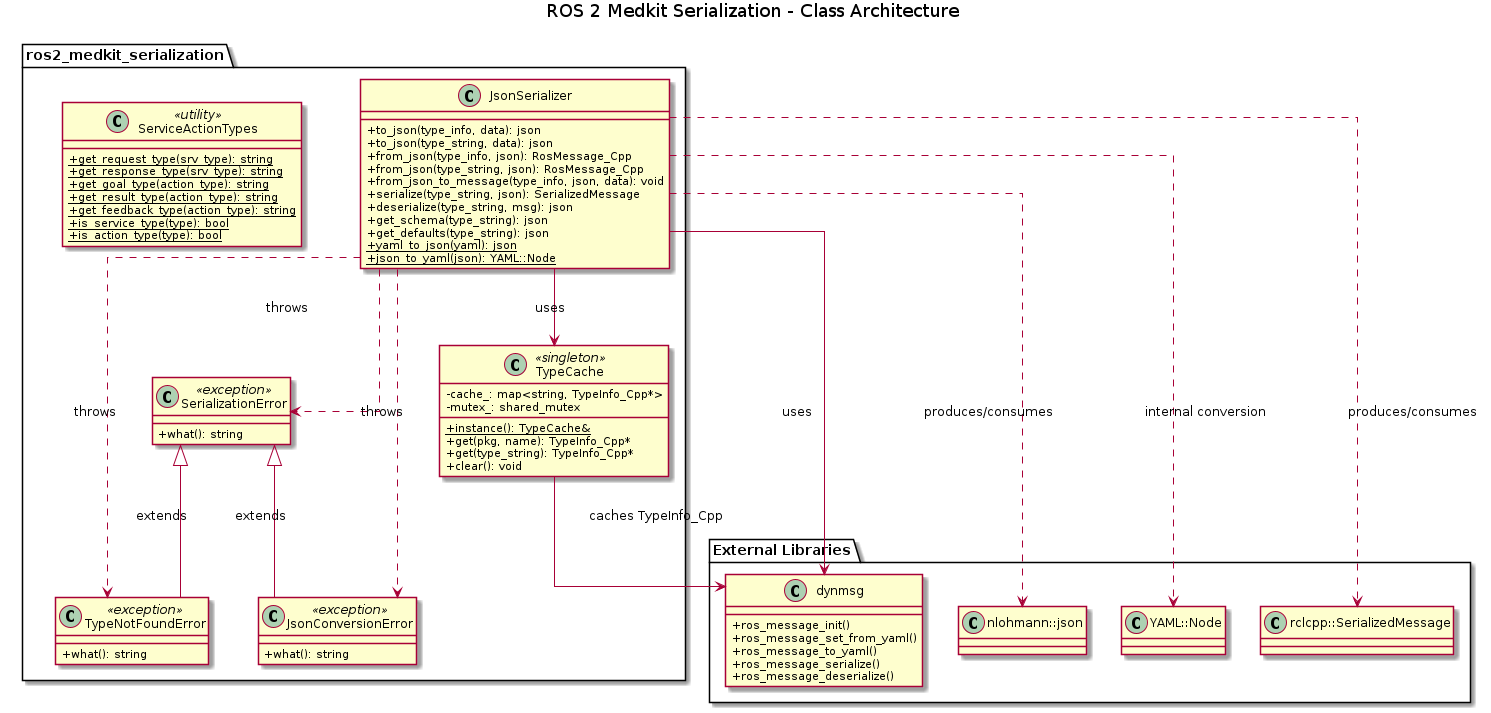

The following diagram shows the relationships between the main components.

ROS 2 Medkit Serialization Class Architecture

Main Components

1. JsonSerializer - The main API for JSON ↔ ROS 2 message conversion - Stateless and thread-safe design - Provides serialize() / deserialize() for CDR format (used with GenericPublisher/GenericSubscription) - Provides to_json() / from_json() for in-memory message conversion - Uses dynmsg YAML bridge internally (JSON ↔ YAML ↔ ROS 2 message) - Generates JSON schemas and default values for any message type - Static utilities for YAML ↔ JSON conversion

2. TypeCache - Thread-safe singleton cache for type introspection data - Caches TypeInfo_Cpp* pointers from dynmsg - Uses std::shared_mutex for concurrent read access - Automatic cache miss loading via dynmsg ros_type_info_get() - Key format: "package/msg/Type" or "package/srv/Type"

3. ServiceActionTypes - Utility functions for service/action type manipulation - Derives request/response types from service type (e.g., std_srvs/srv/SetBool → std_srvs/srv/SetBool_Request) - Derives goal/result/feedback types from action type - Type validation helpers (is_service_type(), is_action_type())

4. Exception Classes - Typed exceptions for error handling - SerializationError - Base class for all serialization errors - TypeNotFoundError - Message type not found in ROS 2 type system - JsonConversionError - JSON/YAML conversion failed

Data Flow

Publishing (JSON → CDR)

JSON → json_to_yaml() → YAML::Node → dynmsg (set_from_yaml + serialize) → SerializedMessage → GenericPublisher

Subscribing (CDR → JSON)

GenericSubscription → SerializedMessage → dynmsg (deserialize + to_yaml) → YAML::Node → yaml_to_json() → JSON

Service Calls (JSON → CDR → JSON)

Request:  JSON → serialize() → SerializedMessage → GenericClient
Response: GenericClient → SerializedMessage → deserialize() → JSON

Design Decisions

YAML Bridge

The package uses dynmsg’s YAML interface rather than direct binary manipulation because:

1. Stability: dynmsg’s YAML API is well-tested and handles complex nested types

2. Type Safety: YAML preserves type information during conversion

3. Debugging: YAML is human-readable for troubleshooting

4. Performance: Conversion overhead is negligible compared to network I/O

The JSON ↔ YAML conversion layer adds minimal overhead since both formats have similar data models (objects, arrays, scalars).

Singleton TypeCache

The TypeCache uses the singleton pattern because:

1. Memory Efficiency: Type introspection data is shared across all serializers

2. Thread Safety: Single mutex protects all cache operations

3. Lifetime Management: Cache lives for the process duration, matching dynmsg’s design

Thread Safety

• JsonSerializer is stateless and can be used from multiple threads

• TypeCache uses std::shared_mutex for concurrent reads

• All public methods are safe to call from any thread

Usage in Gateway

The serialization package is used by:

1. DataAccessManager - Publishing to topics via GenericPublisher

2. OperationManager - Calling services/actions via GenericClient

3. NativeTopicSampler - Deserializing messages from GenericSubscription

Example: Publishing to a Topic

JsonSerializer serializer;

// Create publisher
auto publisher = node->create_generic_publisher(
    "/cmd_vel", "geometry_msgs/msg/Twist", qos);

// Serialize JSON to CDR
nlohmann::json twist_json = {
    {"linear", {{"x", 1.0}, {"y", 0.0}, {"z", 0.0}}},
    {"angular", {{"x", 0.0}, {"y", 0.0}, {"z", 0.5}}}
};
auto serialized = serializer.serialize("geometry_msgs/msg/Twist", twist_json);

// Publish
publisher->publish(serialized);

Example: Deserializing from Subscription

JsonSerializer serializer;

auto callback = [&](std::shared_ptr<rclcpp::SerializedMessage> msg) {
    nlohmann::json json = serializer.deserialize(
        "sensor_msgs/msg/LaserScan", *msg);
    // Process json...
};

auto subscription = node->create_generic_subscription(
    "/scan", "sensor_msgs/msg/LaserScan", qos, callback);
