Configuring Fault Correlation

This tutorial shows how to configure fault correlation to automatically identify root causes and reduce fault noise in complex systems.

Overview

When multiple faults occur in rapid succession, they often share a common root cause. Fault correlation helps by:

• Hierarchical mode: Identifying root cause → symptom relationships. Symptoms are muted while the root cause is displayed.

• Auto-cluster mode: Grouping similar faults that occur within a time window into a single cluster.

This is similar to:

• AUTOSAR DEM event combination - grouping related diagnostic events

• AIOps alert correlation - reducing alert storms in monitoring systems

Benefits:

• Reduced fault noise for operators

• Faster root cause identification

• Cleaner fault lists in dashboards

How It Works

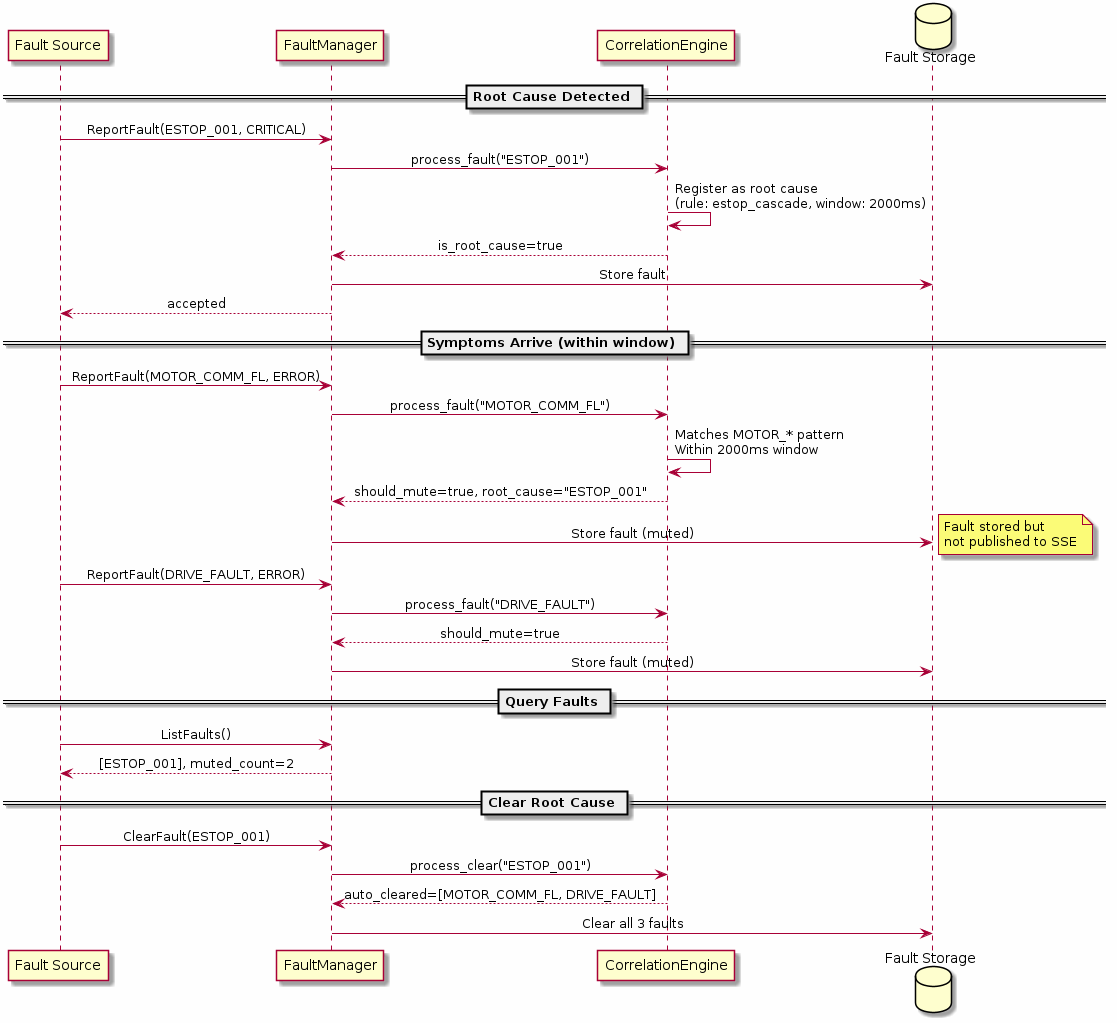

Hierarchical Mode Flow:

Auto-Cluster Mode Flow:

Quick Start

1. Create a correlation configuration file:

   # correlation.yaml
   correlation:
     enabled: true
     default_window_ms: 500

     patterns:
       motor_errors:
         codes: ["MOTOR_*"]
       sensor_errors:
         codes: ["SENSOR_*"]

     rules:
       - id: estop_cascade
         name: "E-Stop Cascade"
         mode: hierarchical
         root_cause:
           codes: ["ESTOP_001"]
         symptoms:
           - pattern: motor_errors
         window_ms: 2000
         mute_symptoms: true
         auto_clear_with_root: true


2. Start the fault manager with correlation enabled:

   ros2 run ros2_medkit_fault_manager fault_manager_node --ros-args \
     -p correlation.config_file:=/path/to/correlation.yaml


3. Query faults with correlation data:

   curl "http://localhost:8080/api/v1/faults?include_muted=true"


Configuration Reference

Top-Level Settings

Parameter	Default	Description
enabled	false	Enable/disable fault correlation
default_window_ms	500	Default time window for correlation rules (ms)

Patterns Section

Patterns define reusable groups of fault codes with wildcard support:

patterns:
  motor_errors:
    codes: ["MOTOR_COMM_*", "MOTOR_TIMEOUT_*"]
  drive_faults:
    codes: ["DRIVE_*", "INVERTER_*"]
  sensor_errors:
    codes: ["SENSOR_*"]

Wildcard syntax:

• * matches any sequence of characters

• MOTOR_* matches MOTOR_001, MOTOR_OVERHEAT, etc.

• Exact codes (without *) use fast string comparison

Hierarchical Mode

Hierarchical mode identifies root cause → symptom relationships.

rules:
  - id: estop_cascade
    name: "E-Stop Cascade"
    mode: hierarchical
    root_cause:
      codes: ["ESTOP_001", "ESTOP_002"]
    symptoms:
      - pattern: motor_errors
      - pattern: drive_faults
    window_ms: 2000
    mute_symptoms: true
    auto_clear_with_root: true

Parameter	Default	Description
root_cause.codes	(required)	Fault codes that trigger this rule
symptoms	(required)	List of pattern references for symptom faults
window_ms	default_window_ms	Time window to look for symptoms after root cause
mute_symptoms	true	Hide symptom faults from normal queries
auto_clear_with_root	true	Auto-clear symptoms when root cause is cleared

How it works:

1. When ESTOP_001 is reported, it’s marked as a root cause

2. Any MOTOR_* or DRIVE_* faults within 2000ms are marked as symptoms

3. Symptoms are muted (not shown in default fault list)

4. Clearing ESTOP_001 auto-clears all its symptoms

Auto-Cluster Mode

Auto-cluster mode groups similar faults into clusters.

rules:
  - id: sensor_storm
    name: "Sensor Storm"
    mode: auto_cluster
    match:
      - pattern: sensor_errors
    min_count: 3
    window_ms: 2000
    show_as_single: true
    representative: highest_severity

Parameter	Default	Description
match	(required)	List of pattern references for faults to cluster
min_count	3	Minimum faults needed to form a cluster
window_ms	default_window_ms	Time window for clustering faults
show_as_single	true	Show cluster as single fault (mute non-representatives)
representative	highest_severity	How to select the cluster representative: first, most_recent, or highest_severity

How it works:

1. First SENSOR_* fault starts a potential cluster

2. Additional SENSOR_* faults within 2000ms join the cluster

3. When 3+ faults accumulate, cluster becomes active

4. Only the representative fault is shown; others are muted

Querying Correlation Data

Basic query (includes counts):

curl http://localhost:8080/api/v1/faults

Response always includes:

{
  "faults": [...],  // fault objects
  "count": 5,
  "muted_count": 12,
  "cluster_count": 2
}

With muted fault details:

curl "http://localhost:8080/api/v1/faults?include_muted=true"

{
  "faults": [...],  // fault objects
  "muted_count": 12,
  "muted_faults": [
    {
      "fault_code": "MOTOR_COMM_001",
      "root_cause_code": "ESTOP_001",
      "rule_id": "estop_cascade",
      "delay_ms": 150
    }
  ]
}

With cluster details:

curl "http://localhost:8080/api/v1/faults?include_clusters=true"

{
  "faults": [...],  // fault objects
  "cluster_count": 2,
  "clusters": [
    {
      "cluster_id": "sensor_storm_1",
      "rule_id": "sensor_storm",
      "rule_name": "Sensor Storm",
      "representative_code": "SENSOR_CRITICAL_001",
      "representative_severity": "CRITICAL",
      "fault_codes": ["SENSOR_001", "SENSOR_002", "SENSOR_CRITICAL_001"],
      "first_at": "2026-01-19T10:00:00Z",
      "last_at": "2026-01-19T10:00:01Z"
    }
  ]
}

Auto-clear on root cause resolution:

curl -X DELETE http://localhost:8080/api/v1/faults/ESTOP_001

{
  "success": true,
  "fault_code": "ESTOP_001",
  "auto_cleared_codes": ["MOTOR_COMM_001", "MOTOR_TIMEOUT_002", "DRIVE_001"]
}

Example: Complete Configuration

# /etc/ros2_medkit/correlation.yaml
correlation:
  enabled: true
  default_window_ms: 500

  patterns:
    motor_errors:
      codes: ["MOTOR_COMM_*", "MOTOR_TIMEOUT_*", "MOTOR_OVERHEAT_*"]
    drive_faults:
      codes: ["DRIVE_*", "INVERTER_*"]
    sensor_errors:
      codes: ["SENSOR_*"]
    battery_warnings:
      codes: ["BATTERY_LOW", "BATTERY_CRITICAL"]

  rules:
    # E-Stop causes motor and drive shutdowns
    - id: estop_cascade
      name: "E-Stop Cascade"
      mode: hierarchical
      root_cause:
        codes: ["ESTOP_001", "ESTOP_002"]
      symptoms:
        - pattern: motor_errors
        - pattern: drive_faults
      window_ms: 2000
      mute_symptoms: true
      auto_clear_with_root: true

    # Battery critical causes low battery warnings
    - id: battery_cascade
      name: "Battery Cascade"
      mode: hierarchical
      root_cause:
        codes: ["BATTERY_CRITICAL"]
      symptoms:
        - pattern: battery_warnings
      window_ms: 1000

    # Group sensor storms
    - id: sensor_storm
      name: "Sensor Storm"
      mode: auto_cluster
      match:
        - pattern: sensor_errors
      min_count: 3
      window_ms: 2000
      show_as_single: true
      representative: highest_severity

Troubleshooting

Symptoms not being muted

• Check that mute_symptoms: true is set

• Verify the symptom fault code matches a pattern in symptoms

• Ensure the symptom occurs within window_ms of the root cause

• Check fault manager logs for correlation matches

Cluster not forming

• Verify min_count faults have occurred within window_ms

• Check that fault codes match patterns in match

• Clusters only become “active” after reaching min_count

Root cause not detected

• Verify the fault code exactly matches one in root_cause.codes

• Wildcards in root_cause.codes are supported

Configuration validation

The fault manager validates configuration on startup. Check logs for:

[WARN] Rule 'my_rule' references unknown pattern: missing_pattern
[ERROR] Hierarchical rule 'my_rule' has no root_cause codes
