TurtleBot3 Demo

This tutorial shows ros2_medkit integration with a TurtleBot3 simulation running Gazebo and Nav2 navigation stack.

Overview

This Docker-based demo showcases ros2_medkit with TurtleBot3 Waffle:

  • TurtleBot3 Simulation — Gazebo world with TurtleBot3 Waffle robot

  • Nav2 Navigation — Full navigation stack with SLAM

  • ros2_medkit Gateway — REST API exposing robot capabilities

  • Web UI — Visual entity browser

Key Features:

  • Complete navigation system with goal sending

  • Sensor data access (LiDAR, odometry, camera)

  • Fault injection scenarios (localization, navigation failures)

  • Docker-based — no local ROS 2 installation needed

Prerequisites

  • Docker and Docker Compose installed

  • Git (to clone the demo repository)

Starting the Demo

Clone the demo repository and run the startup script:

git clone https://github.com/selfpatch/selfpatch_demos.git
cd selfpatch_demos/demos/turtlebot3_integration

# Start the demo (daemon mode)
./run-demo.sh

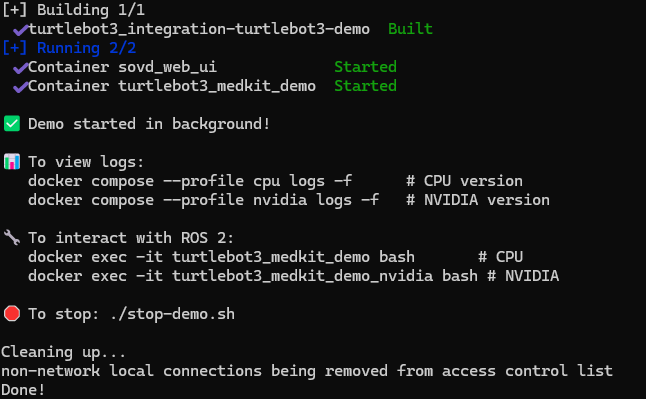

Demo startup terminal output

Terminal showing demo services starting up.

The script will build and start Docker containers with:

  • Gazebo simulation with TurtleBot3 Waffle

  • Nav2 navigation stack

  • ros2_medkit gateway (REST API on port 8080)

  • sovd_web_ui (Web interface on port 3000)

Startup Options:

./run-demo.sh --attached    # Run in foreground with logs
./run-demo.sh --update      # Pull latest images
./run-demo.sh --no-cache    # Build without cache

Exploring the System

Open the web UI at http://localhost:3000 and connect to the gateway at http://localhost:8080 and api/v1

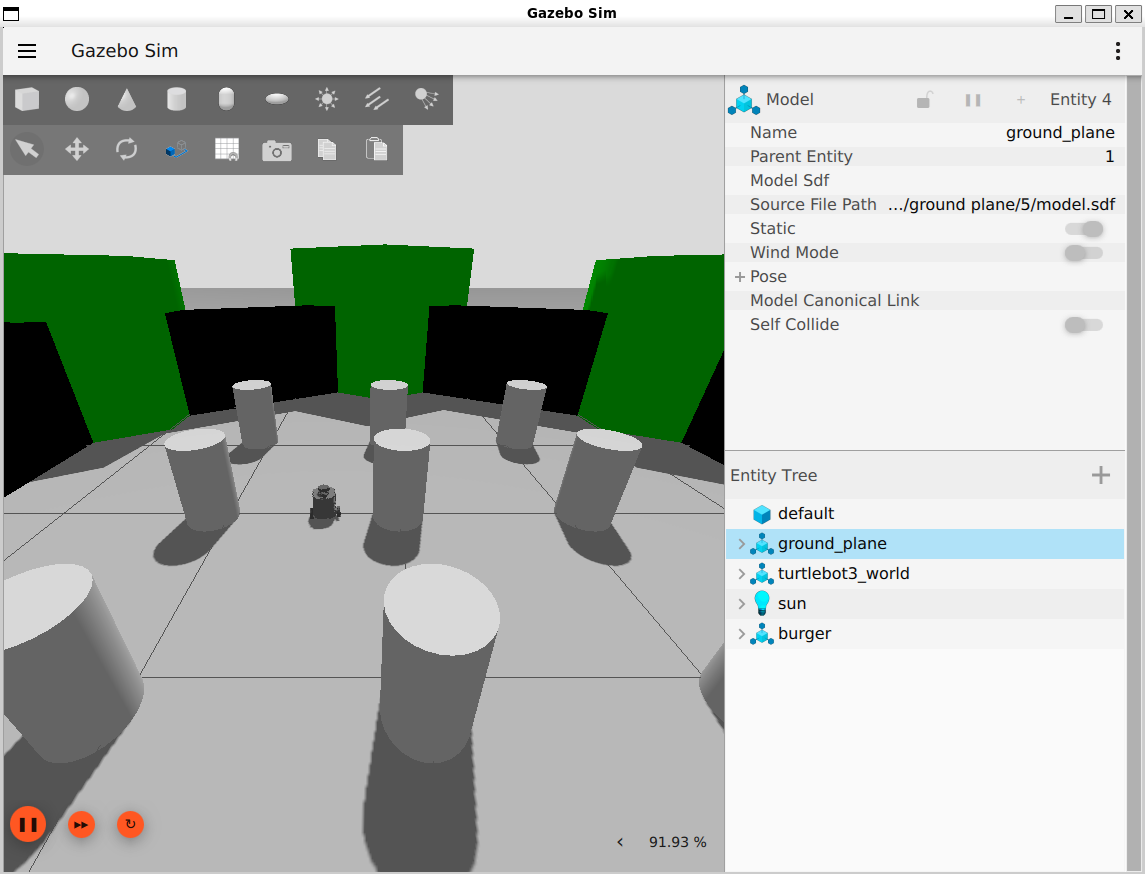

TurtleBot3 in Gazebo

TurtleBot3 Waffle in Gazebo simulation.

The demo uses a manifest-based configuration to organize entities into logical areas:

  • robot — TurtleBot3 hardware and drivers

  • navigation — Nav2 navigation stack

  • diagnostics — ros2_medkit gateway and fault management

  • bridge — Legacy diagnostics bridge

Querying via API:

curl http://localhost:8080/api/v1/areas | jq

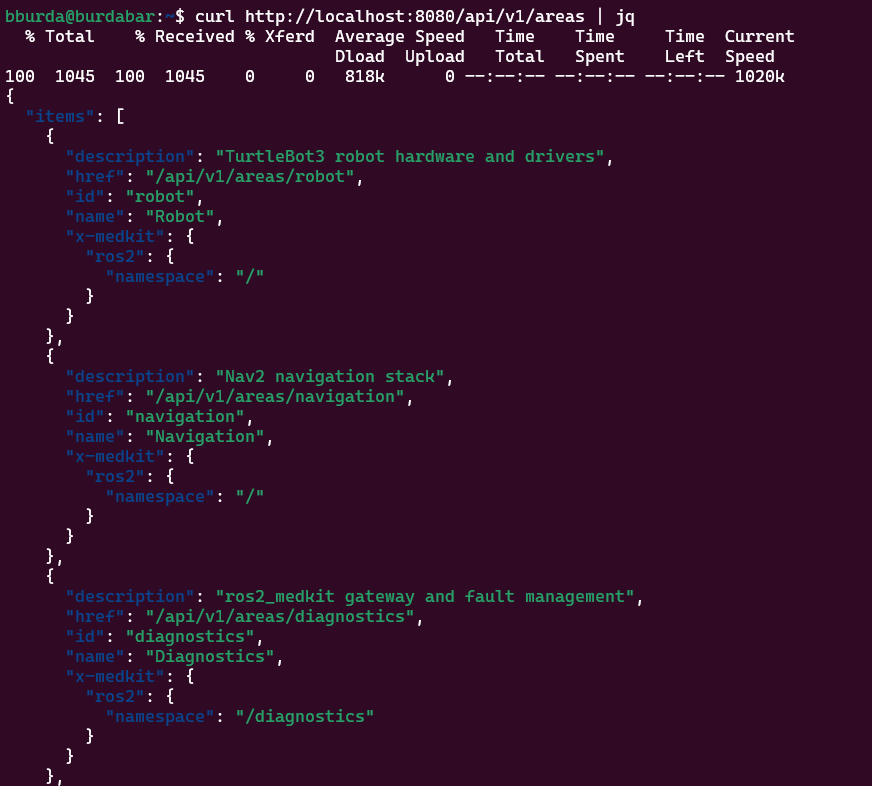

Areas response

Areas discovered from TurtleBot3 system.

Interactive API exploration:

# Run the interactive check script
./check-entities.sh

Reading Sensor Data

Navigate to an app in the web UI and explore the data folder to see published topics.

Query data via REST API:

# List all apps
curl http://localhost:8080/api/v1/apps | jq

# Get specific topic from AMCL localization
curl http://localhost:8080/api/v1/apps/amcl/data | jq

# Get specific topic from controller server
curl http://localhost:8080/api/v1/apps/controller-server/data | jq
Topic data view

Viewing topic data in the web UI.

Sending Navigation Goals

Use the provided script to send navigation goals:

# Send a navigation goal
./send-nav-goal.sh x y yaw

This sends a goal to Nav2 and monitors its progress through the gateway API.

You can also interact with the navigation stack via API:

# List operations on BT Navigator
curl http://localhost:8080/api/v1/apps/bt-navigator/operations | jq

# List operations on Controller Server
curl http://localhost:8080/api/v1/apps/controller-server/operations | jq

Managing Parameters

Click on the configurations folder in the web UI to see ROS 2 parameters.

View and modify parameters:

# List all configurations for AMCL
curl http://localhost:8080/api/v1/apps/amcl/configurations | jq

# Get specific parameter
curl http://localhost:8080/api/v1/apps/amcl/configurations/use_sim_time | jq

# Change parameter value
curl -X PUT http://localhost:8080/api/v1/apps/amcl/configurations/use_sim_time \
  -H "Content-Type: application/json" \
  -d '{"value": false}'

Fault Injection

The demo includes fault injection scripts to test diagnostic capabilities:

Available fault injection scripts:

# Inject localization failure
./inject-localization-failure.sh

# Inject navigation failure
./inject-nav-failure.sh

# Restore normal operation
./restore-normal.sh

View active faults:

# Check faults script
./check-faults.sh

# Or query via API
curl http://localhost:8080/api/v1/faults

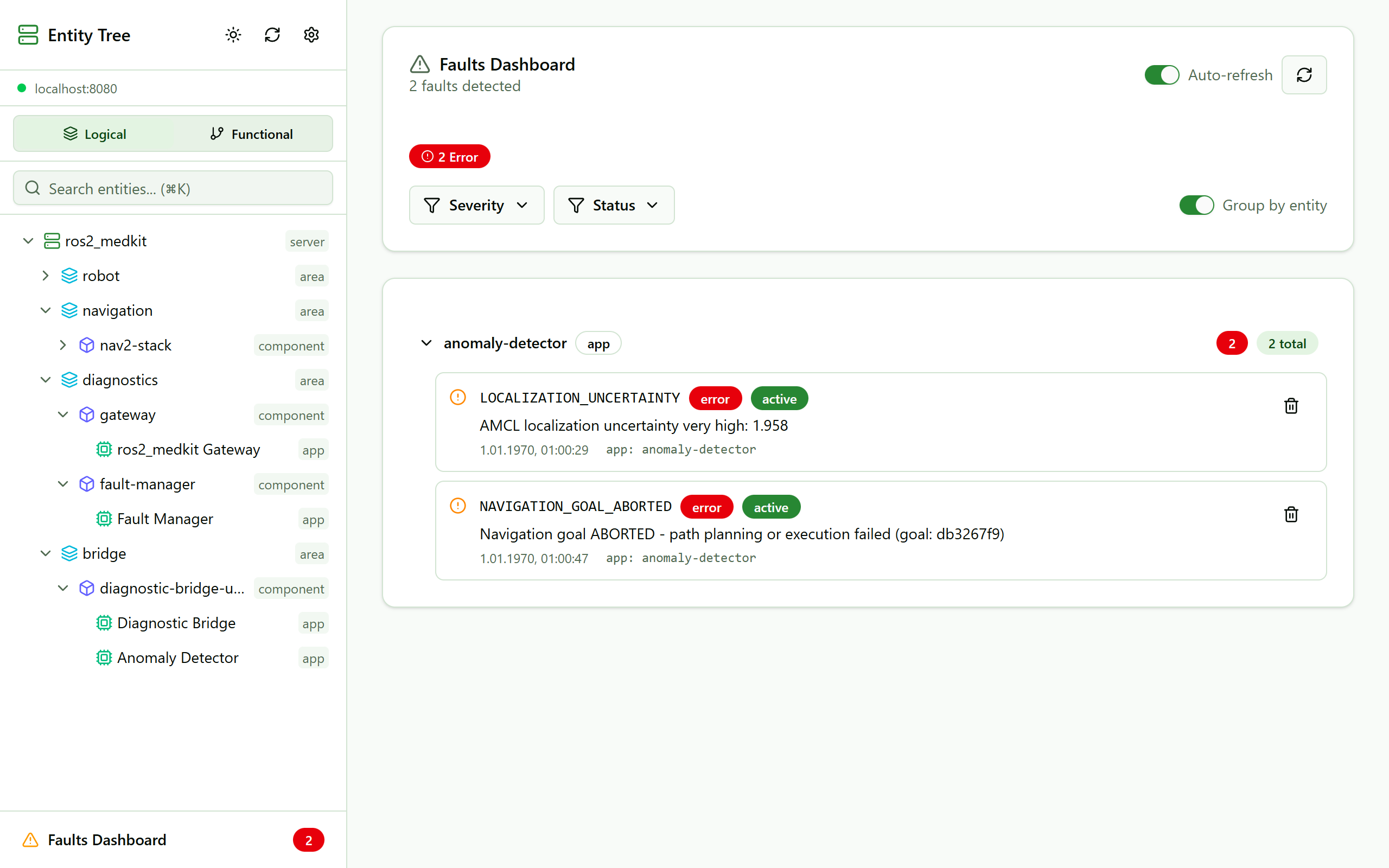

Faults dashboard

Dashboard showing active faults.

Faults in app view

Fault details in the entity view.

Stopping the Demo

To stop all services:

./stop-demo.sh
