ros2_medkit_fault_reporter

This section contains design documentation for the ros2_medkit_fault_reporter library.

Overview

The FaultReporter library provides a simple, reusable API for ROS 2 nodes to report faults to the central ros2_medkit_fault_manager. It includes optional local filtering to reduce noise from repeated fault occurrences.

Architecture

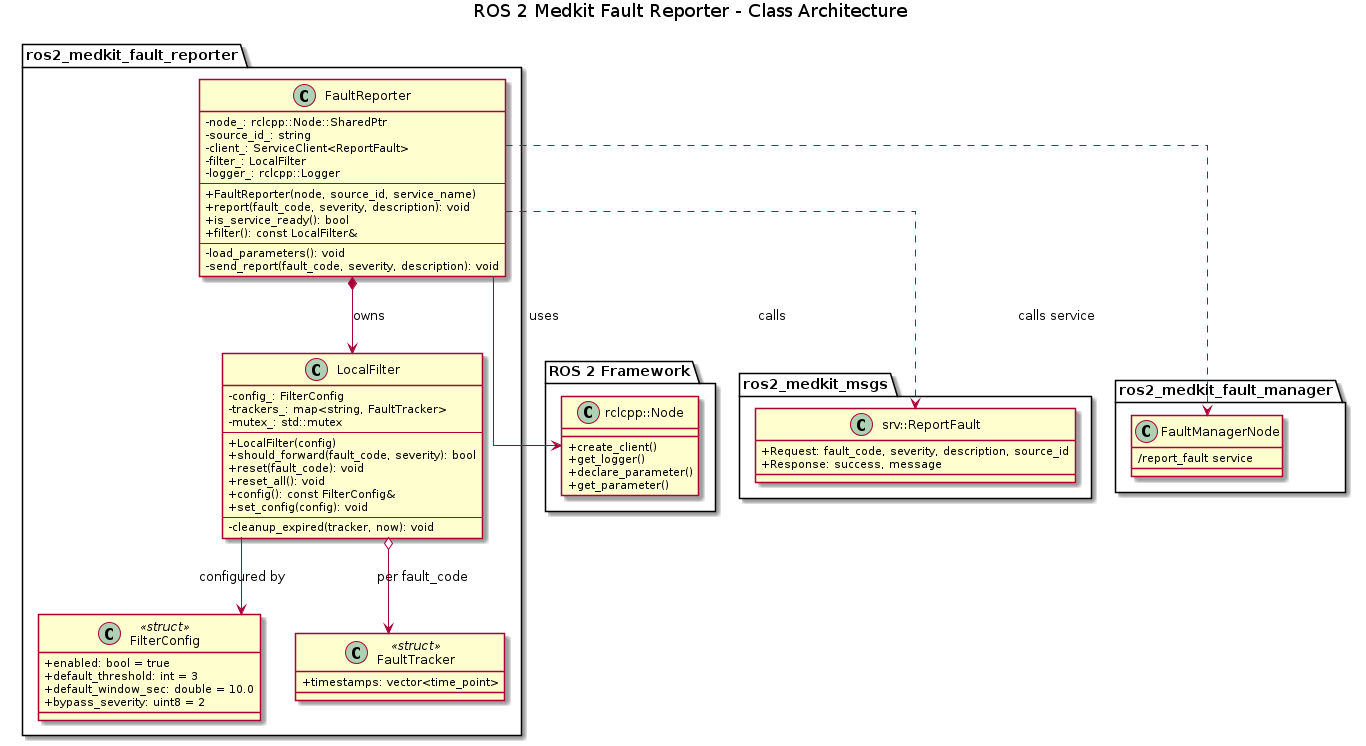

The following diagram shows the relationships between the main components.

ROS 2 Medkit Fault Reporter Class Architecture

Main Components

1. FaultReporter - The main public API for fault reporting

   • Takes a rclcpp::Node::SharedPtr and source_id in constructor

   • Creates a service client to /fault_manager/report_fault

   • Loads filter configuration from ROS parameters

   • Provides simple report(fault_code, severity, description) method

   • Integrates LocalFilter to reduce noise from repeated faults, through ReporterCore

   • Non-blocking service calls that are confirmed by the response and sent again when it does not come

2. LocalFilter - Per-fault-code filtering with threshold and time window

   • Tracks fault occurrences per fault_code

   • Only forwards to FaultManager when threshold is met within time window

   • High-severity faults (ERROR, CRITICAL) bypass filtering by default

   • Thread-safe: protected by mutex for concurrent access

   • Configurable via FilterConfig

3. FilterConfig - Configuration for local filtering behavior

   • enabled: Enable/disable filtering (default: true)

   • default_threshold: Number of reports before forwarding (default: 3)

   • default_window_sec: Time window in seconds (default: 10.0)

   • bypass_severity: Severity level that bypasses filtering (default: ERROR=2)

4. ReporterCore - ROS-free filtering and report building (core/reporter_core.hpp)

   • Owns the LocalFilter and a sink function that receives each FaultReport that passed

   • validate_filter_params() checks int64 parameter values before narrowing and replaces invalid ones

   • Built as the static library fault_reporter_core from cmake/fault_reporter_core.cmake (plain CMake, no ament); the neutral types come from ros2_medkit_fault_detection/fault_types.hpp

   • Everything in the core links only the header-only ros2_medkit_fault_detection; the ROS adapter (FaultReporter: parameters, ReportFault client) stays in fault_reporter_lib

5. FaultTracker - Internal state for per-fault-code tracking

   • Maintains vector of timestamps for recent reports

   • Expired timestamps are cleaned up on each should_forward() call

Usage

Basic Example

#include "ros2_medkit_fault_reporter/fault_reporter.hpp"

class MyNode : public rclcpp::Node {
 public:
  MyNode() : Node("my_node") {
    // Create reporter after node is fully constructed
    reporter_ = std::make_unique<ros2_medkit_fault_reporter::FaultReporter>(
        shared_from_this(), get_fully_qualified_name());
  }

  void check_sensor() {
    if (sensor_error_detected()) {
      reporter_->report("SENSOR_FAILURE",
                        ros2_medkit_msgs::msg::Fault::SEVERITY_ERROR,
                        "Sensor communication timeout");
    }
  }

 private:
  std::unique_ptr<ros2_medkit_fault_reporter::FaultReporter> reporter_;
};

Configuration

Parameters are loaded from the node’s parameter server:

my_node:
  ros__parameters:
    fault_reporter:
      local_filtering:
        enabled: true
        default_threshold: 3
        default_window_sec: 10.0
        bypass_severity: 2
      delivery:
        ack_timeout_sec: 0.5
        max_attempts: 10
        max_pending: 1024

Plain-CMake Build

cmake/fault_reporter_core.cmake builds the core with plain CMake (CMake 3.16, C++17, no ament) as the target fault_reporter_core. The ament build includes it, and so does scripts/check_cores_without_ros. The file finds fault_types.hpp at ../ros2_medkit_fault_detection/include, so the package directories must stay side by side. The target is not installed or exported, and the core needs no library besides the standard library. The ROS adapter passes a ReportSink that sends each report to the fault manager. The check passes a counting sink.

Design Decisions

Local Filtering Rationale

Local filtering is enabled by default to address common scenarios where sensors or subsystems may produce repeated fault reports in quick succession. Without filtering, this could flood the central FaultManager and obscure other issues.

The default threshold of 3 reports within 10 seconds balances:

• Noise reduction: Transient single occurrences are filtered out

• Responsiveness: Persistent issues are reported within seconds

• Safety: High-severity faults (ERROR, CRITICAL) bypass filtering entirely

Confirmed Delivery

report() never blocks the calling node. It queues the request and returns. A client can see the service as ready before the server has matched it, and a request sent in that gap is lost, so the reporter keeps each request until its response arrives. With no response within ack_timeout_sec it sends the request again, up to max_attempts requests. It then logs a warning that names the fault code and drops the report.

Per fault code the requests form a queue and only the front is in flight, so the manager receives the events of one code in the order they were reported. At most max_pending reports wait for a response, all codes together. A report past that is dropped with a warning. A report made while the service is not ready is dropped at once (DEBUG log, WARN for a high-severity FAILED).

Responses and retries are processed when the node is spun. Every constructor puts the retry timer on the node; without a timers interface it goes to the node’s default callback group. A retry is sent whether or not the service is ready and counts toward max_attempts, so a manager that restarts within the attempt budget receives the pending reports. If a request arrived and only its response was lost, the manager gets the event twice. A repeated FAILED counts toward the manager’s debounce.

A destroyed reporter leaves its pending reports to its delivery, which the ROS context holds until the last one is confirmed or dropped. When the context shuts down, each report still waiting is dropped with a warning that names its fault code.

Thread Safety

LocalFilter is protected by a mutex to support nodes that may call report() from multiple threads (e.g., different callback groups or timers). The service client from rclcpp is also thread-safe.

Integration with FaultManager

The FaultReporter is designed as a thin client to the FaultManager node:

• Decoupled: FaultReporter only depends on ros2_medkit_msgs and ros2_medkit_fault_detection, not the manager

• Lightweight: Nodes get simple API without pulling in server-side code

• Flexible: Service name is configurable for custom deployments
