ros2_medkit_fault_manager

This section contains design documentation for the ros2_medkit_fault_manager project.

Architecture

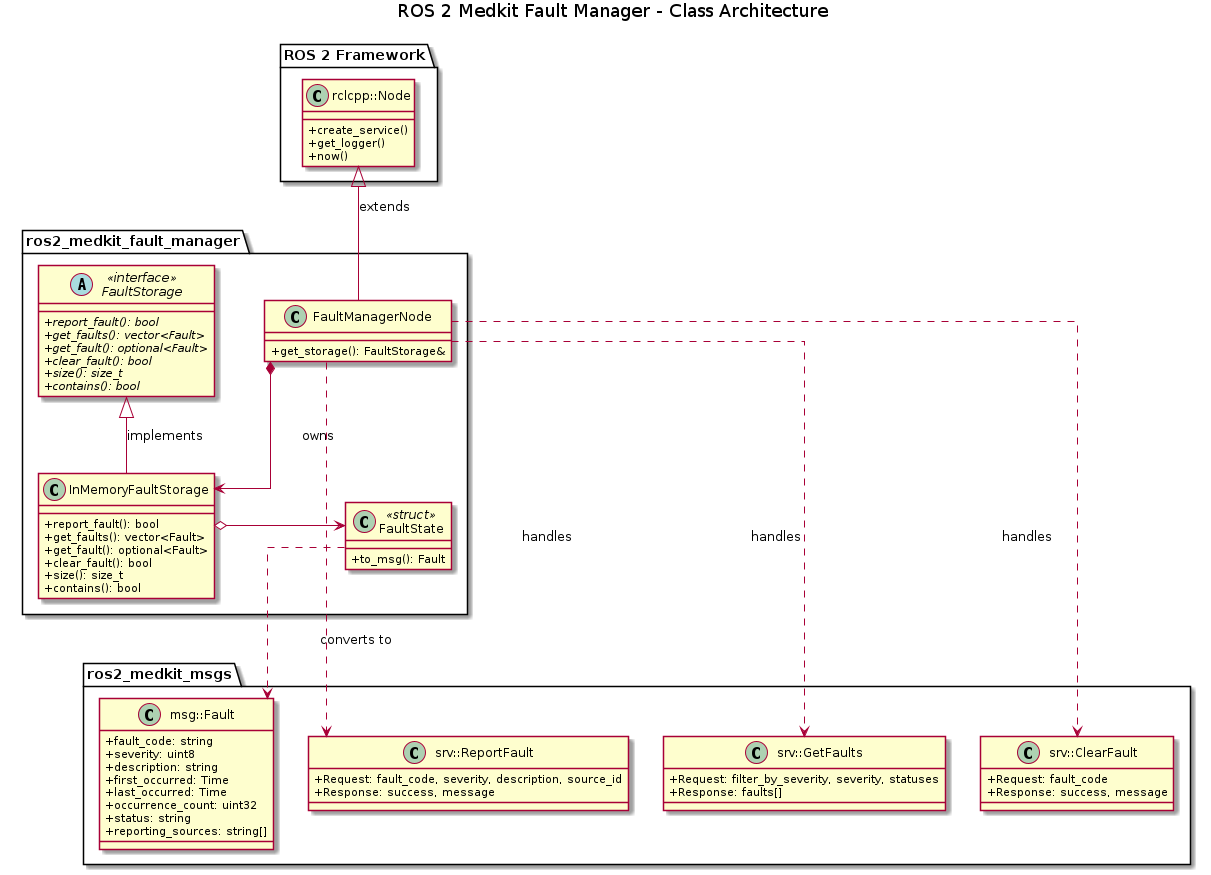

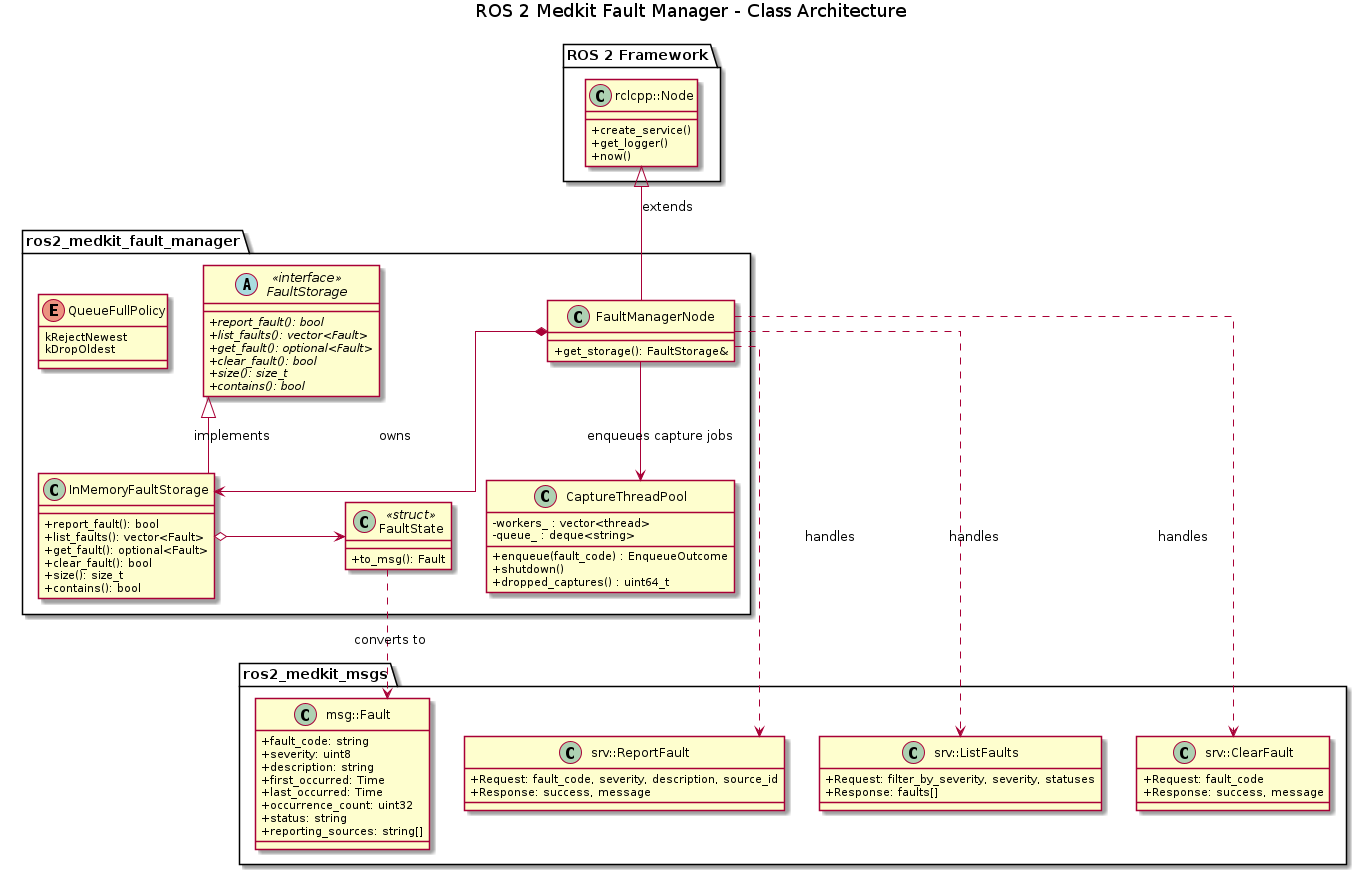

The following diagram shows the relationships between the main components of the fault manager.

Main Components

FaultManagerNode - The main ROS 2 node that provides fault management services - Extends rclcpp::Node - Owns a FaultStorage implementation for fault state persistence - Provides three ROS 2 services for fault reporting, querying, and clearing - Validates input parameters (fault_code, severity, source_id) - Logs fault lifecycle events at appropriate severity levels
FaultStorage - Abstract interface for fault storage backends - Defines the contract for fault storage implementations - Enables pluggable storage backends (in-memory, persistent, distributed) - Future implementations can be added in Issue #8: Fault Persistence Options
InMemoryFaultStorage - Thread-safe in-memory implementation of FaultStorage - Uses std::map keyed by fault_code for O(log n) lookups - Protected by std::mutex for concurrent service request handling - Aggregates reports from multiple sources into single fault entries - Implements severity escalation (higher severity overwrites lower) - Tracks occurrence counts and all reporting sources
FaultState - Internal representation of a fault entry - Maps directly to ros2_medkit_msgs::msg::Fault via to_msg() - Uses std::set for reporting_sources to ensure uniqueness - Tracks first and last occurrence timestamps - Manages fault status lifecycle with debounce (PREFAILED -> CONFIRMED -> CLEARED)
CaptureThreadPool - Bounded worker pool for snapshot capture Under a fault storm the node enqueues capture jobs into a bounded CaptureThreadPool (pool_size workers draining a queue_depth-bounded queue) rather than spawning one thread per fault. The full-queue policy (reject_newest/drop_oldest) bounds memory, and the destructor joins the pool before rosbag teardown.

Services

~/report_fault

Reports a new fault or updates an existing one.

Input validation: fault_code and source_id cannot be empty, event_type must be valid
Event types: FAILED (fault detected) or PASSED (fault condition cleared)
Debounce: FAILED events decrement counter, PASSED events increment counter
Aggregation: Same fault_code from different sources creates a single fault entry
Severity escalation: Fault severity is updated if a higher severity is reported
Returns: accepted=true if event was processed

~/list_faults

Queries faults with optional filtering.

Status filter: Filter by status (PREFAILED, PREPASSED, CONFIRMED, HEALED, CLEARED); defaults to CONFIRMED
Severity filter: When filter_by_severity=true, returns only faults of specified severity
Returns: List of Fault messages matching the filter criteria

~/clear_fault

Clears (acknowledges) a fault by setting its status to CLEARED.

Input validation: fault_code cannot be empty
Idempotent: Clearing an already-cleared fault succeeds
Returns: success=true if fault existed, success=false if not found

Design Decisions

Thread Safety

All FaultStorage public methods acquire a mutex lock to ensure thread safety when handling concurrent service requests. This is essential since ROS 2 service callbacks may execute on different threads.

Fault Aggregation

Multiple reports of the same fault_code (from same or different sources) are aggregated into a single fault entry. This provides:

Deduplication: Prevents fault flooding from repeated reports
Source tracking: Identifies all sources reporting the same fault
Occurrence counting: Tracks how many times a fault was reported

Severity Escalation

When a fault is re-reported with a higher severity, the stored severity is updated. This ensures the fault reflects the worst-case condition. Severity levels are ordered: INFO(0) < WARN(1) < ERROR(2) < CRITICAL(3).

Status Lifecycle (Debounce Model)

Faults follow an AUTOSAR DEM-style debounce lifecycle:

PREFAILED: Debounce counter < 0 but above confirmation threshold (fault trending towards confirmation)
PREPASSED: Debounce counter > 0 but below healing threshold (fault trending towards healing)
CONFIRMED: Debounce counter <= confirmation threshold (e.g., -3). Fault is active and verified.
HEALED: Debounce counter >= healing threshold (if healing enabled). Fault resolved by PASSED events.
CLEARED: Fault manually acknowledged via ClearFault service

FAILED events decrement the debounce counter (towards confirmation). PASSED events increment the debounce counter (towards healing). CRITICAL severity bypasses debounce and confirms immediately.

The counter is always clamped to [confirmation_threshold, healing_threshold] so a long run of one-sided events cannot push it out to the integer limits and delay the opposite transition.

CONFIRMED and HEALED are latched (hysteresis): once reached, the status holds until the counter walks all the way to the opposite threshold. So PREFAILED/PREPASSED depend on the counter sign, but a CONFIRMED or HEALED fault keeps its status while the counter is between the thresholds - a single opposite-direction event cannot flip it. One consequence is a re-confirmation delay: a fault that becomes active again is not back in the default (CONFIRMED-only) list until the counter has fallen by up to healing_threshold - confirmation_threshold events. During that window last_occurred still reflects the activity; occurrence_count does not, because it counts the edge that started the occurrence, not every report within it.

Thresholds must satisfy confirmation_threshold < 0 <= healing_threshold (healing_threshold == 0 means heal on a single PASSED event); the node validates the merged per-entity config at startup, logs a warning, and falls back to safe defaults if not. When healing is disabled, any HEALED row left by a previous (healing-enabled) run is reclassified to CLEARED once at startup so it does not behave inconsistently under the latch.

Rosbag Black-Box Recording

RosbagCapture is a single-writer black box: one ring buffer, one open bag writer and one post-fault window per fault manager. Everything below follows from that.

Subscriptions feed a std::deque of serialised messages, pruned to duration_sec of history and to max_buffer_mb of RAM. Pruning is driven by message arrival, not by a timer, and each arrival prunes the whole deque by age - so a single topic going quiet is pruned like anything else, while a system where everything goes quiet keeps its last window buffered rather than silently losing the final messages before it died.

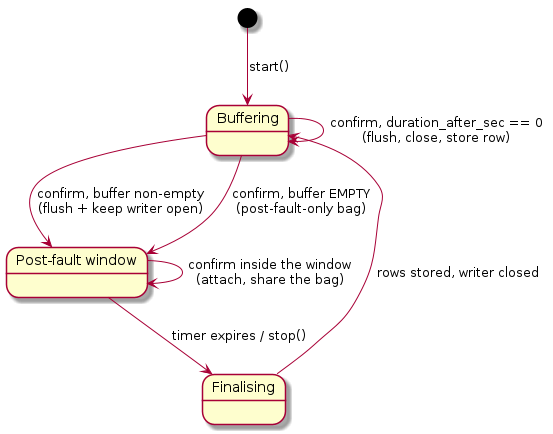

On confirmation the whole buffer is moved out in one step and written to a new bag. If duration_after_sec > 0 the writer stays open and the state machine enters the post-fault window: recording_post_fault_ is set, a one-shot timer is armed, and from that point incoming messages bypass the buffer and are written straight to the open bag. When the timer fires (or stop() runs first), the recording is finalised: the writer closes and one metadata row is stored per fault the recording covers.

The window boundary

The interesting transition is the second one. The branch is on the buffer, not on window history: a confirmation that finds nothing buffered opens a post-fault-only recording, whatever emptied the buffer.

Right after a window finalises the buffer is empty as far as the capture’s own message flow goes: the flush that opened the recording drained it, and every message published during the window went into that bag instead of back into the buffer. A fault confirming in that gap - typically the next fault of the same burst - therefore has no pre-fault history to write.

Two things qualify “empty”. A message arriving between the drain and the guard being published is still buffered, and more importantly the broad topic modes (all, auto, entity) subscribe to /fault_manager/events: reporting a fault publishes an event there, so on a real fault manager the act of reporting refills the buffer, and the boundary case belongs mainly to a narrowed capture - explicit, a topic list, config, or a broad mode excluding that topic. test_rosbag_boundary_scope.test.py excludes it for exactly this reason, and says so.

It is not the only one. A fault confirming before anything has been published on a captured topic - at startup, or with lazy_start - finds the same empty buffer and gets the same post-fault-only bag, with no window having closed beforehand.

Before, flush_to_bag() returned an empty path and the confirmation was abandoned with a warning: no bag, no metadata row, no retry, and every later retrieval for that fault failed permanently. Now the empty buffer is distinguished from a write failure, and it opens a recording anyway - a post-fault-only bag. Because it is the ordinary post-roll state machine, attachment, entity scoping, auto-cleanup and quota accounting all behave as for any other recording.

Two states stay deliberately empty-handed:

duration_after_sec == 0: there is no window to record into and no history to write, so the fault gets no bag.
an I/O failure (unwritable storage_path, unusable storage backend): no post-roll is opened on top of it, so no row is ever stored for a bag that does not exist.

flush_to_bag() reports kOk / kEmptyBuffer / kIoError rather than one overloaded empty-string return, and the writer-open block lives in open_bag_writer() so it can run without any buffered messages.

Handing a recording over

Confirmations run on the capture pool and the post-fault timer runs on the executor. The node-level rosbag mutex serialises confirmations against each other but not against the timer, so post_fault_timer_mutex_ is the only thing ordering the two - and clearing the recording guard is precisely the signal that lets the next confirmation open a bag of its own. Everything that belongs to the recording therefore changes hands inside one critical section: the guard, the start time and the writer. Releasing the guard first and reaching for writer_mutex_ afterwards leaves a gap in which the incoming confirmation installs its writer and the outgoing finalise then destroys it, after which the new recording writes through a null pointer - every message dropped - and still stores a row for the empty bag it produced. The writer is closed only after all three of post_fault_timer_mutex_, capture_topics_mutex_ and writer_mutex_ are released, once it is exclusively the finalise’s own, because flushing a bag is real I/O. It is not closed unsynchronised, though. It is closed under a different lock, and that lock exists for a reason that has nothing to do with this class’s state.

Closing a bag, and the lock that is not the data lock

~Writer can unload the storage plugin’s shared library and open() loads it, and the state both touch is process-global: class_loader keeps one registry of loaded libraries keyed by library path, so every writer of a given format shares one rcutils_shared_library_t no matter which thread, which RosbagCapture or which FaultManagerNode created it. A close racing an open puts two threads into dlclose on the same handle. The winner closes it and zeroes the struct; the loser’s dlclose reports “shared object not open” and then calls the now-null allocator.deallocate, and the process dies in rcutils_unload_shared_library with the instruction pointer at zero. Reproduced outside this package with threads doing nothing but open/close loops on one format: four threads x 200 iterations failed in 20 of 20 runs on mcap and in 20 of 20 on sqlite3, so it belongs to neither backend and to no single instance.

An instance member cannot serialise process-global state, so the lock is a file-scope plugin_mutex() in rosbag_capture.cpp, held across a writer’s construction, its open() and its destruction, on every path that has one: both finalise paths, discard_active_writer(), the destructor, and the storage-backend probe that every capture runs while it is being constructed. open() is inside the lock deliberately - the constructor reaches no loader, the open is what loads the plugin, and a lock around construction and destruction alone still let failures through. The mutex is leaked on purpose (a new std::mutex that is never deleted): a static mutex destroyed during static destruction, while another thread is closing a bag, reopens the very window it exists to close. With it, the same loops ran 0 failures in 112000 operations on each backend.

It is deliberately not writer_mutex_. That lock is taken by message_callback() for every message of a post-roll and by the flush loop for every buffered message, so charging a close to it would stall the capture’s own write path for the length of a flush plus a metadata.yaml write. Keeping the close off the data lock was the original design’s call, and the cost it avoided is real; what it left unpaid was safety. Measured on one workstation, single-threaded: a close costs about 0.37 ms for a bag with no messages (200 samples) and about 1.1 ms for one holding 256 MB, the ring buffer’s default RAM cap, split at the default 50 MB per file (12 samples). A recording opening at that moment waits behind that. The figure is small because closing flushes to the page cache and writes metadata.yaml; it does not fsync, so slow or synchronous storage will cost more.

The resulting order is node rosbag mutex -> post_fault_timer_mutex_ -> {capture_topics_mutex_, writer_mutex_} plus plugin_mutex() -> writer_mutex_, with buffer_mutex_ never held across another lock. plugin_mutex() is taken in three shapes: alone, to destroy a writer already moved out of active_writer_; alone, across a probe writer’s construction, open() and destruction in default_storage_probe(), which never touches active_writer_ at all; or as the outer of the pair in open_bag_writer(). No path takes it while holding a lock of this class. That is what fixes the shape every destruction site shares - move the writer out of active_writer_ under writer_mutex_, release writer_mutex_, then destroy under plugin_mutex(). Resetting in place under writer_mutex_ would add the reverse edge and deadlock against a concurrent open_bag_writer(). That cycle is reachable precisely because the close sits outside post_fault_timer_mutex_: a confirmation running at the same time is not held at the attach check, so it can be inside open_bag_writer() holding the plugin lock while the finalise holds writer_mutex_ and asks for it. Moving the close back inside post_fault_timer_mutex_ would remove the cycle and reintroduce the stall the design declines to pay for. Paths that take the capture-topics or writer locks on their own release each before taking the next, so no other reverse edge exists and the order is acyclic.

Honest durations

RosbagFileInfo::duration_sec is the span the recording was open, tracked from the timestamp of its oldest written message (or from the moment the writer opened, for a post-fault-only bag). Both storage paths used to hardcode the configured windows, which made a post-fault-only bag and a bag flushed from a half-filled buffer both claim a full pre-fault window.

The span is measured on the monotonic clock, not the wall clock that timestamps messages: a wall clock that steps backwards mid-window turns an elapsed time negative, and the duration is then reported as zero. Message ages necessarily start out as wall-clock differences, so a flush converts the history it found into a monotonic origin once and measures forward from there. That conversion is capped at how long the capture has been running - no bag can hold more history than that - because a clock step between buffering a message and flushing it would otherwise land in the figure in full.

Measurement stops when the writer leaves message_callback’s reach, inside the handover critical section. Closing the bag flushes it and writes metadata.yaml, and the size walk recurses the directory; both scale with the bag and the storage, and neither adds a message. Charging them to the recording would inflate a stored duration_sec without bound on slow storage.

It is a recording span, not a content span. A post-fault-only window during which nothing was published still reports its window: that statement is more useful to an operator than a zero indistinguishable from a broken artifact, and it is the only definition every path can produce without timestamping each message inside the post-roll write path, which runs under writer_mutex_ in the hot path. Because the buffer is pruned only on arrival, the span can also legitimately exceed duration_sec + duration_after_sec.

If the metadata row cannot be stored, the bag is discarded rather than kept: retrieval is keyed by fault code and quota accounting enumerates rows, so a bag with no row would occupy disk that nothing can find and nothing can evict.

Known interval: between the empty-buffer flush and the moment the recording guard is published, the writer is being created - directory creation plus a storage-backend open. Messages arriving in that interval take the buffering path rather than the new bag, so a post-fault-only recording can miss its first few milliseconds. They are not lost; they stay in the ring buffer and serve the next fault as pre-history.
