ros2_medkit_gateway

This section contains design documentation for the ros2_medkit_gateway project.

Architecture

Build Layers

The package compiles into two layered static libraries with a strict dependency direction:

• gateway_core - the ROS-free layer, defined in cmake/gateway_core.cmake. Sources: src/core/, the HTTP server and REST server, src/http/handlers/, src/openapi/, the plugin manager and loader, aggregation, and the script manager. Links only header-only and C-level externals (cpp-httplib, nlohmann/json, yaml-cpp, tl::expected, jwt-cpp, OpenSSL, SQLite, dl). Carries no rclcpp / rcl_interfaces / message-package dependency.

• gateway_ros2 - the ROS adapters. Compiles the remaining sources under src/ and links gateway_core publicly via medkit_target_dependencies. Hosts GatewayNode (the rclcpp::Node entry point), the ROS transports and providers, runtime discovery, the native topic sampler, and the plugin context.

cmake/gateway_core.cmake is plain CMake. The ament build includes it by path, and so does scripts/check_cores_without_ros, which links gateway_core. The file takes a target the including build already defines, else find_package, else the copy vendored in src/vendored/. The check implements GatewayServices with minimal stand-ins and starts RESTServer. A program that hosts the core names its server through RestConfig::server_name, vendor_name and server_version; the defaults are the ROS 2 node’s values. scripts/check_cores_without_ros/ builds and runs it on Ubuntu 20.04 with gcc 9, the oldest compiler the cores are checked with.

A program that hosts the core also gets the cyclic-subscription samplers and the bulk-data store from it:

• register_builtin_samplers(services) (core/builtin_samplers.hpp) registers data, faults, configurations and logs on services.sampler_registry(), plus updates when services.update_manager() is set. Each sampler reads through the managers and helpers of its GET route. data on a plugin-owned entity goes through the plugin’s DataProvider (core/data/data_item_reader.hpp, shared with GET /{entity}/data/{item}); on any other entity it goes through DataAccessManager and its TopicDataProvider. The host passes GatewayServices, which must outlive the samplers, and registers a subscription transport itself.

• BulkDataConfig (core/config.hpp) and make_bulk_data_store() (core/managers/bulk_data_store.hpp) build the store. The host returns it from GatewayServices::bulk_data_store() before it starts RESTServer. The rosbags category is listed only when FaultServiceTransport::serves_rosbags() is true (the default).

• make_freeze_frame_capture() (core/faults/freeze_frame_capture.hpp) builds a FreezeFrameCapture. On fault_confirmed it reads the data of each reporting source through plugin_data_readers() (core/data/data_item_reader.hpp, the path of GET /{entity}/data: the plugin’s DataProvider, else its x-plc-data route) on a thread of its own, keeps the frames up to FreezeFrameCaptureConfig::max_faults (oldest fault evicted first), and serves them as FreezeFrameSource. The host passes the config, a FaultEventSource and the PluginManager. A source serves several subscribers, each FaultEventSubscription ending only its own delivery, so the capture and the fault SSE stream can share the source the host returns from GatewayServices::fault_events(). The host also returns the capture from GatewayServices::freeze_frames(). The ROS 2 node feeds the same class through EntityFreezeFrameCapture, which owns its event source and the capture (built in that order, destroyed in reverse), subscribes on the shared subscription executor and holds the startup catch-up until the events subscription has matched a publisher.

• GET / reports bulk_data true only when a store exists or rosbags are served, and cyclic_subscriptions true only when a transport and at least one sampler are registered.

• LockReaper (core/managers/lock_reaper.hpp) removes expired locks every LockConfig::cleanup_interval seconds on a thread it owns, and with them the cyclic subscriptions of the locked entity when the lock scope is empty or names cyclic-subscriptions. A host that does not start one keeps expired locks. The ROS 2 node starts the same class.

• make_script_host (core/managers/script_manager.hpp) builds the ScriptManager from a ScriptsConfig and an optional plugin backend. A non-empty scripts_dir gives the DefaultScriptProvider. The host returns the manager from GatewayServices::script_manager().

• AggregationHost (core/aggregation/aggregation_host.hpp) builds the AggregationManager and the mDNS discovery from an AggregationConfig. The host passes the manager to RESTServer::set_aggregation_manager() and calls merge_peers() on every entity refresh. The ROS 2 node reads the aggregation.* parameters into the config and uses the same class.

• make_trigger_host (core/trigger_host.hpp) builds the trigger store and the TriggerManager from a TriggerHostConfig (the triggers.* names and defaults, plus data_poll_interval_ms), wires the entity lookups to the entity cache and restores persistent triggers. Fault triggers are fed by a TriggerFaultFeed that holds one FaultEventSubscription on a FaultEventSource, so it can share the source with the fault SSE stream and the freeze-frame capture. A data trigger with a known topic reads from the TopicSubscriptionTransport. Any other data trigger reads from a DataItemSource; PollingDataItemSource reads the item through read_plugin_data_item once per data_poll_interval_ms and delivers the data field of the item body, as a topic trigger sees the message, so a host whose data a plugin serves needs no topics. The ROS 2 node passes the topic transport and feeds fault triggers through TriggerFaultSubscriber, a ROS 2 event source under the same feed.

• make_core_plugin_context (core/plugins/core_plugin_context.hpp) builds the plugin context from GatewayServices and a CorePluginContextWiring (notifier, condition registry, aggregation, entity-change callback, notices). It is a RosPluginContext whose node() is null, so as_ros_plugin_context() is valid for every plugin and a plugin that needs ROS checks the pointer. The host gives it to PluginManager::set_context(). The ROS 2 node derives its context from the same class and overrides only node().

• make_fault_trigger_host (core/fault_trigger_host.hpp) builds the threshold-rule FaultTriggerEngine and the thread that evaluates it from a FaultTriggerHostConfig (the fault_triggers.* names and defaults). The rules read plugin data through the PluginManager and report and clear faults through the FaultManager. It returns null when disabled or when no plugin is loaded. The host returns the engine from GatewayServices::fault_trigger_engine(). The ROS 2 node uses the same builder.

• RESTServer takes a null LifecycleStateReader for a host without lifecycle nodes. GET /{entity}/status then derives readiness from presence and PUT /{entity}/status/{action} answers 501 without a LifecycleProvider.

The gateway_node executable and existing test targets link gateway_ros2, so they transitively get both layers from a single dependency. The neutral contract is enforced by two CTest checks:

• gateway_core_purity (linter label) - greps core/ for any ROS-package include and fails on any match.

• test_gateway_core_smoke (unit label) - compiles a translation unit including a sampling of core/ headers and links exclusively against gateway_core + GTest with no ament_target_dependencies. Build failure indicates a transitive ROS coupling that the grep guard might miss when an include is reached through a third-party header.

Class Diagram

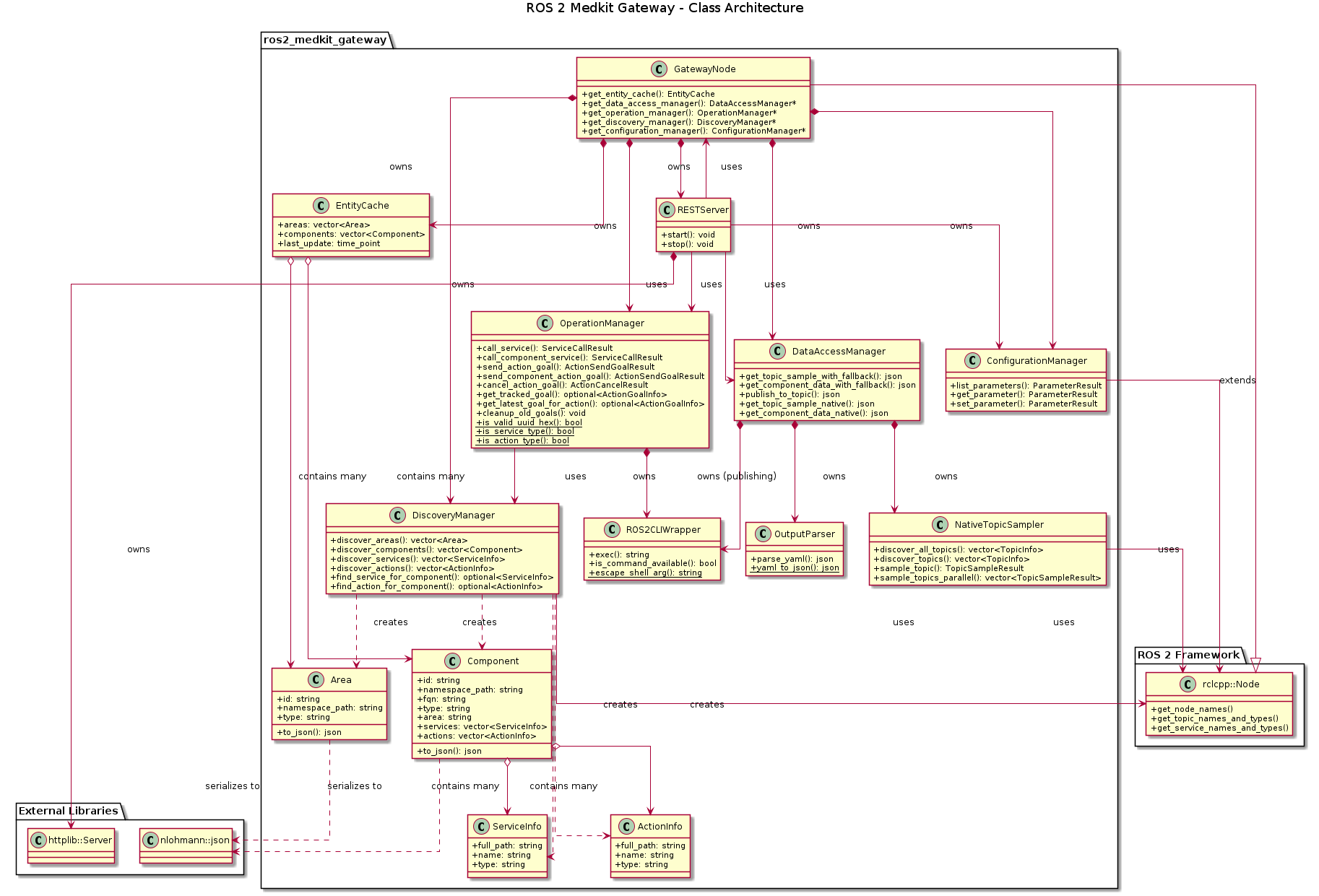

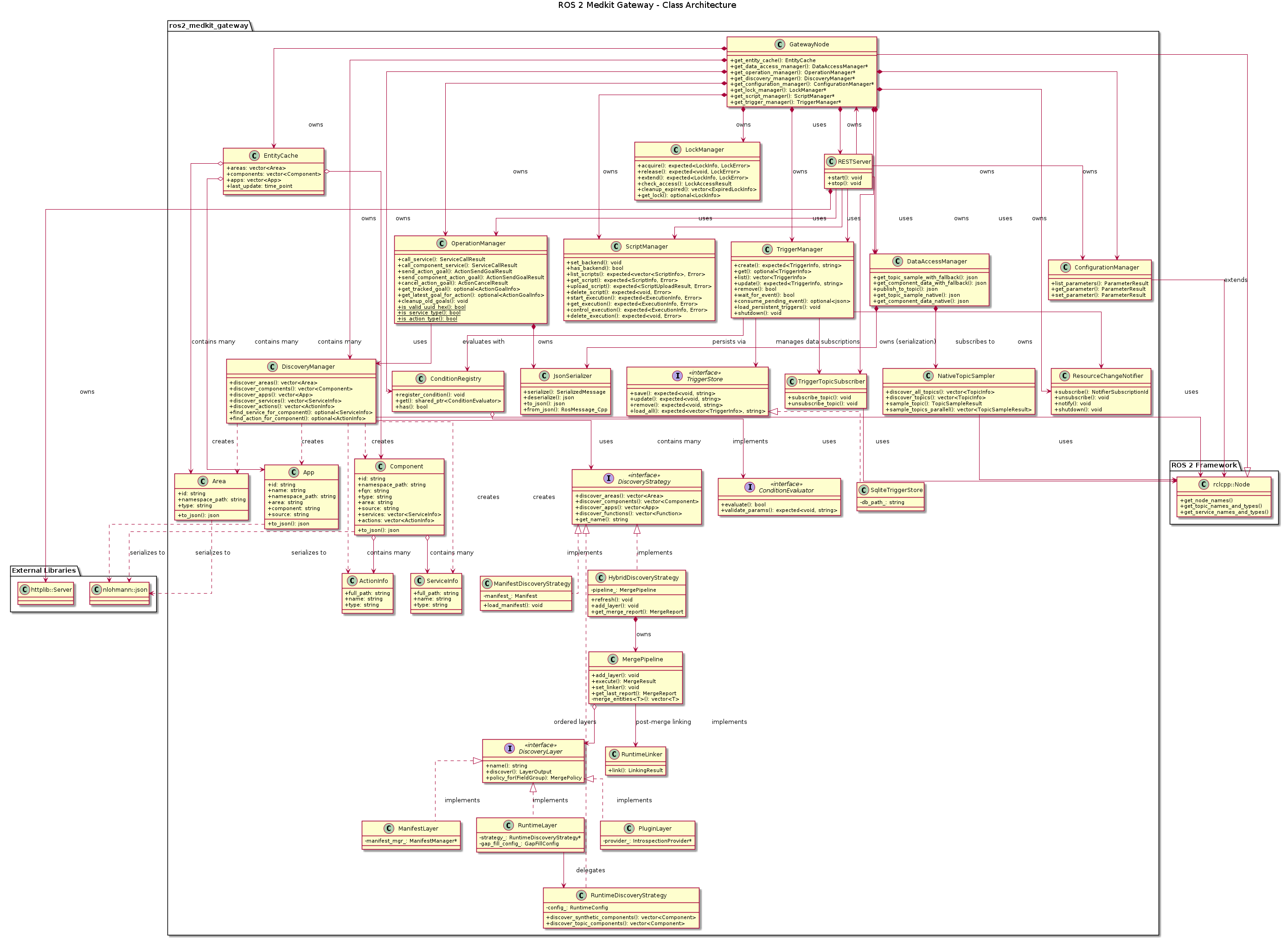

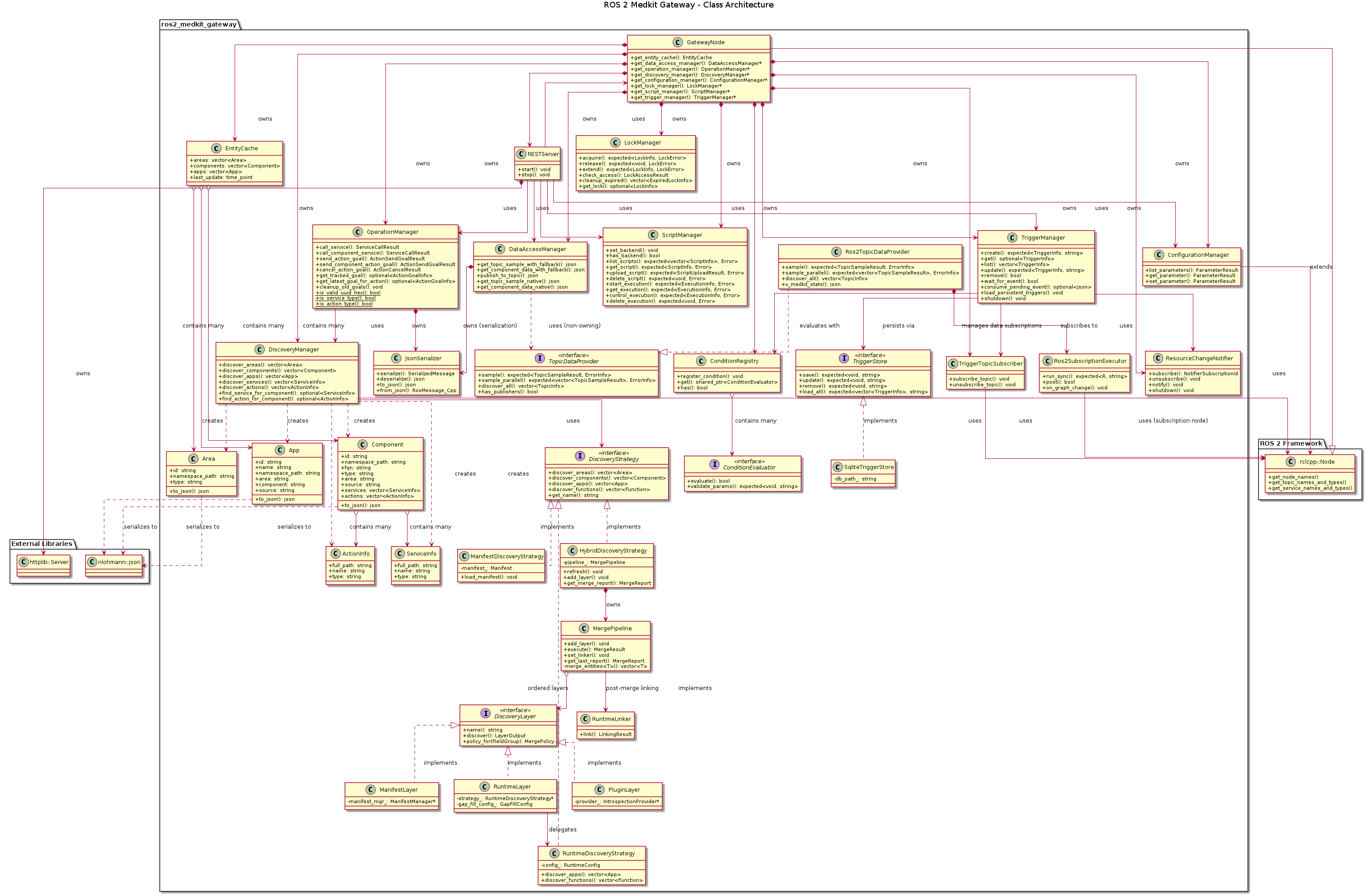

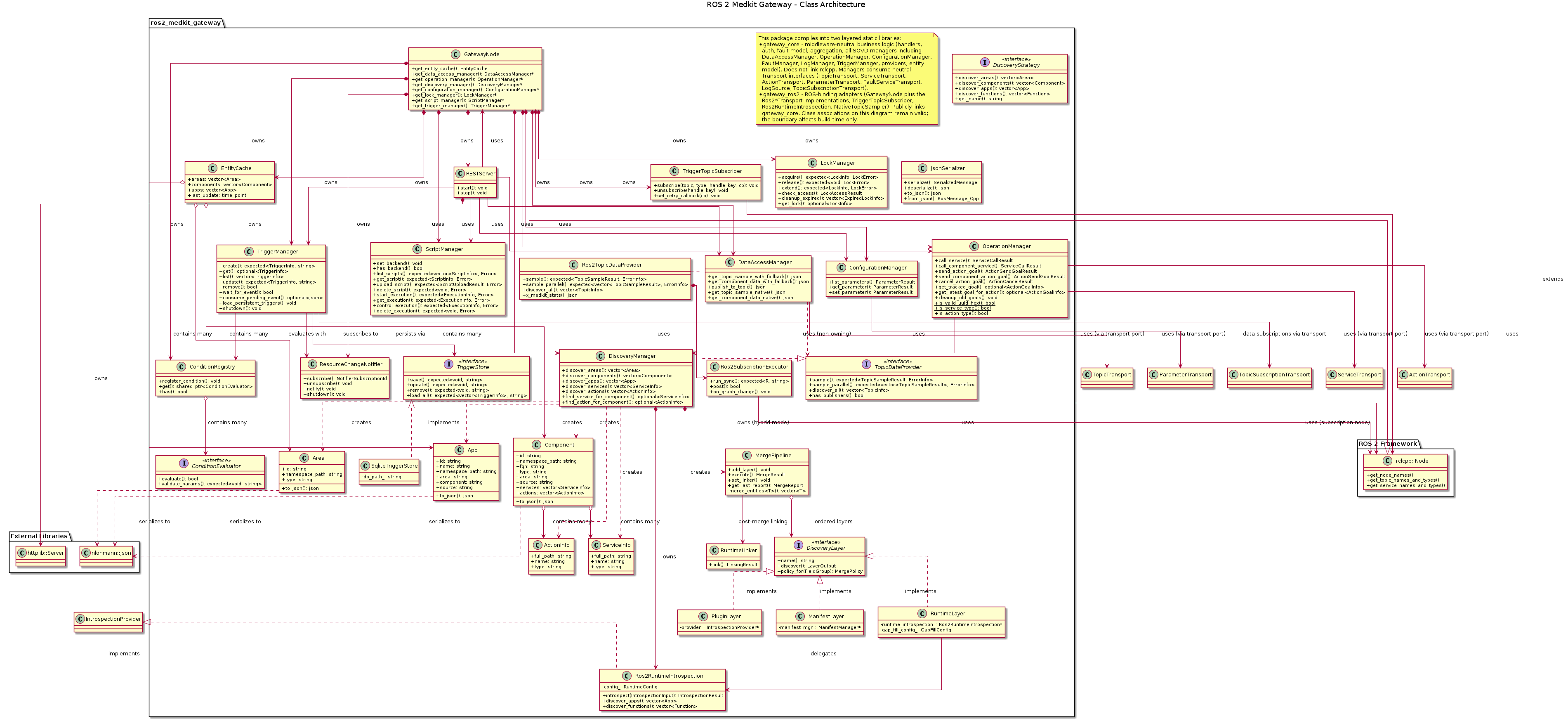

The following diagram shows the relationships between the main components of the gateway.

ROS 2 Medkit Gateway Class Architecture

Testing with Mock Transports

The Transport ports under core/transports/ are abstract interfaces. A manager unit test injects a mock implementation and links only against gateway_core + GTest, with no rclcpp on the link line. This is the pattern used by the test_*_manager_routing.cpp tests:

class MockTopicTransport : public TopicTransport {
 public:
  nlohmann::json publish(const std::string &, const std::string &,
                         const nlohmann::json &,
                         std::chrono::duration<double>) override {
    return nlohmann::json::object();
  }
  TopicSample sample(const std::string & topic,
                     std::chrono::duration<double>) override {
    TopicSample s;
    s.success = true;
    s.status = "data";
    s.topic = topic;
    s.data = next_sample_;
    return s;
  }
  std::pair<uint64_t, uint64_t>
  count_publishers_subscribers(const std::string &) const override {
    return {1, 0};
  }

  nlohmann::json next_sample_ = nlohmann::json::object();
};

TEST(DataAccessManagerRouting, ReadRoutesThroughTransport) {
  MockTopicTransport transport;
  transport.next_sample_["value"] = 42;
  DataAccessManager mgr(&transport, /* other neutral deps */);

  auto result = mgr.get_topic_sample_with_fallback("/sensor", "");
  ASSERT_EQ(result["data"]["value"], 42);
}

The mock is purely C++; no ROS context, executor, or domain ID is needed. Message, service and action schemas are not part of TopicTransport. They come from TypeSchemaProvider (core/types/type_schema_provider.hpp), which the HTTP layer reaches through GatewayServices::type_schemas().

Main Components

Each entry below is tagged with the static library it compiles into: [gateway_core] (middleware-neutral, no ROS dependency) or [gateway_ros2] (links rclcpp / message packages).

1. GatewayNode [gateway_ros2] - The main ROS 2 node that orchestrates the system - Extends rclcpp::Node - Manages periodic discovery and cache refresh - Runs the REST server in a separate thread - Provides thread-safe access to the entity cache - Manages periodic cleanup of old action goals (60s interval)

2. DiscoveryManager [gateway_ros2] - Discovers ROS 2 entities and maps them to the SOVD hierarchy - Discovers Areas from node namespaces or manifest definitions - Discovers Components (synthetic groups from runtime, or explicit from manifest) - Discovers Apps from ROS 2 nodes (individual running processes) - Discovers Services and Actions using native rclcpp APIs - Attaches operations (services/actions) to their parent Apps and Components - Routes built-in graph queries through the same IntrospectionProvider chain used by plugins - Uses O(n+m) algorithm with hash maps for efficient service/action attachment

   Discovery providers and layers:

   • Ros2RuntimeIntrospection [gateway_ros2] - IntrospectionProvider wrapping ROS 2 graph queries - Maps nodes to Apps with source: "heuristic" - Creates Functions from namespace grouping - Never creates Areas or Components (those come from manifest/HostInfoProvider) - Same interface as plugin-provided IntrospectionProviders, so the merge pipeline treats built-in graph queries identically to plugin contributions

   • ManifestLayer [gateway_core] - Static layer fed by ManifestManager - Provides stable, semantic entity IDs from declarative YAML - Supports offline detection of failed components - manifest_only mode bypasses the merge pipeline and routes directly through ManifestManager

   • Hybrid mode (DiscoveryManager + MergePipeline) - Combines manifest + runtime + plugins - DiscoveryManager constructs a MergePipeline with the configured layers - Supports dynamic plugin layers added at runtime via add_plugin_layer() - Thread-safe: a mutex protects the cached merged result, all reads return by value

   Merge Pipeline:

   The MergePipeline is the core engine for hybrid discovery. It:

   • Maintains an ordered list of DiscoveryLayer instances (first = highest priority)

   • Executes all layers, collects entities by ID, and merges them per-field-group

   • Each layer declares a MergePolicy per FieldGroup: AUTHORITATIVE (wins), ENRICHMENT (fills empty), FALLBACK (last resort)

   • Runs RuntimeLinker post-merge to bind manifest apps to live ROS 2 nodes

   • Suppresses runtime-origin entities that duplicate manifest entities: components/areas by namespace match, apps by ID match (gap-fill apps in uncovered namespaces survive)

   • Produces a MergeReport with conflict diagnostics, enrichment counts, and ID collision detection

   Built-in Layers:

   • ManifestLayer - Wraps ManifestManager; IDENTITY/HIERARCHY/METADATA are AUTHORITATIVE, LIVE_DATA is ENRICHMENT (runtime wins for topics/services), STATUS is FALLBACK

   • RuntimeLayer - Wraps Ros2RuntimeIntrospection; LIVE_DATA/STATUS are AUTHORITATIVE, METADATA is ENRICHMENT, IDENTITY/HIERARCHY are FALLBACK. Supports GapFillConfig to control which heuristic entities are allowed when manifest is present

   • PluginLayer - Wraps IntrospectionProvider; all fields ENRICHMENT (plugins enrich, they don’t override). Before each layer’s discover() call, the pipeline populates IntrospectionInput with entities from all previous layers, so plugins see the current manifest + runtime entity set

3. OperationManager [gateway_core] - Routes SOVD operation execution through ServiceTransport and ActionTransport ports - Manager body is middleware-neutral; Ros2ServiceTransport and Ros2ActionTransport adapters perform the actual rclcpp::GenericClient / action-client calls - Tracks active action goals with status, feedback, and timestamps - Subscribes to /_action/status topics via the action transport for real-time goal status updates - Supports goal cancellation via the action transport’s cancel path - Supports SOVD capability-based control (stop maps to ROS 2 cancel) - Automatically cleans up completed goals older than 5 minutes - JSON ↔ ROS 2 message conversion is performed inside the ROS-side transport adapter via ros2_medkit_serialization

4. RESTServer [gateway_core] - Provides the HTTP/REST API (route table couples to gateway lifecycle; the individual handlers it dispatches to live in gateway_core) - Discovery endpoints: /health, /areas, /components - Data endpoints: /components/{id}/data, /components/{id}/data/{topic} - Operations endpoints: /apps/{id}/operations, /apps/{id}/operations/{op}/executions - Configurations endpoints: /apps/{id}/configurations, /apps/{id}/configurations/{param} - Scripts endpoints: /{entity_type}/{id}/scripts, /{entity_type}/{id}/scripts/{script_id}/executions - Retrieves cached entities from the GatewayNode - Uses DataAccessManager for runtime topic data access - Uses OperationManager for service/action execution - Uses ConfigurationManager for parameter CRUD operations - Uses ScriptManager for script upload and execution - Runs on configurable host and port with CORS support

5. ConfigurationManager [gateway_core] - Routes SOVD configuration CRUD through ParameterTransport - Manager body is middleware-neutral; Ros2ParameterTransport adapter performs the rclcpp::AsyncParametersClient calls (explicit spin_until_future_complete so a service TIMEOUT is distinguished from a successful-but-empty response) - Lists / gets / sets individual parameter values with type conversion - Provides parameter descriptors (description, constraints, read-only flag) - The transport caches parameter clients per node for efficiency - JSON ↔ ROS 2 parameter conversion happens inside the transport adapter

6. DataAccessManager [gateway_core] - Routes SOVD data read/write through TopicTransport - Manager body is middleware-neutral; Ros2TopicTransport adapter performs rclcpp::GenericPublisher-backed publishing and CDR serialization - Delegates topic sampling to the attached TopicDataProvider (pool-backed, race-free) - Checks publisher counts before sampling to skip idle topics instantly - Returns metadata (type, schema) for topics without publishers - Returns topic data as JSON with metadata (topic name, timestamp, type info) - Parallel topic sampling with configurable concurrency limit (data_provider.max_parallel_samples on the TopicDataProvider, default: 8)

7. TopicDataProvider / Ros2TopicDataProvider [gateway_core / gateway_ros2] - The interface lives in the neutral layer (core/providers/data_provider.hpp); the pool-backed ROS 2 default implementation lives in the adapter layer - TopicDataProvider is a pure C++ interface consumed by HTTP handlers and managers, with no rclcpp headers required on the consumer side - Ros2TopicDataProvider keeps one shared subscription per topic and serves many sample calls from the cached latest message, avoiding the rcl hash-map race that short-lived per-sample subscriptions used to trigger - All subscription / callback-group creation and destruction runs on Ros2SubscriptionExecutor’s single worker thread - LRU cap, idle safety-net sweep, graph-change eviction, cold-wait cap for cpp-httplib liveness, and publisher-matching QoS (reliable / transient_local) - Exposes pool + executor stats on GET /health under the x-medkit-subscription-executor and x-medkit-data-provider vendor-extension keys - See ROS 2 Subscription Architecture for the full design

8. JsonSerializer (ros2_medkit_serialization) - Converts between JSON and ROS 2 messages (separate package, not part of the gateway layer split) - Uses dynmsg library for dynamic type introspection - Serializes JSON to CDR format for publishing via serialize() - Deserializes CDR to JSON for subscriptions via deserialize() - Converts between deserialized ROS 2 messages and JSON via to_json() / from_json() - Provides static yaml_to_json() utility for YAML to JSON conversion - Thread-safe and stateless design

9. LockManager [gateway_core] - SOVD resource locking (ISO 17978-3, Section 7.17)

   • Transport-agnostic lock store with shared_mutex for thread safety

   • Acquire, release, extend locks on components and apps

   • Scoped locks restrict protection to specific resource collections

   • Lazy parent propagation (lock on component protects child apps)

   • Lock-required enforcement via per-entity required_scopes config

   • Automatic expiry with cyclic subscription cleanup

   • Plugin access via PluginContext::check_lock/acquire_lock/release_lock

10. Data Models [gateway_core] - Entity representations - Area - Physical or logical domain (namespace grouping) - Component - Logical grouping of Apps; can be synthetic (auto-created from namespace), topic (from topic-only namespace), or manifest (explicitly defined) - App - Software application (ROS 2 node); individual running process linked to parent Component - ServiceInfo - Service metadata (path, name, type) - ActionInfo - Action metadata (path, name, type) - EntityCache - Thread-safe cache of discovered entities (areas, components, apps)

11. ScriptManager [gateway_core] - Manages diagnostic script upload, storage, and execution (SOVD 7.15) - Delegates to a pluggable ScriptProvider backend (set via set_backend()) - Lists, uploads, and deletes scripts per entity - Starts script executions as POSIX subprocesses with timeout support - Tracks execution status (prepared, running, completed, failed, terminated) - Supports termination via stop (SIGTERM) and forced_termination (SIGKILL) - Built-in DefaultScriptProvider handles filesystem storage and manifest-defined scripts - Supports concurrent execution limits and per-script timeout configuration

Triggers

The trigger subsystem implements SOVD condition-based resource change notifications. It consists of five main components:

1. TriggerManager [gateway_core] - Central coordinator for trigger lifecycle (CRUD), condition evaluation, and event dispatch.

   • Subscribes to ResourceChangeNotifier for resource change events

   • Evaluates conditions using registered ConditionEvaluator instances via the ConditionRegistry

   • Uses O(1) dispatch indexing by {collection, entity_id} for efficient notification matching

   • Supports entity hierarchy matching (area-level triggers catch descendant changes)

   • Manages pending events for SSE stream pickup with per-trigger mutexes

   • Persists triggers via the TriggerStore interface

   • Data-trigger ROS subscriptions are routed through TopicSubscriptionTransport (Ros2TopicSubscriptionTransport adapter wraps TriggerTopicSubscriber)

2. ResourceChangeNotifier [gateway_core] - Async notification hub for resource changes.

   • Producers (FaultManager, DataAccessManager, UpdateManager, OperationManager, LogManager) call notify()

   • Observers (TriggerManager) register callbacks with filters

   • notify() is non-blocking - pushes to an internal queue processed by a dedicated worker thread

   • Filters support collection, entity_id, and resource_path matching

   • unsubscribe(id) from another thread returns once that callback is not running, and the callback is never called again, so an observer can be destroyed right after it unsubscribes. From inside a notifier callback it returns at once, the current invocation continues, and the callback is not called again after it returns.

   • Teardown contract: producers hold a non-owning ResourceChangeNotifier *, so every producer must be quiesced before the notifier is destroyed. notify()’s internal drain guard only protects calls that are already in progress - it cannot help a call that starts after the object is freed. Most producers notify from executor callbacks, which have already stopped by the time ~GatewayNode runs. UpdateManager is the exception: its prepare/execute tasks run on their own std::async threads and notify after the backend returns, so ~GatewayNode calls UpdateManager::shutdown() (step 4b) to join them before step 5 shuts the notifier down. Relying on member declaration order alone is not sufficient - update_mgr_ is declared before resource_change_notifier_, so reverse destruction frees the notifier first.

3. ConditionRegistry [gateway_core] - Thread-safe registry for condition evaluators.

   • Built-in SOVD types: OnChange, OnChangeTo, EnterRange, LeaveRange

   • Plugins register custom evaluators with x- prefixed names

   • Uses shared_mutex for concurrent read access during evaluation

4. TriggerStore / SqliteTriggerStore [gateway_core] - Persistence backend for triggers.

   • Abstract TriggerStore interface allows plugin-provided backends

   • Default SqliteTriggerStore uses SQLite for persistent triggers

   • Stores trigger metadata, condition parameters, and evaluator state (previous values)

   • Supports partial updates for status changes and lifetime extensions

5. TriggerTopicSubscriber [gateway_ros2] - Generic per-handle subscription executor for data triggers.

   • Creates one rclcpp::GenericSubscription per handle_key provided by the caller

   • Each trigger owns its own subscription handle - no reference-counting across triggers

   • Wrapped by Ros2TopicSubscriptionTransport, which exposes the neutral TopicSubscriptionTransport interface to TriggerManager

   • Subscription lifetime is tied to the trigger entry: removing the trigger drops the handle and tears down the underlying subscription

   • Per-handle callbacks publish samples back to ResourceChangeNotifier for condition evaluation

Additional Design Documents

• Multi-Instance Aggregation
• DTO Contract Layer
• Entity Cache Architecture
• Gateway hardening (secure field profile)
• Status and Lifecycle Endpoints
• OpenAPI Derivation - The Rule and the Tiers
• Plugin-Driven Entity Surface Notifications (Plugin API v7)
• ROS 2 Subscription Architecture
