Multi-Instance Aggregation

This document describes the design of multi-instance peer aggregation in ros2_medkit_gateway. It covers the entity model changes (SOVD alignment), entity merge logic, request routing, and mDNS-based auto-discovery.

Overview

A single ros2_medkit_gateway instance discovers and serves the ROS 2 entities on its local machine. In production systems, robots often run multiple processes across several hosts, containers, or network segments. Multi-instance aggregation allows a primary gateway to transparently merge entities from one or more peer gateways into a single unified API. Clients see one entity tree and do not need to know which gateway owns which entity.

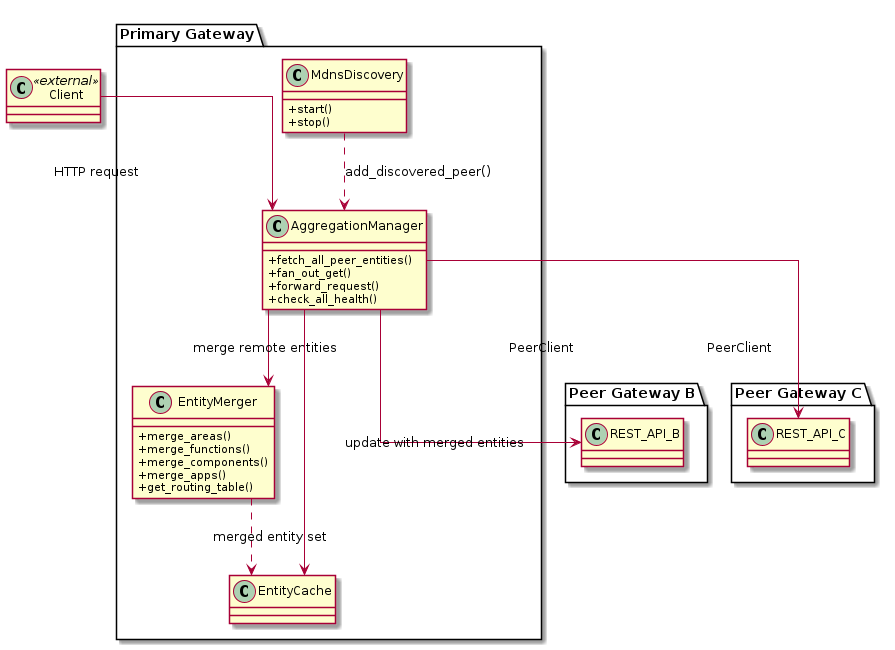

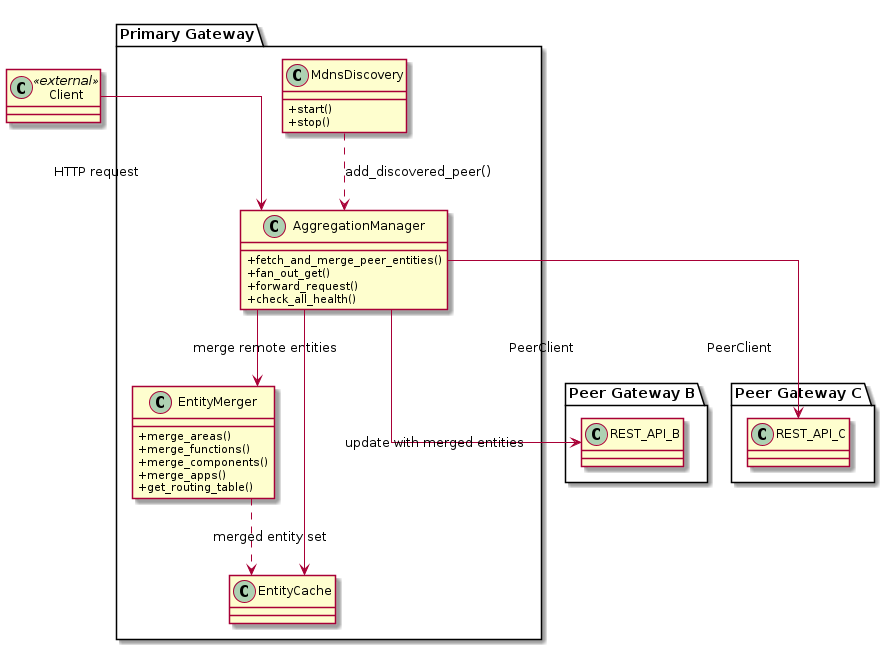

Multi-Instance Aggregation - High-Level Architecture

Entity Model (SOVD Alignment)

Prior to this feature, the gateway used only Areas, Components, and Apps as entity types. The SOVD spec (ISO 17978) defines a richer hierarchy where Components represent physical hardware (ECUs, hosts) and Functions represent logical capabilities. This feature aligns the entity model:

• Area - Physical or logical domain. Manifest-defined only (never auto-generated from namespaces).

• Component - Physical host or ECU. In runtime-only mode, the gateway creates a single Component from the local hostname using HostInfoProvider. All Apps discovered on that host are children of this Component.

• App - Individual ROS 2 node (unchanged).

• Function - Logical capability grouping. In runtime-only mode, each ROS 2 namespace becomes a Function entity, grouping the Apps that share that namespace. In manifest mode, Functions are explicitly declared.

This mapping aligns with the SOVD view where a Component is “what hosts the software” and a Function is “what the software does”.

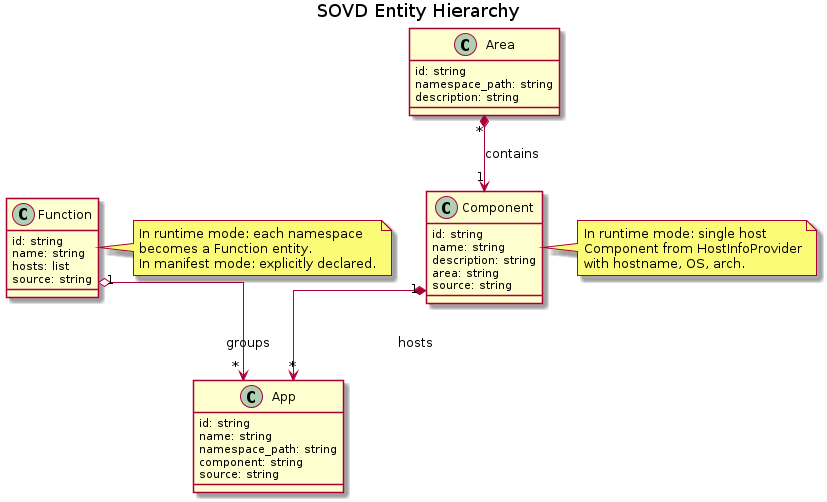

SOVD Entity Model Alignment

HostInfoProvider

HostInfoProvider reads local system information (hostname, OS from /etc/os-release, CPU architecture from uname) and creates a single Component entity representing the physical host. The Component ID is the sanitized hostname (lowercase, dots replaced with underscores, truncated to 256 characters).

This replaces the old “synthetic component per namespace” behavior in runtime-only discovery mode. The single host Component gives the entity tree a physically meaningful root, and namespace-based grouping is handled by Function entities instead.

Resource Collections on Functions and Areas

Functions and Areas expose the aggregating subset of the collections Components and Apps expose:

• data - Aggregated topic data from all hosted entities

• operations - Aggregated services and actions from hosted entities

• configurations - Aggregated parameters from hosted entities

• faults - Aggregated faults from hosted entities

• logs - Aggregated log entries from hosted entities

They do not expose locks or scripts (components and apps only), nor fault-triggers (apps only); Areas additionally have no cyclic-subscriptions. What each entity type serves - and therefore what it advertises in its capabilities array - is the matrix in SOVD Compliance.

Requests to /functions/{id}/data are fan-out queries that collect data from all entities listed in the Function’s hosts field. Similarly, Area resource collection requests aggregate from all Components contained in that Area.

Entity Merge Logic

When entities arrive from a peer gateway, the EntityMerger applies type-specific merge rules:

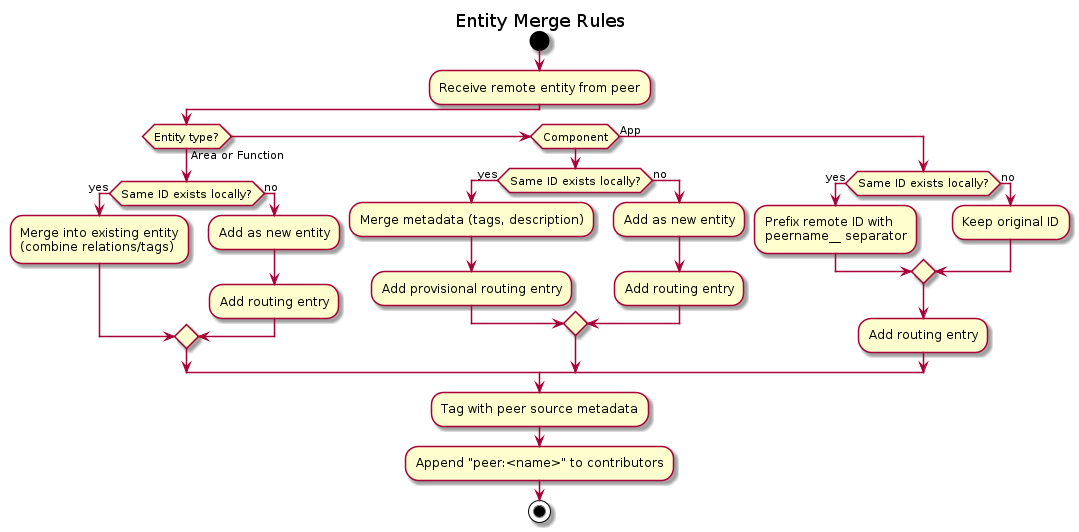

Entity Merge Logic by Type

After every peer has been merged, AggregationManager runs a classification pass over the full Component set:

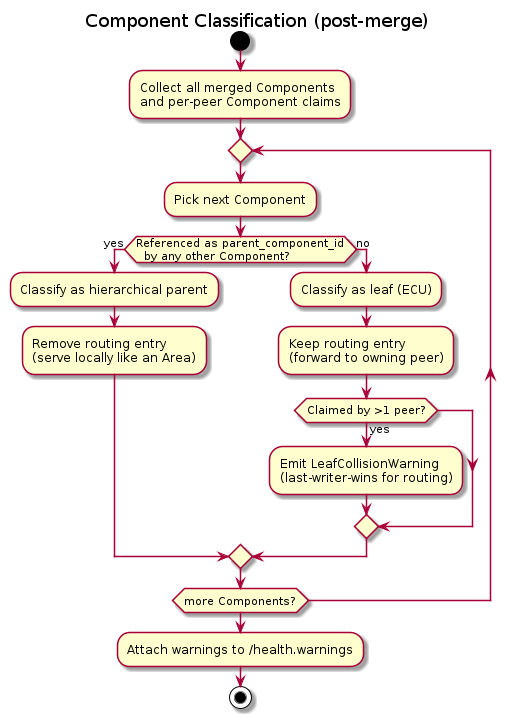

Component Classification (post-merge)

Merge rules summary:

• Areas: Merge by ID. If both local and remote have the same Area ID (e.g., root), they are combined into one entity. Remote-only Areas are added with source: "peer:<name>". No routing table entry is created for merged Areas because the local gateway owns the merged entity.

• Functions: Merge by ID, combining the hosts lists from both sides. If both gateways expose a navigation Function, the merged entity lists hosts from both gateways. Same ownership semantics as Areas.

• Components: Merge by ID, combining tags and metadata. Components represent either a single physical ECU or a hierarchical parent that groups other Components across ECUs (parent_component_id is used to model the hierarchy). The ownership rule is applied symmetrically to how Areas handle shared roots:

  • Leaf Component - no other Component in the merged set references it as parent_component_id. Leaves are tied to exactly one ECU, so on collision the peer owns the runtime state (data, logs, hosts, operations, faults). Leaves get a routing table entry and every request - detail endpoint and all sub-resources - is forwarded to the peer.

  • Hierarchical parent Component - referenced as parent_component_id by at least one other Component in the merged set (local, remote, or transitively merged from any peer). The parent itself has no runtime state; it only groups its children. The parent is served locally with the merged view (tags/description/contributors combined) exactly like an Area. No routing table entry is created for a hierarchical parent, even when multiple peers announce it.

  Classification happens after all peers have been merged (classify_component_routing in aggregation/classification.hpp) so that sub-components arriving from different peers still unlock parent behaviour on the primary.

  Multi-peer leaf collisions (two or more peers announce the same leaf Component ID) are surfaced as structured /health.warnings entries and RCLCPP_WARN log lines. Routing falls back to last-writer-wins; rejection would not fix the deployment and would only take the gateway offline.

  Cross-snapshot instability under peer churn. The “last writer” in last-writer-wins is determined by the order of healthy peers in the merge snapshot (aggregation_manager.cpp iterates peers_ and filters via is_healthy()). Two consequences operators should plan around:

  • If a colliding peer goes unhealthy between merges, it drops out of the snapshot. The remaining peer becomes the new last-writer and routing silently flips to it. The request itself cannot fail (the dead peer cannot serve it), so this flip is required behaviour - but the /health.warnings entry also disappears (only one claimant is left), which hides the routing change from a snapshot comparison. Alert on the transition from warnings non-empty to empty, not just on the presence of warnings.

  • Insertion order within peers_ is stable across a merge but can vary across gateway restarts, so two fresh primaries with the same peer list may pick different last-writers. Sticky routing across snapshots is intentionally not implemented - it would mask a deployment anomaly rather than surface it. Resolve collisions at the manifest level instead.

  Malformed parent_component_id. classify_component_routing validates every parent_component_id edge before running hierarchical-parent detection. Self-parent references, parent IDs not present in the merged Component set, and cycles (A -> B -> ... -> A) are dropped with a diagnostic on malformed_parent_warnings (logged by the aggregation manager via RCLCPP_WARN). Affected Components fall back to leaf routing so a misconfigured peer cannot mask itself behind a phantom parent.

• Apps: Prefix on collision. If a remote App has the same ID as a local one, the remote entity’s ID is prefixed with peername__ (double underscore separator). Apps represent individual ROS 2 nodes with unique behavior - two Apps with the same ID from different peers are different entities.

The EntityMerger::SEPARATOR constant (__) is used as the prefix separator for Apps. The routing table maps entity_id -> peer_name for entities whose runtime state lives on the peer: remote-only Areas and Functions, leaf Components (remote-only or collision-merged), and remote-only or prefixed Apps. Hierarchical parent Components are not in the routing table - they are served locally.

Provenance (x-medkit.contributors)

Every merged entity carries a contributors list in its x-medkit block that names each source which contributed to the merged view. The list is populated during merge:

• Each local entity is seeded with "local" before the peer merge loop runs.

• EntityMerger appends "peer:<name>" on every Area / Component / Function collision and on every remote-only addition, without knowing yet whether a Component will later be classified as a hierarchical parent or a leaf. The classification pass runs afterwards and only rewrites the routing table; contributors reflects the merge inputs. Appends are deduplicated, so merging with the same peer twice never produces duplicate entries.

• Apps that collide receive only "peer:<name>" because the prefix strategy turns them into distinct entities.

• Outputs are sorted with "local" first (when present) and "peer:<name>" entries alphabetically, so clients and snapshot tests can rely on a stable order regardless of peer merge order.

Clients (web UI, MCP, Foxglove, VDA 5050 agent) can use contributors to distinguish a locally-owned entity from one that came in over aggregation, and to display which peers participated in a hierarchical parent’s view. In daisy-chain topologies each hop surfaces only its direct upstream; an operator looking at the top-level aggregator sees "peer:<direct_neighbour>" and must drill into the neighbour to see its own contributor list.

Request Routing

When a request arrives for an entity, HandlerContext checks the routing table. If the entity is local, processing continues normally. If the entity maps to a peer, the request is forwarded transparently:

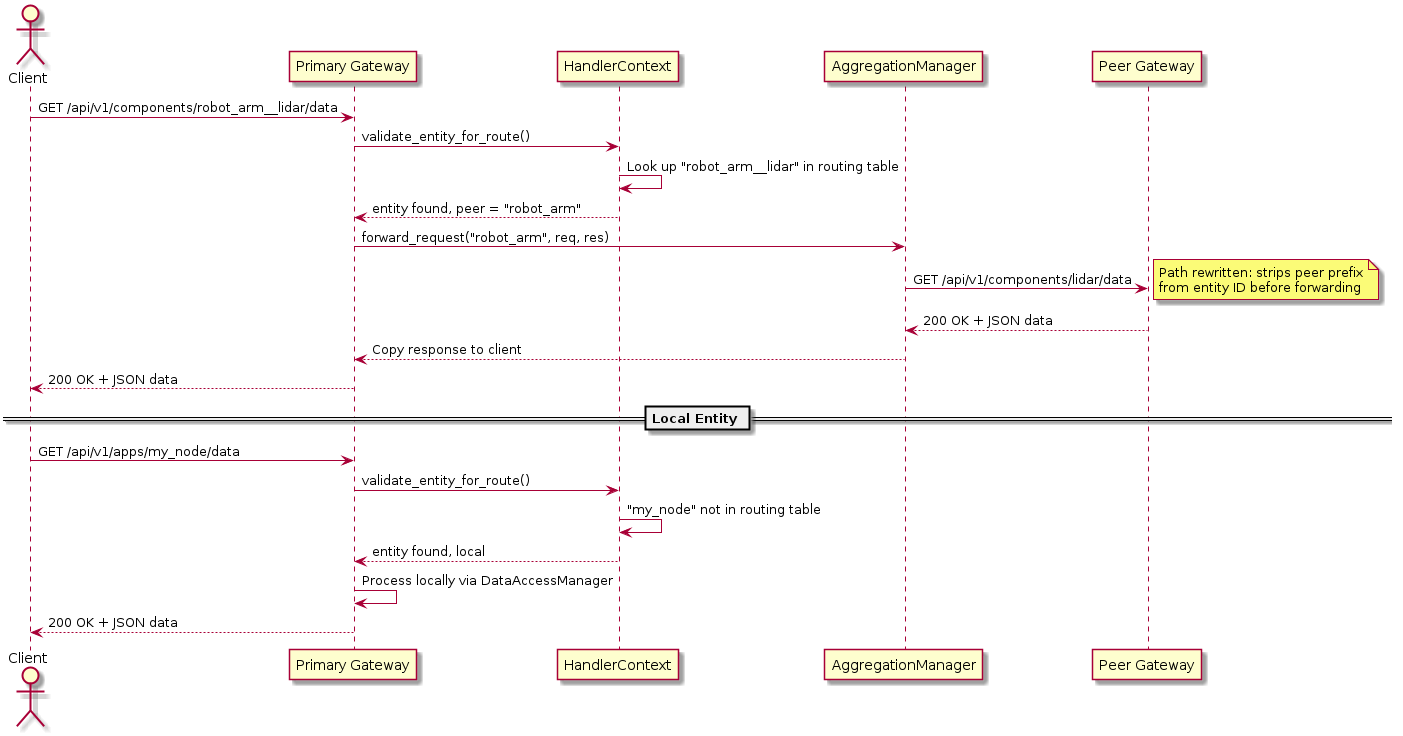

Request Routing - Local vs Remote

Member Dispatch

The routing table answers “who owns this entity”, and for an entity that draws its resources from members that question has no single answer: an Area, a merged Function and a hierarchical parent Component all have members on both sides of the link, which is exactly why they are deliberately absent from the table. Routing one of them whole would hand the request to one peer and discard every member the other contributors hold.

A request naming one member is a different question, and it does have a single answer. HandlerContext::dispatch_to_member re-addresses such a request to the member’s own entity route - /apps/{member}/... or /components/{member}/... - on the gateway the routing table names for that member:

POST /api/v1/functions/vehicle_health/operations/peer_calibration:calibrate/executions
  -> POST /api/v1/apps/peer_calibration/operations/calibrate/executions   (on the peer)

GET  /api/v1/functions/vehicle_health/data/pressure_sensor:chassis/brakes/pressure
  -> GET  /api/v1/apps/pressure_sensor/data/chassis/brakes/pressure       (on the peer)

PUT  /api/v1/functions/vehicle_health/configurations/peer_calibration:calibration_offset
  -> PUT  /api/v1/apps/peer_calibration/configurations/calibration_offset (on the peer)

An id with no member half is the same question asked differently, and it has to have the same answer. Qualification follows ambiguity, so an item a single member provides keeps its bare id, and that bare id is what the collection hands a client - it has to reach the owner too, or the most ordinary item in an aggregating entity is the one that cannot be read. Each collection recovers the owner from what the tree already records: AggregatedOperations::owner_by_path maps a ROS path to the member that owns the operation, and AggregatedData::owners_by_topic maps a topic path to the members that provide it. The dispatch is then identical:

GET  /api/v1/functions/vehicle_health/data/chassis%2Fbrakes%2Fpressure
  -> GET  /api/v1/apps/pressure_sensor/data/chassis/brakes/pressure       (on the peer)

A topic differs from an operation in having a LIST of owners, because one topic that a member publishes and another subscribes to is one item. That list settles where, not how many: an owner this gateway runs means the topic is on this graph and is sampled here; owners all on one peer mean the topic is on that peer, and any one of them addresses it there; owners spread across gateways mean the bare id names no single place, and the local graph answers it as it always did.

A member half a peer supplied is read through the collision rename before it means anything here. A peer describes its own tree in its own names, and an App whose id collided with a local one was merged under <peer>__<id>, so the name the peer sends names the LOCAL leaf on this gateway. fan_out_get therefore records the peer each item came from in FanOutResult::item_peers, and AggregationManager::local_member_id resolves that name against the routing table: an item arriving through the fan-out is re-attributed to the id the merge gave its owner, in x-medkit.member_ids and in the member half of the item id, before any of it is offered to a client. Read verbatim instead, the peer’s item is attributed to a member that does not own it, the collection offers one id for two operations, and the peer’s copy is not addressable through the aggregate at all.

Each collection keeps its own id scheme and each hands the same two halves to the dispatch. /data and /operations qualify only an ambiguous id and carry x-medkit.member_ids; /configurations qualifies every id on a multi-node entity as <app_id>:<param_name> and carries x-medkit.source. What the two schemes agree on is what the dispatch needs: the member half is an entity id, and the item half is the id the member’s own route uses. Nothing on the owning gateway is aggregating, so the item half is sent bare - a parameter as its plain name, a topic as its plain path.

Which half is which is decided from the entity’s MEMBER SET, not from the number of ROS nodes the local walk resolves for the entity. The two answer different questions. A member another gateway runs announces no ROS binding, so it contributes no node here: the node count measures how much of the entity is local, and reading an id from it refuses the qualified form on exactly the two deployments that need it most - an aggregator that runs no node of its own, where the count is zero, and a gateway running one node beside peer-owned members, where the count is one. The member set includes what the peers contributed, so it says the same thing on every deployment.

A prefix that names no member is part of the parameter name. That is what makes the rule self-protecting: a parameter whose own name contains a colon stays addressable, and no id that resolves today moves, because a split only happens where the prefix matches a real member. An entity’s own id is not a member half of itself - it separates nothing - and a member half with an empty item after it is not one either, since one path segment shorter is the member’s configurations COLLECTION and answering there would hand a list to a caller that asked for one value.

An operation’s item half is its short name, except where the member carrying it exposes that short name at more than one ROS path. There the member half names one member for both copies and cannot separate them, so the item half is the ROS path with its leading slash stripped - and it stays that on the member’s own route too, because the member has the same two operations under the same short name:

POST /api/v1/components/vehicle-ecu/operations/dual_calibration:testrig/dual/left/calibrate/executions
  -> POST /api/v1/apps/dual_calibration/operations/testrig/dual/left/calibrate/executions

The executions of an operation are addressed the same way, and dispatched for the same reason. A goal lives on the gateway that sent it - the one the POST was dispatched to - so listing it has to reach that gateway too:

GET /api/v1/functions/vehicle_health/operations/peer_long_calibration:long_calibration/executions
  -> GET /api/v1/apps/peer_long_calibration/operations/long_calibration/executions

Answering that from the aggregator’s own goal tracking returns an empty collection for goals that exist, which reads as “this operation has never been run”.

Every verb that takes one of those execution ids back resolves it the same way, for the same reason - GET for its status, PUT to apply a capability and DELETE to cancel:

GET /api/v1/functions/vehicle_health/operations/peer_long_calibration:long_calibration/executions/{exec}
  -> GET /api/v1/apps/peer_long_calibration/operations/long_calibration/executions/{exec}

An id that does not resolve to exactly one owned operation is left to the local path, whose key is the execution id alone: resolving is how the owning gateway is found, not a second place for these routes to refuse a request. So a locally-owned execution is answered here exactly as before, and an id naming no goal gets the same 404 it always did.

The peer’s Location header is carried back through the forward, because it names the member’s own route - a path the aggregator resolves to the same member - and it is the only address of a resource that lives on the other side.

The member’s own gateway is the only one that can answer: the ROS service, the topic and the parameter behind the id exist on its graph and nowhere else. What this gateway holds for a peer-owned member is a declaration, which is why the local walk’s record of “does this member provide this item” is consulted only once the member is known to be served here. What that declaration carries is whatever the peer last reported - the topics and operations it has, and no node FQN to ask for a parameter - so a member whose report has not arrived yet, or whose parameters were never in it, would have every one of its items read as a miss.

The order inside dispatch_to_member is load-bearing:

1. Reachability, before anything is sent. A member retained while its gateway is silent is answered from what it declared: 504 with the SOVD code not-responding, naming the member. Forwarding to a dead peer instead produces a socket failure dressed as 502, which reports this gateway as broken rather than the link as down.

2. Ownership. No routing entry means this gateway owns the member and the handler carries on.

3. Addressing. The member is looked up in the cache to decide whether it is an App or a Component, because that decides which collection its route lives under.

4. Forward. AggregationManager::forward_request is called with the built path. The overload taking an explicit target applies the same /api/v1/ SSRF guard and the same <peer>__ prefix rewrite to that path as the two-argument form applies to the incoming one - the target is assembled from client-supplied ids and is exactly as untrusted.

Reset-all, DELETE /{entity}/configurations, is not a member-qualified request and does not go through this dispatch: it names no member, and its members can sit on several gateways at once, so there is no single owner to hand it to. This gateway resets what it runs, by calling the parameter services on its own ROS graph. A member owned by a peer is therefore not reset, and the response says so rather than implying otherwise - 207 with that member named and its owning gateway named with it, instead of a 204 that would report a reset of parameters the entity lists and this request never touched.

The wire is committed by the forward, so the handler returns HandlerContext::forwarded_sentinel_error(): the typed router recognises the x-medkit-internal-forwarded code and renders nothing, the same channel the remote-entity branch of validate_entity_for_route uses.

Termination does not depend on a hop count. The target is the member’s own route on the gateway that owns it, and there that entity is local, so the receiving gateway serves it rather than forwarding again. A X-Medkit-No-Fan-Out header on the incoming request is propagated but does not suppress the dispatch: suppression bounds collection fan-out, while a member-qualified request names its owner and is one hop by construction.

Entity collection endpoints (GET /api/v1/areas, /components, /apps, /functions) serve from the local entity cache, which is populated during periodic cache refresh cycles that fetch entities from all healthy peers.

Per-entity resource collections (data, operations, faults, configurations, logs) use real-time fan-out via fan_out_get(), reached through the merge_peer_items() / fan_out_collection() helpers in fan_out_helpers.hpp: the primary gateway sends the same request to all healthy peers, collects the responses, and merges the items arrays. If some peers fail, the response body includes x-medkit.partial: true and x-medkit.failed_peers. Fan-out requests carry an X-Medkit-No-Fan-Out header, and both helpers return early when the incoming request has it, so a peer that aggregates back never fans out a second time. These are the routes that declare the header in the OpenAPI document (RouteEntry::fan_out_aware()).

Warning

The global GET /api/v1/faults is not one of them. FaultHandlers::list_all_faults calls fan_out_get() directly rather than through either helper, so it never inspects X-Medkit-No-Fan-Out - and fan_out_get() is the code that sets the header outbound. Nothing else in aggregation/ guards the loop. Two gateways that peer with each other therefore recurse unbounded on this one route: A queries B, B queries A, and each hop holds a std::async thread until its timeout, so the thread cost grows with recursion depth.

The route consequently does not declare the header either - advertising an opt-out it ignores would be worse than silence. Fixing this means routing list_all_faults through the helper (which changes the per-item wire shape it deliberately preserves) or adding a loop guard inside fan_out_get(); both are aggregation changes, not documentation ones.

Target-filtered fan-out. For per-entity paths, merge_peer_items() asks AggregationManager::get_peer_contributors(id) for the list of peers that host or contribute to the entity, and passes it as a filter to fan_out_get(). Requests reach only those peers; non-contributors are never queried so they cannot appear in failed_peers. The set unions:

• The routing table (remote leaves, collision-renamed peer-only entities).

• A peer_contributors_by_entity_ map maintained alongside the routing table. gateway_node rebuilds both after every discovery cycle by walking contributors on the merged Areas/Components/Apps/Functions, stripping the "peer:" prefix and accumulating peer names per id. Merged Areas/Functions with ID collisions and hierarchical parent Components - both deliberately stripped from the routing table - still reach their peers through this map.

When the resolved list is empty (local-only entity), fan-out is skipped: no peer hosts the entity, so hitting peers would only produce spurious partial: true / failed_peers. Global endpoints (paths with no entity id, e.g. GET /api/v1/faults) pass a nullptr filter and keep fan-out-to-all-healthy behavior.

Entities freshly announced on a peer but not yet reflected in the local routing/contributor tables (a brief window between discovery cycles) are treated as local-only: their per-entity fan-out is deferred until the next cycle rebuilds the tables. This is a deliberate trade-off against re-enabling the spurious partial: true path.

Warning

Fan-out is synchronous on the httplib handler thread. Each request blocks for up to timeout_ms (default 2000ms) waiting for the slowest healthy peer (parallel via std::async, so max-not-sum across peers). merge_peer_items() skips fan-out when healthy_peer_count() == 0 to avoid blocking after a peer outage is detected by health checks, but during the window between a peer going down and the next health check cycle, handler threads can block. Under concurrent load, this could exhaust httplib’s thread pool. Consider reducing aggregation.timeout_ms for deployments with many per-entity fan-out consumers.

Peer Discovery

Peers can be configured statically in the YAML config or discovered automatically via mDNS.

Static Peers

Configure peers directly in gateway_params.yaml using parallel arrays:

aggregation:
  enabled: true
  peer_urls: ["http://192.168.1.10:8080", "http://192.168.1.11:8080"]
  peer_names: ["arm_controller", "base_platform"]

Static peers are always present in the peer list regardless of mDNS settings.

mDNS Auto-Discovery

MdnsDiscovery uses multicast DNS (via the mjansson/mdns header-only C library) to announce and discover gateway instances on the local network.

• Announce: A background thread responds to mDNS queries for the configured service type (default: _medkit._tcp.local). Other gateways on the network discover this instance automatically.

• Browse: A background thread periodically sends mDNS queries and processes responses. When a new peer is found, AggregationManager::add_discovered_peer() is called. When a peer sends a goodbye, remove_discovered_peer() is called.

mDNS discovery works alongside static peers. A gateway can have both static and dynamically discovered peers.

Health Monitoring

AggregationManager calls check_all_health() during each entity cache refresh cycle. Refresh is primarily driven by rclcpp graph events (polled every 100 ms), with refresh_interval_ms (default: 30000 ms) providing a safety backstop for the case a graph event is missed. Each PeerClient GETs /api/v1/health on its peer. If the health check fails, the peer is marked unhealthy and excluded from fan-out queries and entity fetching.

When a peer recovers (health check succeeds again), it is automatically re-included: the next refresh fetches it like any other healthy peer, and since a retained declaration is replayed only for a peer that could not be read that cycle, the live answer replaces the retained one wholesale rather than being merged beside it. x-medkit.available therefore clears on that same refresh, and the entities the peer only discovered at runtime - dropped while it was silent - are merged again with it. x-medkit.is_online is read off the wire as the peer’s own account of an App, not as a statement about the link, so an App on a gateway that has just restarted stays false for however many refreshes that gateway needs to relink its ROS graph, and then turns true.

PeerClient::fetch_entities() reads a peer over several requests and either describes it whole or reports failure: a dead connection, a status a route has no other meaning for, an oversized body or unparsable JSON on any of them fails the fetch, because a picture missing a branch is indistinguishable on the wire from a peer that does not have that branch. Two statuses carry a meaning of their own: a 404 on a nested collection route (/subareas, /subcomponents, an app’s /operations or /data) identifies a peer running a gateway that predates the route and is reported in PeerEntities::absent_routes for the caller to log; a 504 with error code not-responding on any route hanging off an entity - its detail, or one of its nested collections - is the peer reporting that the gateway contributing that entity has gone quiet, which is what a middle gateway in a chain answers for a declaration it is retaining. The entity is kept as the list named it and marked unavailable, and a nested collection answering that way costs the members that route carries and nothing else. Read as a failed request instead, one unreachable member anywhere behind a peer would discard that peer’s whole picture on every refresh, and the aggregator would go on serving its last pre-failure view indefinitely. A 504 that does not carry not-responding says nothing about an entity and still fails the fetch.

Two of those requests are made per App: its /operations and its /data. Neither collection is ever declared in a manifest - both are discovered from the ROS graph - so what the peer reports on those routes is the only record of them this gateway can have, and both records are what addressing is built on. Without the operations, ambiguity between two members sharing an operation short name could only be settled by asking at request time, and an answer that depends on who is reachable is not one a client can rely on. Without the topics, nothing here maps a peer’s topic to the member that provides it, so the bare path a single-provider topic is listed under resolves to no owner, is served from the local graph, and is refused as an unknown topic while the member and its gateway are both healthy. Both requests carry X-Medkit-No-Fan-Out, which keeps the peer from re-asking ITS peers: each gateway reports what it holds, the hop that owns an entity is the hop that answers for it, and that is also what makes the walk terminate.

Availability travels the same way in the other direction. x-medkit.available is emitted only when false, so absence means reachable, and both parse_component and parse_app read it back with a default of true. Without that, a chain of three gateways loses the fact at the second hop: an App still carries is_online, but a Component has no other signal, and the head of the chain would report an unreachable leaf as reachable. Local retention only ever sets the flag false and never back to true, so a peer’s own statement that something it holds is unreachable survives being replayed, and where the marking does apply over a peer’s available it is because the peer itself stopped answering - the stronger statement, since everything it holds sits behind the link that is down. AggregationManager never records a failed fetch as the peer’s declaration, so the last complete one survives; it re-checks that peer’s health to decide whether to replay it marked unavailable (health check failed) or exactly as it was last read (health check still passes).

The same field on a listed ITEM answers for that item’s member and for nothing else. /operations and /data hold back the copies their declared tree carries for peer-owned members and offer them only when the fan-out did not bring the owner’s own copy - keyed on the full ROS path, which is what makes two copies one item - and whether such a copy is marked unavailable is decided from the member’s reachability - the same reading dispatch_to_member acts on, so the listing and the request cannot disagree. A fan-out that produced nothing is not evidence on its own: it also never runs when no peer contributes the entity, which is the ordinary shape of a grouping declared on this gateway alone that hosts a member another gateway runs. Deciding from the fan-out there marks every peer-owned item of that entity unreachable while its gateway is answering normally.

The aggregator also publishes its own /health response with two additional fields when aggregation is enabled (x-medkit extensions on our own endpoint, outside the SOVD core contract):

• peers - array of peer status objects describing each configured or discovered peer (URL, name, reachability, last-seen timestamp).

• warnings - array of operator-actionable aggregation warnings. The array is always present (possibly empty) when aggregation is active, so clients do not have to differentiate “no warnings” from “aggregation disabled” (use /.capabilities.aggregation in the root endpoint for that).

Warning objects carry code (stable machine-readable identifier, documented in warning_codes.hpp), message (human-readable text including a remediation hint), entity_ids (SOVD IDs touched by the anomaly), and peer_names (peers involved). The only code emitted today is leaf_id_collision - see the classification section for the detection algorithm and the fall-back routing behaviour.

Stream Proxy

For streaming connections, the StreamProxy interface provides transport-agnostic event proxying. The SSEStreamProxy implementation connects to a peer’s SSE endpoint and relays events back to the primary gateway’s client. Each StreamEvent carries the peer_name so the aggregator can attribute events to their source.

GET /faults/stream on an aggregating gateway uses it. An aggregator runs on its own ROS domain with its own fault_manager, which no producer reports to, so a stream fed from the local graph alone is open, valid and silent - and a silent stream reads to a client exactly like a healthy system. GET /faults already fans out; PeerFaultRelay gives the stream the same answer.

Lifecycle and the three constraints that shape it:

• Opened on the first client, closed with the last. A relayed stream holds one SSE client slot on every peer for as long as it is open, and sse.max_clients defaults to 2. An aggregator nobody is watching therefore holds none.

• Reconciled from the streaming loop. Peers that appear or go away are picked up on a later wakeup: the loop wakes on every event and at least once per keepalive interval, and reconciliation itself runs at most once a second so a burst of events does not become a burst of lock acquisitions. Only the first attached client forces it immediately. No timer of its own.

• Loop suppression is the same mechanism the collections use. The relay’s own request carries X-Medkit-No-Fan-Out, and a stream request carrying that header is served from the local graph only. Without it a chain of aggregating gateways would relay one event round the loop.

Each relayed event goes out under the aggregator’s own event id, carrying the peer’s payload with x-medkit.peer added. Replay covers this gateway’s own ids only. Two peers number their events independently, so a Last-Event-ID cannot address a position in a merged stream; a reconnecting client resumes from what the aggregator has buffered, not from each peer’s own history.

Deployment Topologies

Star Topology

One primary gateway aggregates from multiple leaf gateways. Best for robots with a central controller and peripheral subsystems:

Client
  |
Primary (host-A)
 / | \
B  C  D  (leaf gateways)

Each leaf gateway discovers its own ROS 2 subsystem. The primary merges all entities and serves a unified view.

Chain Topology

Gateways are chained: A aggregates from B, which aggregates from C. Each level in the chain sees the merged view of everything downstream:

Client -> A -> B -> C

Gateway A sees entities from A + B + C. Gateway B sees entities from B + C. Gateway C sees only its own entities.

This is useful for layered systems where subsystems have their own aggregation level (e.g., a fleet gateway that aggregates per-robot gateways, which in turn aggregate per-subsystem gateways).

Containers on Same Host

Multiple ROS 2 subsystems run in separate containers on the same host. Each container runs its own gateway instance. A host-level gateway aggregates from all containers via localhost or Docker network:

Client
  |
Host Gateway (port 8080)
 /           \
Container A   Container B
(port 8081)   (port 8082)

mDNS discovery handles container-to-container communication automatically when containers share a network. Static peers work for bridge-networked containers where mDNS does not cross network boundaries.

Key Classes

PeerClient

HTTP client for communicating with a single peer gateway. Supports health checking, entity fetching, transparent request forwarding (proxy), and JSON-parsed responses for fan-out merging. Thread-safe via atomic health flag and mutex-guarded lazy client creation.

EntityMerger

Stateless merge engine that combines local and remote entity sets using type-specific rules (merge by ID for Area/Function/Component, prefix on collision for App). Produces a provisional routing table mapping remote entity IDs to peer names - the Component entries are later refined by classify_component_routing.

classify_component_routing (aggregation/classification.hpp)

Pure free function that takes the fully merged Component set plus the per-peer PeerClaim list and returns a ClassifiedRouting with hierarchical-parent Components removed from the routing table (served locally with merged view) and leaves kept. Multi-peer leaf collisions surface as LeafCollisionWarning entries consumed by /health.warnings.

AggregationManager

Central coordinator that manages the set of PeerClient instances, runs health checks, maintains the routing table, and provides fan-out and forwarding APIs. Thread-safe via shared_mutex.

MdnsDiscovery

Background service for announcing and browsing mDNS services. Runs announce and browse threads. Invokes callbacks when peers are found or removed.

StreamProxy / SSEStreamProxy

Transport-agnostic interface for proxying streaming connections to peers. SSEStreamProxy implements SSE-based event relaying with a background reader thread that reconnects with exponential backoff.

PeerFaultRelay

Holds one SSEStreamProxy per healthy peer for as long as a client is attached to this gateway’s /faults/stream, and hands each event to the handler that owns the local replay buffer. Takes its peer list through a supplier callback rather than from AggregationManager directly, because it lives in the ROS-neutral core.

HostInfoProvider

Reads local host system info (hostname, OS, architecture) and produces a single Component entity representing the physical host. Used in runtime-only discovery to replace synthetic per-namespace Components.

Security Considerations

Multi-instance aggregation introduces an attack surface where a malicious or compromised peer can inject data into the primary gateway’s entity tree. The following defenses are in place:

Peer URL Validation (mDNS-discovered peers)

add_discovered_peer() rejects URLs that:

• Use a non-HTTP(S) scheme (e.g., ftp://, file://)

• Resolve to loopback, link-local, or unspecified addresses (prevents SSRF to localhost services or cloud metadata endpoints like 169.254.169.254)

• Point to well-known cloud metadata hostnames (metadata.google)

Static peers bypass address validation (loopback is valid for same-host deployments) but still require HTTP(S) scheme.

TLS Enforcement

When require_tls: true, peers with http:// URLs are rejected (both static and discovered). This prevents cleartext communication on untrusted networks.

Privileged Port Rejection (mDNS)

The mDNS browse callback rejects SRV records with ports below 1024. Privileged ports are system services (SSH, HTTP, DNS) that should never be SOVD peer gateways. This prevents rogue mDNS announcements from redirecting requests to system services.

Entity ID Validation

Entity IDs received from peer JSON responses are validated before being used in URL paths for detail fetches. IDs must match [a-zA-Z0-9_-]{1,256}. This prevents path traversal attacks where a malicious peer returns IDs like ../etc/passwd that would be interpolated into HTTP request paths.

Per-Collection Limits

Each entity collection (areas, components, apps, functions) is limited to 1000 entities per peer response. If a peer returns more, the entire fetch for that peer is rejected. This prevents a malicious peer from causing excessive HTTP requests via N+1 detail fetches.

Response Size Limits

All HTTP responses from peers are limited to 10 MB (MAX_PEER_RESPONSE_SIZE). Responses exceeding this limit are rejected.

Per-Peer Entity Limits

fetch_and_merge_peer_entities() accepts a max_entities_per_peer parameter (default: 10000) that limits the total number of entities from a single peer across all collections.

Max Discovered Peers

The max_discovered_peers config (default: 50) limits the number of peers that can be added via mDNS discovery. Static peers do not count against this limit.

Static Peer Protection

remove_discovered_peer() only iterates discovered peers, never static peers. This prevents a rogue mDNS goodbye message from removing a statically configured peer by matching its name.

Auth Header Forwarding

By default, forward_auth is false - the primary gateway does NOT forward client Authorization headers to peers. This prevents token leakage to untrusted or mDNS-discovered peers. Enable only when all peers are trusted.

Function Host Remapping

When App ID collision causes prefixing (e.g., camera_driver becomes peer_b__camera_driver), Function entities that reference the original App ID in their hosts list are automatically remapped to use the prefixed ID. This ensures Function host references remain valid after merge.
