ros2_medkit_integration_tests

This section contains design documentation for the ros2_medkit_integration_tests package.

Overview

The integration tests package validates the ros2_medkit system end-to-end by launching real ROS 2 nodes and exercising the gateway’s HTTP API. Tests are split into two categories:

  • Feature tests validate individual API capabilities in isolation

  • Scenario tests exercise multi-step workflows that cross multiple features

A shared Python library (ros2_medkit_test_utils) provides a base test case, launch description factories, and assertion helpers.

Architecture

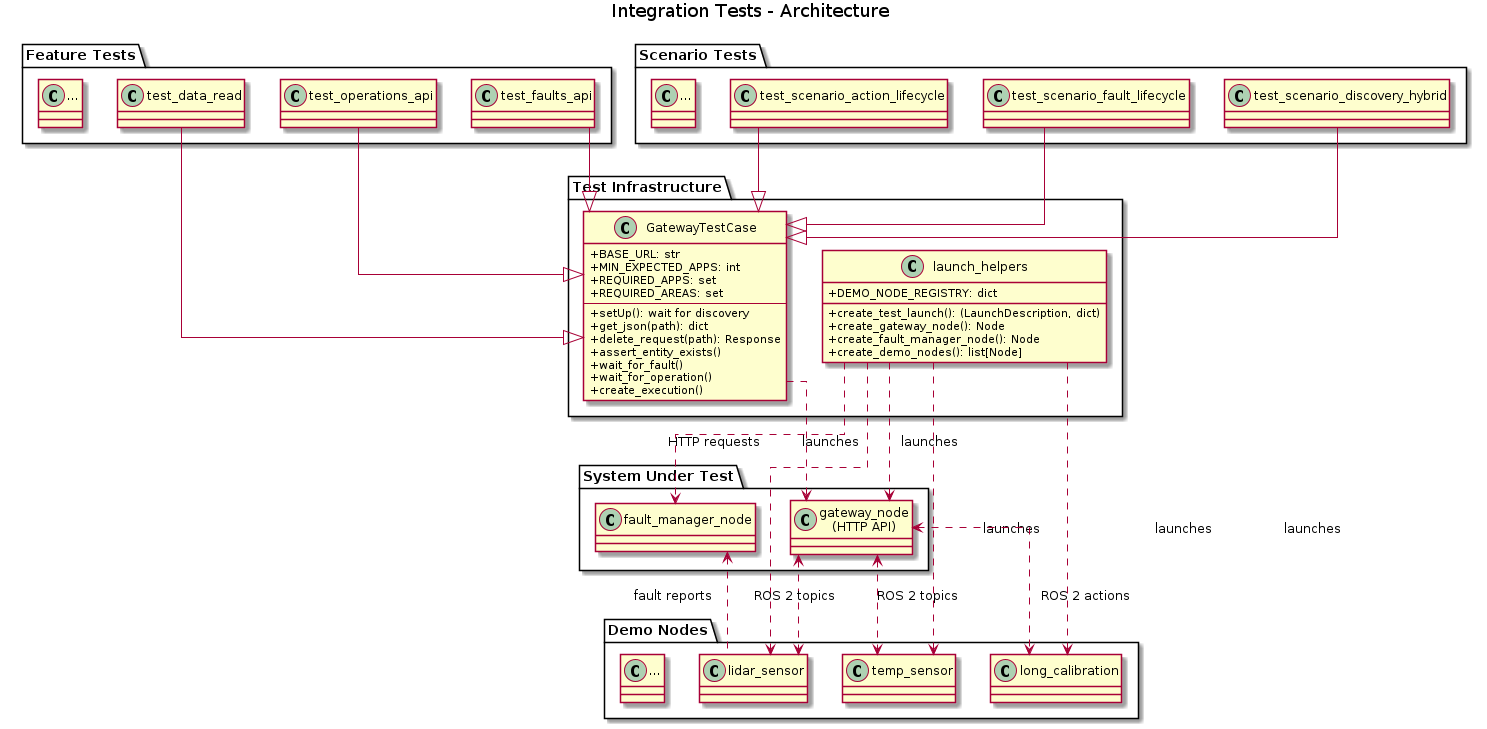

The following diagram shows the test infrastructure and how it relates to the system under test.

@startuml integration_test_architecture skinparam linetype ortho skinparam classAttributeIconSize 0 title Integration Tests - Architecture package "Test Infrastructure" { class GatewayTestCase { +BASE_URL: str +MIN_EXPECTED_APPS: int +REQUIRED_APPS: set +REQUIRED_AREAS: set -- +setUp(): wait for discovery +get_json(path): dict +delete_request(path): Response +assert_entity_exists() +wait_for_fault() +wait_for_operation() +create_execution() } class "launch_helpers" { +DEMO_NODE_REGISTRY: dict +create_test_launch(): (LaunchDescription, dict) +create_gateway_node(): Node +create_fault_manager_node(): Node +create_demo_nodes(): list[Node] } } package "Feature Tests" { class "test_data_read" as tdr class "test_operations_api" as top class "test_faults_api" as tfa class "..." as etc1 } package "Scenario Tests" { class "test_scenario_action_lifecycle" as tsal class "test_scenario_fault_lifecycle" as tsfl class "test_scenario_discovery_hybrid" as tsdh class "..." as etc2 } package "System Under Test" { class "gateway_node\n(HTTP API)" as gw class "fault_manager_node" as fm } package "Demo Nodes" { class "temp_sensor" as ts class "lidar_sensor" as ls class "long_calibration" as lc class "..." as etc3 } tdr -down-|> GatewayTestCase top -down-|> GatewayTestCase tfa -down-|> GatewayTestCase tsal -down-|> GatewayTestCase tsfl -down-|> GatewayTestCase tsdh -down-|> GatewayTestCase GatewayTestCase ..> gw : HTTP requests "launch_helpers" ..> gw : launches "launch_helpers" ..> fm : launches "launch_helpers" ..> ts : launches "launch_helpers" ..> ls : launches "launch_helpers" ..> lc : launches gw <..> ts : ROS 2 topics gw <..> ls : ROS 2 topics gw <..> lc : ROS 2 actions fm <.. ls : fault reports @enduml

Integration Test Architecture

Test Categories

Feature Tests

Feature tests (test/features/) validate individual API capabilities. Each test file focuses on one area of functionality and launches only the nodes it needs.

Feature Tests

Test File

Description

test_data_read

GET /data endpoints for topic sampling

test_data_write

PUT /data endpoints for publishing to topics

test_operations_api

Service and action operation discovery

test_faults_api

Fault listing, filtering, and deletion

test_entity_listing

Entity collection endpoints (areas, components, apps)

test_entity_routing

Nested entity routing (areas/components/apps)

test_hateoas

HATEOAS links and capabilities

test_configuration_api

ROS 2 parameter read/write via REST

test_sse

Server-Sent Events fault stream

test_health

Health check endpoint

test_cors

CORS header handling

test_auth

JWT authentication and RBAC

test_tls

HTTPS/TLS endpoint

test_bulk_data_api

Bulk data upload/download

test_snapshots_api

Rosbag snapshot capture

test_discovery_heuristic

Heuristic app naming from node graph

Scenario Tests

Scenario tests (test/scenarios/) exercise end-to-end workflows. Tests within a scenario are numbered (test_01_, test_02_, …) and execute in order.

Scenario Tests

Test File

Description

test_scenario_action_lifecycle

Create, poll, cancel, list action executions

test_scenario_fault_lifecycle

Fault appearance, bulk delete, single delete

test_scenario_fault_inspection

Fault details, snapshots, rosbag download

test_scenario_discovery_hybrid

Hybrid discovery mode with manifest + runtime

test_scenario_discovery_manifest

Manifest-only discovery mode validation

test_scenario_config_management

Parameter read/write/restore workflow

test_scenario_data_publish_verify

Publish data and verify topic updates

test_scenario_subscriptions

Cyclic subscription CRUD and SSE delivery

test_scenario_bulk_data_upload

Upload file, list, download, delete

test_scenario_bulk_data_download

Rosbag snapshot download workflow

Demo Nodes

Nine automotive-themed C++ demo nodes simulate a vehicle system. They are launched by the test infrastructure and also available for manual testing via ros2 launch ros2_medkit_integration_tests demo_nodes.launch.py.

Nodes use standard ROS 2 patterns: publishers with wall timers, service servers, and action servers. All timer-based nodes cancel their timers in the destructor to ensure clean shutdown.

Shared Test Library

ros2_medkit_test_utils is a Python package installed alongside the tests:

  • GatewayTestCase – unittest.TestCase subclass that waits for the gateway to discover expected apps/areas before running tests, provides HTTP helper methods.

  • launch_helpers – Factory functions (create_test_launch, create_gateway_node, create_demo_nodes) that replace ~500 lines of inline launch boilerplate.

  • constants – Default port, timeout values.

  • coverage – GCOV_PREFIX environment helpers for CI code coverage collection.

Design Decisions

Test Split: Features vs Scenarios

Tests are split into features (isolated, parallel-safe) and scenarios (ordered, workflow-driven) to enable faster CI runs for focused feature validation while still exercising realistic end-to-end workflows.

Shared Launch Helpers

The create_test_launch() factory replaced ~500 lines of duplicated launch description boilerplate across 24+ test files. Each test file now has a 3-5 line generate_test_description() function.

Self-Contained Scenario Steps

Each scenario test step creates its own resources (goals, faults, subscriptions) rather than sharing state between tests. This eliminates race conditions like the concurrent-goal issue in the original monolithic test file (GitHub #222).
