ros2_medkit_graph_provider

This section contains design documentation for the ros2_medkit_graph_provider plugin.

Overview

The ros2_medkit_graph_provider package implements a gateway plugin that generates live dataflow graph documents for SOVD Function entities. It models the ROS 2 topic graph as a directed graph of nodes (apps) and edges (topic connections), enriched with frequency, latency, and drop rate metrics from /diagnostics. The graph document powers the x-medkit-graph vendor extension endpoint and cyclic subscription sampler.

Architecture

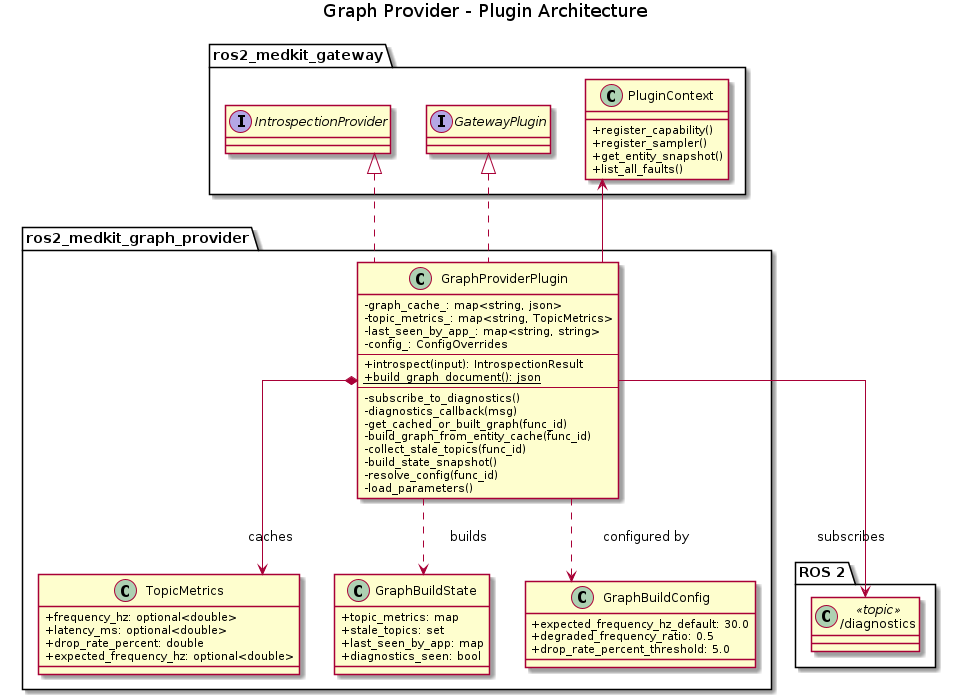

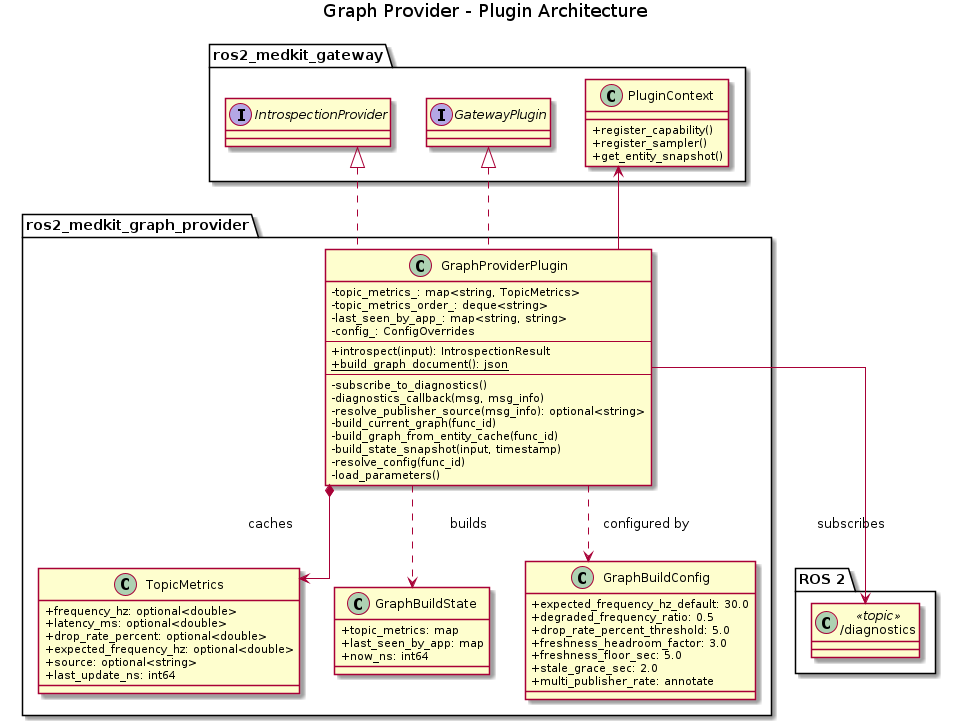

The following diagram shows the plugin’s main components and data flow.

@startuml ros2_medkit_graph_provider_architecture skinparam linetype ortho skinparam classAttributeIconSize 0 title Graph Provider - Plugin Architecture package "ros2_medkit_gateway" { interface GatewayPlugin interface IntrospectionProvider class PluginContext { +register_capability() +register_sampler() +get_entity_snapshot() } } package "ROS 2" { class "/diagnostics" as diag_topic <<topic>> } package "ros2_medkit_graph_provider" { class GraphProviderPlugin { - topic_metrics_: map<string, TopicMetrics> - topic_metrics_order_: deque<string> - last_seen_by_app_: map<string, string> - config_: ConfigOverrides -- + introspect(input): IntrospectionResult + {static} build_graph_document(): json -- - subscribe_to_diagnostics() - diagnostics_callback(msg, msg_info) - resolve_publisher_source(msg_info): optional<string> - build_current_graph(func_id) - build_graph_from_entity_cache(func_id) - build_state_snapshot(input, timestamp) - resolve_config(func_id) - load_parameters() } class TopicMetrics { + frequency_hz: optional<double> + latency_ms: optional<double> + drop_rate_percent: optional<double> + expected_frequency_hz: optional<double> + source: optional<string> + last_update_ns: int64 } class GraphBuildState { + topic_metrics: map + last_seen_by_app: map + now_ns: int64 } class GraphBuildConfig { + expected_frequency_hz_default: 30.0 + degraded_frequency_ratio: 0.5 + drop_rate_percent_threshold: 5.0 + freshness_headroom_factor: 3.0 + freshness_floor_sec: 5.0 + stale_grace_sec: 2.0 + multi_publisher_rate: annotate } } GraphProviderPlugin .up.|> GatewayPlugin GraphProviderPlugin .up.|> IntrospectionProvider GraphProviderPlugin --> PluginContext GraphProviderPlugin --> diag_topic : subscribes GraphProviderPlugin *--> TopicMetrics : caches GraphProviderPlugin ..> GraphBuildState : builds GraphProviderPlugin ..> GraphBuildConfig : configured by @enduml

Graph Provider Plugin Architecture

Graph Document Schema

The plugin generates a JSON document per Function entity with the following structure:

  • schema_version: "2.0.0" - a real, semver contract on the document’s shape and field semantics. A minor bump is additive/backward-compatible (new optional field, new enum value a tolerant client can ignore); a major bump means the shape or the meaning of an existing field changed and old parsing logic may break.

  • graph_id: "{function_id}-graph"

  • timestamp: ISO 8601 millisecond-precision timestamp

  • scope: Function entity that owns the graph

  • pipeline_status: "healthy", "degraded", or "broken"

  • bottleneck_edge: Edge ID with the lowest frequency ratio (only when degraded)

  • topics: List of topics with positional IDs (topic-1, topic-2, …, assigned by enumeration order on every build). They renumber whenever the topic set changes and must never be persisted or treated as stable across requests.

  • nodes: List of app entities with reachability status. A node whose node_status is "unreachable" also carries last_seen: an ISO 8601 timestamp of the last introspection cycle that saw the app online, when known (omitted for an app that has never been seen online).

  • edges: Publisher-subscriber connections with per-edge metrics, keyed by equally positional edge-1, edge-2, … IDs

Edge metrics include frequency, latency, drop rate, and a metrics_status field:

  • "active" - A /diagnostics sample was merged within the freshness window

  • "pending" - No /diagnostics sample has ever been merged for this topic

  • "error" - A sample was merged in the past, but the newest one has been older than the freshness window continuously for longer than stale_grace_sec (see Stale-Grace Debounce below) (error_reason: "metrics_stale" - the only reachable value)

Pipeline Status Logic

The overall pipeline status is determined by aggregating edge states:

  1. broken - At least one edge has metrics_status: "error" (metrics_stale - a real, currently-broken data flow)

  2. degraded - At least one edge has frequency below the degraded ratio threshold or drop rate above it, or at least one scoped node is unreachable. A dead node carries no topics and so contributes no edge, but the Function is not healthy while one of its nodes is down.

  3. healthy - Everything else, including a graph where every edge is still pending (a pipeline that was never observed is not evidence of a broken one)

When the status is "degraded", the bottleneck_edge field identifies the edge with the lowest frequency-to-expected ratio, helping operators pinpoint the constraint in the dataflow pipeline.

Data Sources

Diagnostics Subscription

The plugin subscribes to /diagnostics and parses DiagnosticStatus messages for topic-level metrics, keyed on DiagnosticStatus.name (the fully-qualified topic name). Recognized keys:

  • frame_rate_msg - Mapped to frequency_hz; falls back to frame_rate_node when frame_rate_msg is present but exactly 0 (header-less message types cannot be rated from a header timestamp)

  • current_delay_from_realtime_ms - Mapped to latency_ms

  • drop_rate_percent / drop_rate - Mapped to drop_rate_percent

  • expected_frequency - Mapped to expected_frequency_hz; wins over any graph-provider-side configuration for that topic when present

  • total_dropped_frames - Recognized (keeps the sample from being skipped as irrelevant) but not currently mapped to an output field

Drop-rate degradation only fires against a producer that actually emits drop_rate_percent or drop_rate. The reference producer, greenwave_monitor, does not emit either key - it only reports total_dropped_frames (recognized, but never converted to a rate) - so the drop-rate threshold is inert against greenwave_monitor out of the box; it only activates against a producer that emits one of the two mapped keys.

Each DiagnosticArray message resolves to exactly one publisher (via publisher GID matching against get_publishers_info_by_topic("/diagnostics")), stamped as metrics.source on every topic that message updates, latest-wins: a later message whose publisher cannot be resolved clears source again rather than retaining the last successfully-attributed name, so source and the sample’s freshness stamp always describe the same, most recent message. No GID match leaves source unresolved for that update - never a fabricated name or a vendor literal; a pending or unresolved edge simply omits the source key.

Separately, every edge also carries publisher_count - the live publisher count on its DATA topic, queried directly from the ROS graph (independent of /diagnostics, and emitted even while the edge is still pending). frequency_hz is a topic-level arrival rate summed across every publisher on the topic name, so when publisher_count is greater than 1 the edge also carries rate_ambiguous: true - a duplicate or leftover publisher can inflate the summed rate and mask a genuinely slow pipeline as healthy. See Graph Provider Configuration’s multi_publisher_rate setting for the policy that controls whether frequency_hz is still shown (and allowed to drive the degraded verdict) once this ambiguity exists.

A bounded cache (max 512 topics) with FIFO eviction (oldest-inserted topic evicted first, tracked via an insertion-ordered deque) prevents unbounded memory growth.

Entity Cache

On every request (HTTP route and cyclic-subscription sampler alike), the plugin rebuilds the graph fresh from the current entity cache (PluginContext::get_entity_snapshot()) - there is no cross-request graph cache to go stale. This ensures the response always reflects the latest node and topic state.

Function Scoping

Graph documents are scoped to individual Function entities. The plugin resolves which apps belong to a function by checking the function’s hosts list against app IDs and component IDs. Only topics that connect scoped apps appear as edges. System topics (/parameter_events, /rosout, /diagnostics, NITROS topics) are filtered out.

Design Decisions

Extracted Plugin

The graph provider was extracted from the gateway core into a standalone plugin package. This follows the same pattern as the linux introspection plugins: the gateway loads graph_provider as a .so at runtime, keeping the core gateway free of diagnostics-specific logic. The plugin can be omitted from deployments that do not need dataflow visualization.

Static build_graph_document

The build_graph_document() method is static and takes all inputs explicitly (function_id, IntrospectionInput, GraphBuildState, GraphBuildConfig, timestamp). This makes the graph generation logic fully testable without instantiating the plugin or its ROS 2 dependencies.

Per-Function Config Overrides

The plugin supports per-function configuration overrides for thresholds (expected frequency, degraded ratio, drop rate, staleness grace, multi-publisher rate policy). This allows operators to set different health baselines for different subsystems - for example, a camera pipeline at 30 Hz vs. a LiDAR pipeline at 10 Hz. Overrides can only be delivered via a params YAML loaded with config_file - see Graph Provider Configuration for why the ROS 2 CLI -p path does not work for a hyphenated function id, and why gateway.launch.py does not forward arbitrary plugin parameters.

Monotonic Freshness Clock

TopicMetrics::last_update_ns and GraphBuildState::now_ns are both stamped from std::chrono::steady_clock, never system_clock. Freshness is computed as a subtraction of the two (now_ns - last_update_ns); a backward wall-clock step (an NTP correction, common on a device booting before time sync) would make that subtraction go negative against a non-monotonic clock and could read a genuinely dead topic as fresh forever. The document’s human-readable timestamp field is the one place that still uses system_clock - it is never diffed against anything.

Stale-Grace Debounce

An edge does not flip to error/metrics_stale the instant its age crosses the freshness window; it must stay outside that window continuously for more than stale_grace_sec (default 2.0, overridable per Function). This is a stateless function of (now_ns, last_update_ns, window_sec, grace_sec) with no separate onset/tick state to maintain, so it absorbs a single late DDS/executor-jitter /diagnostics sample without pipeline_status flapping to "broken" and back on the very next on-time sample. stale_grace_sec: 0.0 reproduces the original, un-debounced point-in-time behavior exactly. See Graph Provider Configuration for the full formula.

Multi-Publisher Rate Defense

frequency_hz is derived from frame_rate_msg/frame_rate_node, both a subscriber-side arrival rate summed across every publisher on the topic name - the plugin cannot attribute an incoming /diagnostics sample to a single publisher. A duplicate or leftover publisher on the same topic can therefore inflate the summed rate enough to mask a stalled primary publisher as healthy. The plugin queries the live ROS graph for each DATA topic’s publisher count (independent of /diagnostics) and emits it as publisher_count on every edge on that topic, flagging rate_ambiguous: true whenever it is greater than one. The multi_publisher_rate setting (default "annotate") controls whether frequency_hz keeps driving the degraded verdict once that ambiguity exists, or is suppressed for safety-critical deployments that would rather show no rate than an untrustworthy one. Suppression removes the misleading number, not the health verdict - rate_ambiguous already flags the ambiguity. See Graph Provider Configuration for the full policy reference.

Cyclic Subscription Sampler

The plugin registers a sampler via PluginContext::register_sampler() for the x-medkit-graph resource. This allows clients to create cyclic subscriptions that receive periodic graph snapshots over SSE, enabling live dashboard updates without polling the HTTP endpoint.
