ros2_medkit_beacon_common

This section contains design documentation for the ros2_medkit_beacon_common library.

Overview

The ros2_medkit_beacon_common package is a shared C++ library used by the beacon discovery plugins (ros2_medkit_topic_beacon and ros2_medkit_param_beacon). It provides the data model, hint storage, entity mapping, validation, and response building that both beacon transports rely on. It is not a plugin itself - it is linked as a static library by the two beacon plugin packages.

Architecture

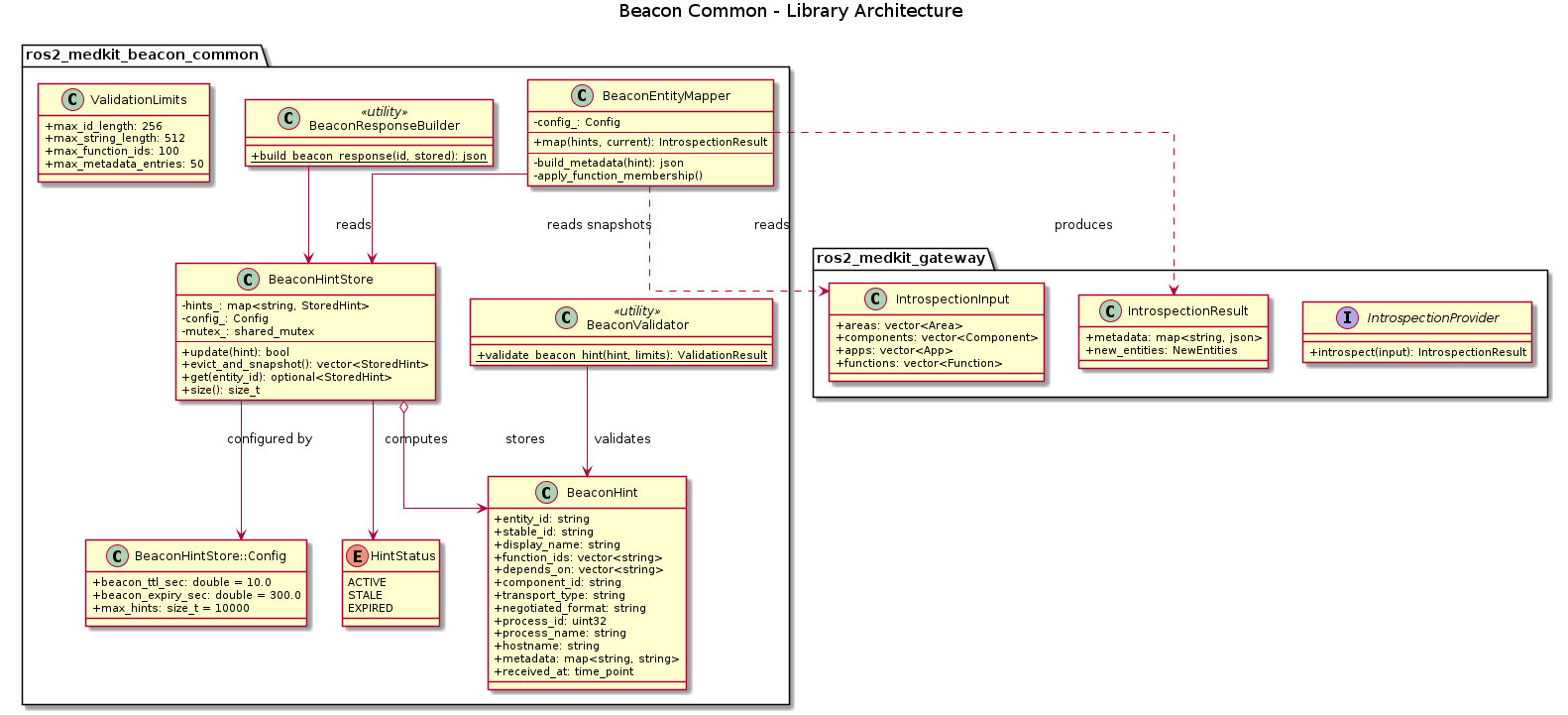

The following diagram shows the beacon common components and their relationships.

@startuml ros2_medkit_beacon_common_architecture skinparam linetype ortho skinparam classAttributeIconSize 0 title Beacon Common - Library Architecture package "ros2_medkit_gateway" { interface IntrospectionProvider { +introspect(input): IntrospectionResult } class IntrospectionInput { +areas: vector<Area> +components: vector<Component> +apps: vector<App> +functions: vector<Function> } class IntrospectionResult { +metadata: map<string, json> +new_entities: NewEntities } } package "ros2_medkit_beacon_common" { class BeaconHint { + entity_id: string + stable_id: string + display_name: string + function_ids: vector<string> + depends_on: vector<string> + component_id: string + transport_type: string + negotiated_format: string + process_id: uint32 + process_name: string + hostname: string + metadata: map<string, string> + received_at: time_point } class BeaconHintStore { - hints_: map<string, StoredHint> - config_: Config - mutex_: shared_mutex -- + update(hint): bool + evict_and_snapshot(): vector<StoredHint> + get(entity_id): optional<StoredHint> + size(): size_t } class BeaconEntityMapper { - config_: Config -- + map(hints, current): IntrospectionResult -- - build_metadata(hint): json - apply_function_membership() } class BeaconValidator <<utility>> { + {static} validate_beacon_hint(hint, limits): ValidationResult } class BeaconResponseBuilder <<utility>> { + {static} build_beacon_response(id, stored): json } class "BeaconHintStore::Config" as StoreConfig { + beacon_ttl_sec: double = 10.0 + beacon_expiry_sec: double = 300.0 + max_hints: size_t = 10000 } class ValidationLimits { + max_id_length: 256 + max_string_length: 512 + max_function_ids: 100 + max_metadata_entries: 50 } enum HintStatus { ACTIVE STALE EXPIRED } } BeaconHintStore o--> BeaconHint : stores BeaconHintStore --> HintStatus : computes BeaconHintStore --> StoreConfig : configured by BeaconEntityMapper --> BeaconHintStore : reads snapshots BeaconEntityMapper ..> IntrospectionResult : produces BeaconEntityMapper ..> IntrospectionInput : reads BeaconValidator --> BeaconHint : validates BeaconResponseBuilder --> BeaconHintStore : reads @enduml

Beacon Common Library Architecture

Main Components

  1. BeaconHint - Core data structure representing a discovery hint from a ROS 2 node

    • entity_id is the only required field (identifies the app)

    • Identity fields: stable_id, display_name for human-readable labeling

    • Topology fields: function_ids, depends_on, component_id for entity relationships

    • Transport fields: transport_type, negotiated_format for DDS introspection

    • Process fields: process_id, process_name, hostname for runtime context

    • metadata map for arbitrary key-value pairs

    • received_at timestamp in steady_clock domain for TTL computation

  2. BeaconHintStore - Thread-safe TTL-based storage for beacon hints

    • update() inserts or refreshes a hint; returns false if capacity is full for new entity IDs

    • evict_and_snapshot() atomically removes expired hints and returns a consistent snapshot

    • Three-state lifecycle: ACTIVE (within TTL), STALE (past TTL but before expiry), EXPIRED (evicted)

    • Configurable: TTL (default 10s), expiry (default 300s), max capacity (default 10,000 hints)

    • Protected by std::shared_mutex for concurrent reads during get()

  3. BeaconEntityMapper - Maps stored hints to gateway IntrospectionResult

    • Takes a snapshot from BeaconHintStore and the current IntrospectionInput

    • Builds per-entity metadata JSON from hint fields

    • Applies function membership: if a hint declares function_ids, the mapper updates the corresponding Function entities’ host lists

    • Optionally allows new entity creation (allow_new_entities config flag)

  4. BeaconValidator - Input sanitization for incoming beacon hints

    • Validates entity_id format (required, max length, allowed characters)

    • Truncates oversized string fields rather than rejecting the entire hint

    • Enforces limits on collection sizes (function_ids, depends_on, metadata entries)

    • Returns valid=false only when entity_id itself is invalid

  5. BeaconResponseBuilder - Builds JSON responses for beacon metadata HTTP endpoints

    • Constructs the response payload served by x-medkit-beacon vendor extension endpoints

    • Includes hint data plus status (active/stale) and last-seen timestamp

Design Decisions

Shared Library, Not Plugin

The beacon common code is a static library linked into the topic and parameter beacon plugins, not a standalone plugin. This avoids an extra shared library load at runtime while keeping the transport-specific logic (topic subscription vs. parameter polling) in separate plugin .so files.

Three-State Hint Lifecycle

Hints transition through ACTIVE, STALE, and EXPIRED states rather than using a simple present/absent model. The STALE state allows the gateway to report that a node was recently seen but is no longer actively sending beacons - useful for distinguishing temporary network hiccups from actual node departures.

Capacity Limits

The store enforces a hard cap on the number of tracked hints (default 10,000) to prevent memory exhaustion from misbehaving nodes or DDoS scenarios. When capacity is reached, new entity IDs are rejected while existing hints can still be refreshed.

Validation Strategy

The validator is lenient by design: only an invalid entity_id causes rejection. Other fields are sanitized (truncated, pruned) so that partially malformed beacons still contribute useful discovery information rather than being silently dropped.
