ros2_medkit_linux_introspection

This section contains design documentation for the ros2_medkit_linux_introspection package.

Overview

The ros2_medkit_linux_introspection package provides three gateway plugins that enrich discovered entities with Linux-specific runtime metadata. Each plugin implements both the GatewayPlugin and IntrospectionProvider interfaces, registering vendor extension endpoints (x-medkit-*) and feeding metadata into the discovery merge pipeline.

Architecture

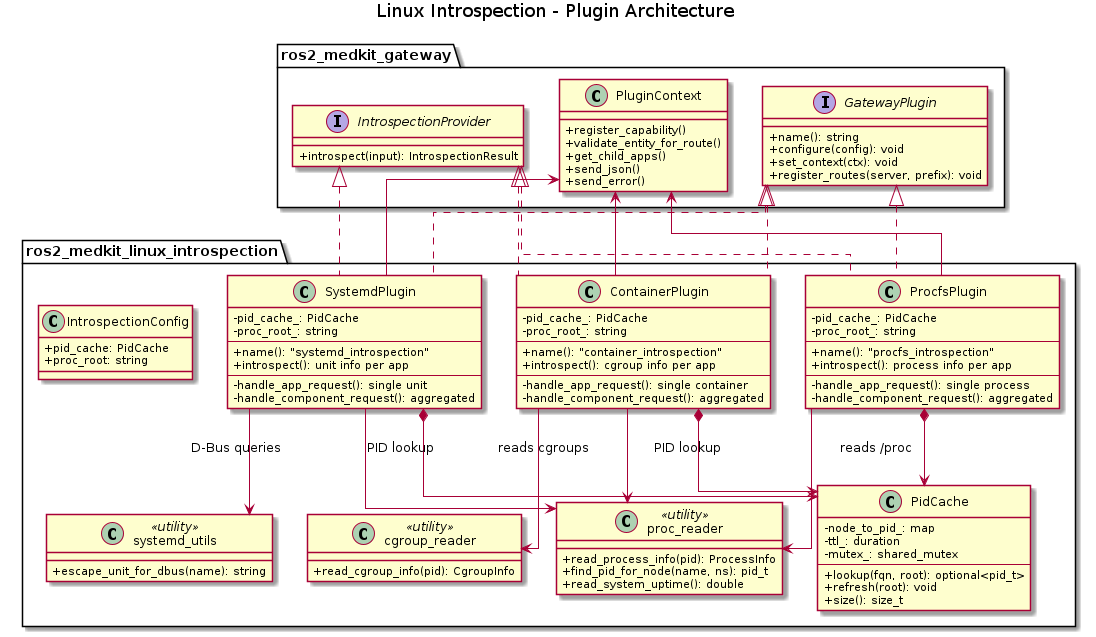

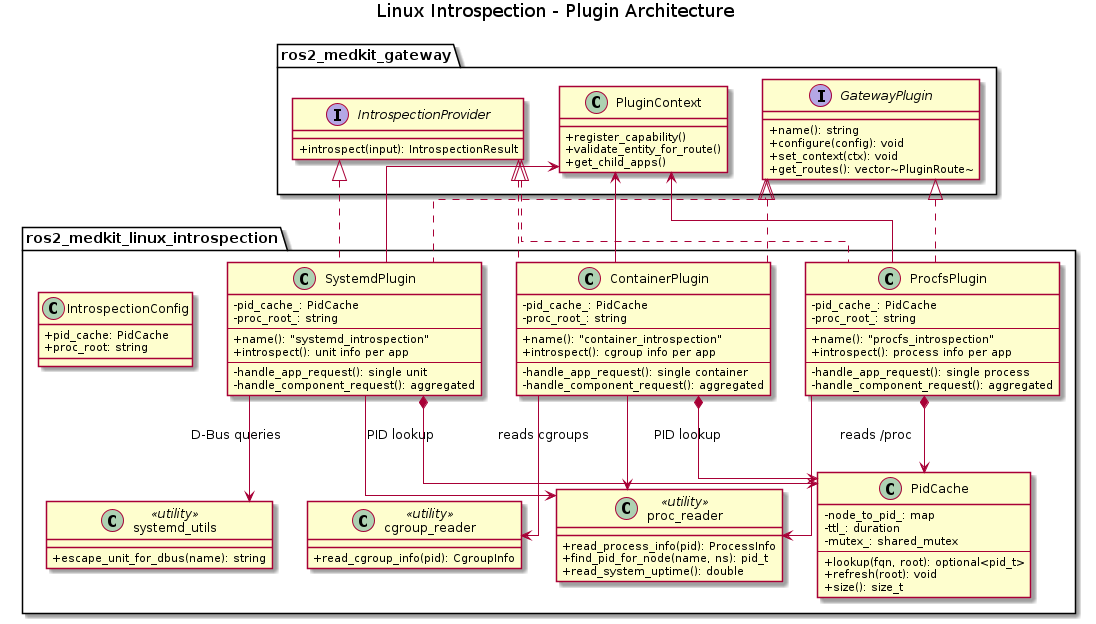

The following diagram shows the three plugins and their shared infrastructure.

@startuml ros2_medkit_linux_introspection_architecture skinparam linetype ortho skinparam classAttributeIconSize 0 title Linux Introspection - Plugin Architecture package "ros2_medkit_gateway" { interface GatewayPlugin { +name(): string +configure(config): void +set_context(ctx): void +register_routes(server, prefix): void } interface IntrospectionProvider { +introspect(input): IntrospectionResult } class PluginContext { +register_capability() +validate_entity_for_route() +get_child_apps() +send_json() +send_error() } } package "ros2_medkit_linux_introspection" { class ProcfsPlugin { - pid_cache_: PidCache - proc_root_: string -- + name(): "procfs_introspection" + introspect(): process info per app -- - handle_app_request(): single process - handle_component_request(): aggregated } class SystemdPlugin { - pid_cache_: PidCache - proc_root_: string -- + name(): "systemd_introspection" + introspect(): unit info per app -- - handle_app_request(): single unit - handle_component_request(): aggregated } class ContainerPlugin { - pid_cache_: PidCache - proc_root_: string -- + name(): "container_introspection" + introspect(): cgroup info per app -- - handle_app_request(): single container - handle_component_request(): aggregated } class PidCache { - node_to_pid_: map - ttl_: duration - mutex_: shared_mutex -- + lookup(fqn, root): optional<pid_t> + refresh(root): void + size(): size_t } class "proc_reader" as PR <<utility>> { + read_process_info(pid): ProcessInfo + find_pid_for_node(name, ns): pid_t + read_system_uptime(): double } class "cgroup_reader" as CR <<utility>> { + read_cgroup_info(pid): CgroupInfo } class "systemd_utils" as SU <<utility>> { + escape_unit_for_dbus(name): string } class IntrospectionConfig { + pid_cache: PidCache + proc_root: string } } ProcfsPlugin .up.|> GatewayPlugin ProcfsPlugin .up.|> IntrospectionProvider SystemdPlugin .up.|> GatewayPlugin SystemdPlugin .up.|> IntrospectionProvider ContainerPlugin .up.|> GatewayPlugin ContainerPlugin .up.|> IntrospectionProvider ProcfsPlugin *--> PidCache SystemdPlugin *--> PidCache ContainerPlugin *--> PidCache ProcfsPlugin --> PR : reads /proc ProcfsPlugin --> PluginContext SystemdPlugin --> PR : PID lookup SystemdPlugin --> SU : D-Bus queries SystemdPlugin --> PluginContext ContainerPlugin --> CR : reads cgroups ContainerPlugin --> PR : PID lookup ContainerPlugin --> PluginContext @enduml

Linux Introspection Plugin Architecture

Plugins

  1. ProcfsPlugin (procfs_introspection) - Process-level metrics from /proc

    • Registers x-medkit-procfs capability on Apps and Components

    • Reads /proc/{pid}/stat, /proc/{pid}/status, /proc/{pid}/cmdline

    • Exposes: PID, PPID, state, RSS, VM size, CPU ticks, thread count, command line, exe path

    • Component-level endpoint aggregates processes, deduplicating by PID (multiple nodes may share a process)

  2. SystemdPlugin (systemd_introspection) - Systemd unit metadata via sd-bus

    • Registers x-medkit-systemd capability on Apps and Components

    • Maps PID to systemd unit via sd_pid_get_unit()

    • Queries unit properties over D-Bus: ActiveState, SubState, NRestarts, WatchdogUSec

    • Component-level endpoint aggregates units, deduplicating by unit name

    • Uses RAII wrapper (SdBusPtr) for sd-bus connection lifetime

  3. ContainerPlugin (container_introspection) - Container detection from cgroups

    • Registers x-medkit-container capability on Apps and Components

    • Reads /proc/{pid}/cgroup to extract container ID and runtime (Docker, containerd, Podman)

    • Component-level endpoint aggregates containers, deduplicating by container ID

    • Returns 404 for entities not running in a container (not an error - just bare-metal)

PidCache

All three plugins share the PidCache class for mapping ROS 2 node fully-qualified names to Linux PIDs. The cache:

  • Scans /proc for processes whose command line matches ROS 2 node naming patterns

  • Uses TTL-based refresh (default 10 seconds, configurable via pid_cache_ttl_seconds)

  • Is thread-safe via std::shared_mutex (concurrent reads, exclusive writes)

  • Each plugin instance owns its own PidCache (no cross-plugin sharing, avoids lock contention)

The proc_root configuration parameter (default /) allows testing with a mock /proc filesystem without running as root.

Vendor Extension Endpoints

Each plugin registers REST endpoints following the SOVD vendor extension pattern:

GET /api/v1/apps/{entity_id}/x-medkit-procfs
GET /api/v1/components/{entity_id}/x-medkit-procfs
GET /api/v1/apps/{entity_id}/x-medkit-systemd
GET /api/v1/components/{entity_id}/x-medkit-systemd
GET /api/v1/apps/{entity_id}/x-medkit-container
GET /api/v1/components/{entity_id}/x-medkit-container

All endpoints validate the entity via PluginContext::validate_entity_for_route() and return SOVD-compliant error responses on failure.

Design Decisions

Three Separate Plugins

Each Linux subsystem (procfs, systemd, cgroups) is a separate plugin rather than one monolithic “linux” plugin. This allows deployers to load only what they need - for example, a containerized deployment may only want the container plugin, while a systemd-managed robot would use the systemd plugin. Each plugin is an independent shared library (.so) loaded at runtime.

IntrospectionProvider Dual Interface

Each plugin implements both GatewayPlugin (for HTTP routes and capabilities) and IntrospectionProvider (for the discovery merge pipeline). The introspect() method feeds metadata into the entity cache during each discovery cycle, while the HTTP routes serve on-demand queries for individual entities. The C export function get_introspection_provider() enables the plugin loader to obtain both interfaces from a single .so file.

Configurable proc_root

The proc_root parameter defaults to / but can be overridden to point at a mock filesystem tree. This enables unit testing of /proc parsing logic without root privileges or actual processes, and supports containerized gateway deployments where the host /proc is mounted at a non-standard path.
