DTO Contract Layer

This document describes the typed DTO contract layer of the ros2_medkit_gateway. It covers the problem it solves, the architecture of the contract primitives, the three code-generation visitors, the OpenAPI schema registry, the typed router that consumes the contract, the named escape hatches for non-DTO routes, the typed-only Provider ABI, and the workflow for adding new endpoints.

Overview

Before this layer existed, a handler in the gateway had three independent artefacts that described the same wire payload:

1. Hand-written nlohmann::json construction in the handler body.

2. A SchemaBuilder::*_schema() factory that produced the matching OpenAPI JSON Schema object.

3. An XMedkit fluent builder that assembled the x-medkit vendor extension block.

These three artefacts had no mechanical relationship. A field added to the handler body had to be separately added to the schema factory and, if it appeared in the x-medkit block, also to the fluent builder. Because the compiler had no way to enforce the relationship, schemas and wire payloads drifted silently. The OpenAPI spec served at /api/v1/docs described a different shape than what the endpoint actually returned.

The DTO contract layer resolves this by making the C++ struct the single source of truth. The same descriptor tuple that defines the struct is used by three template visitors to produce the wire JSON, the OpenAPI schema, and the request-body parser. Adding a field to the struct and its descriptor automatically updates all three outputs.

The same argument governs everything the document says about a route, not just about a payload, and it does not always reach the same strength. OpenAPI Derivation - The Rule and the Tiers states the rule that produced the mechanisms below - if a fact can be derived from the handler it must not be declared separately, and where it cannot the declaration lives at a seam that also does the work - and records which enforcement tier each mechanism actually reaches. Read it first if the question is “what stops this from going stale?” rather than “how do I use it?”.

Architecture

The contract is implemented entirely as header-only templates in include/ros2_medkit_gateway/dto/. No virtual dispatch, no runtime type erasure, and no separate code-generation step are needed.

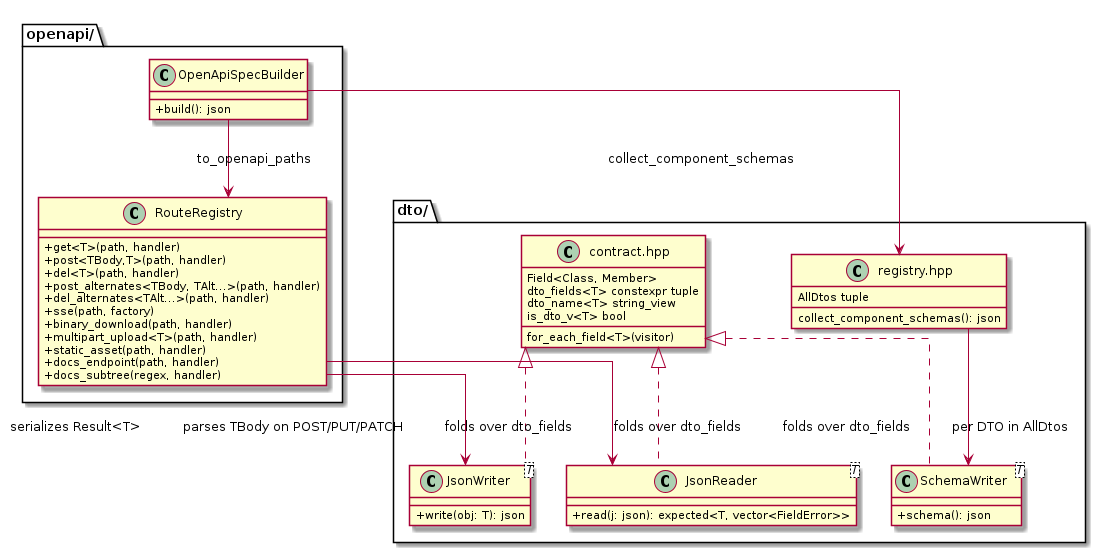

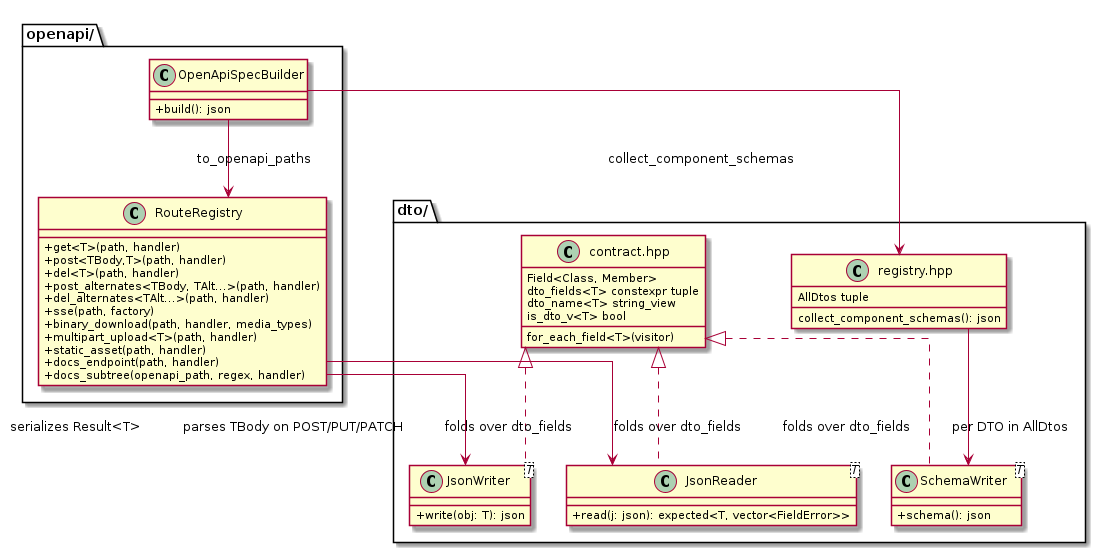

DTO Contract Layer - Component Relationships

Field Descriptor (Field<C, M>)

Each field in a DTO is described by a Field<Class, Member> aggregate defined in contract.hpp:

template <class Class, class Member>
struct Field {
  std::string_view key;          // JSON wire key
  Member Class::*ptr;            // pointer-to-member
  Presence presence;             // kRequired or kOptional
  std::string_view description;  // OpenAPI property description
  const std::string_view * enum_values;  // allowed string values (or nullptr)
  std::size_t enum_count;
  FieldConstraints constraints;  // minimum / maximum / maxLength / pattern / format
};

Fields are never constructed directly. The field() and field_enum() factory functions deduce the class and member types from the pointer-to-member argument:

// Required string field
field("fault_code", &FaultListItem::fault_code)

// Optional field (presence deduced from std::optional<> member type)
field("description", &FaultListItem::description)

// Enum-constrained field with inline constexpr string_view array
field_enum("status", &FaultStatus::aggregated_status, kFaultAggregatedStatusValues)

Schema Constraints (FieldConstraints)

A field can publish JSON Schema keywords its C++ type does not imply. Every member of FieldConstraints is unset by default, so a field() call that names none emits what it always did. C++17 has no designated initialisers, so a call site spells the unset members out:

field("max_entries", &LogConfiguration::max_entries,
      "Ceiling on how many entries one GET answers with...",
      FieldConstraints{/*minimum=*/1.0, /*maximum=*/10000.0, {}, {}, {}})

Only declare a bound the handler enforces unconditionally. A ceiling the gateway reads from a ROS parameter is deployment configuration, and publishing it as maximum makes the document wrong on any deployment that changed it - those belong in the description. AcquireLockRequest.lock_expiration is the worked example: minimum: 1 is a constraint because LockManager always rejects a non-positive expiration, while the 3600 s ceiling is locking.default_max_expiration and is described rather than declared.

Numeric width is derived, not declared: schema_of emits format: int64 for a signed 64-bit integral. Signedness is part of the test because sizeof(U) == 8 alone also matches uint64_t and std::size_t, whose upper half the format excludes. Set FieldConstraints::format only for a string format the type cannot imply, such as date-time.

Constraints and enum are attached through one lambda in derived_object_schema, so their placement cannot drift: an optional member renders as {anyOf: [<inner>, {type: null}]} and every validation keyword goes on the non-null branch anyOf[0], because one written at the property level would apply to the null branch too and reject the null that anyOf advertises. Required members have no anyOf and take the keyword at the top level. The description is the exception and stays at the property level either way: it describes the field, not one branch of its schema.

An enum is not always the right way to publish a vocabulary. Where the handler answers an unrecognised value with an error richer than “value not in allowed set” - ExecutionUpdateRequest.capability names supported_capabilities for the backend in front of the caller, and LogConfiguration.severity_filter’s 400 lists the accepted severities - a schema-level enum makes JsonReader reject the request first and replaces that error with a generic body-validation failure. Both fields therefore publish their vocabulary as prose. Use field_enum where the parser rejecting the value is the whole of the validation.

dto_fields<T> - the Descriptor Tuple

The descriptor tuple for a type T is a constexpr specialization of the variable template dto_fields<T>:

template <>
inline constexpr auto dto_fields<FaultListItem> = std::make_tuple(
    field("fault_code", &FaultListItem::fault_code),
    field("severity",   &FaultListItem::severity),
    field("description",&FaultListItem::description),
    field("status",     &FaultListItem::status));

The primary template is a sentinel pointer (detail::not_a_dto<T>*) so the type is identifiable for is_dto_v checks without forcing instantiation of not_a_dto<T> at every probe. The is_dto_v<T> trait returns true only when a specialization exists, which gates all three visitors at compile time.

Placement rule: every dto_fields<X> and dto_name<X> specialization must appear in the same header as the struct declaration. A translation unit that instantiates a visitor before seeing the specialization silently binds the sentinel, producing a latent ODR-adjacent bug.

dto_name<T> - Schema Registry Key

Each DTO names itself in components/schemas via a constexpr string_view specialization:

template <>
inline constexpr std::string_view dto_name<FaultListItem> = "FaultListItem";

The name is used by SchemaWriter when emitting $ref cross-references and by collect_component_schemas() when populating the OpenAPI registry.

The Three Visitors

All three visitors fold over dto_fields<T> using for_each_field<T>(), which calls std::apply over the constexpr tuple. The fold is entirely at compile time; no runtime reflection is involved.

JsonWriter (json_writer.hpp)

Serializes a DTO instance to a nlohmann::json object. Optional members that have no value are omitted from the output. Nested DTO members are recursively serialized. std::vector members become JSON arrays. std::variant members are serialized as the active alternative. nlohmann::json members pass through unchanged.

SchemaWriter (schema_writer.hpp)

Generates the OpenAPI 3.1 components/schemas entry for a type. Each field maps to a JSON Schema property. Required fields are listed in the required array. Nested DTO types become $ref entries pointing to the named schema. Optional wrapper types are unwrapped before schema generation. Enum-constrained string fields include an enum array.

JsonReader (json_reader.hpp)

Parses and validates a nlohmann::json object into a DTO instance. Collects all field-level errors rather than short-circuiting on the first failure, returning tl::expected<T, std::vector<FieldError>> on completion. Required fields missing or null produce a FieldError. Unknown extra fields in the input are silently ignored (lenient parsing). Enum-constrained string fields are validated against the allowed set after decoding.

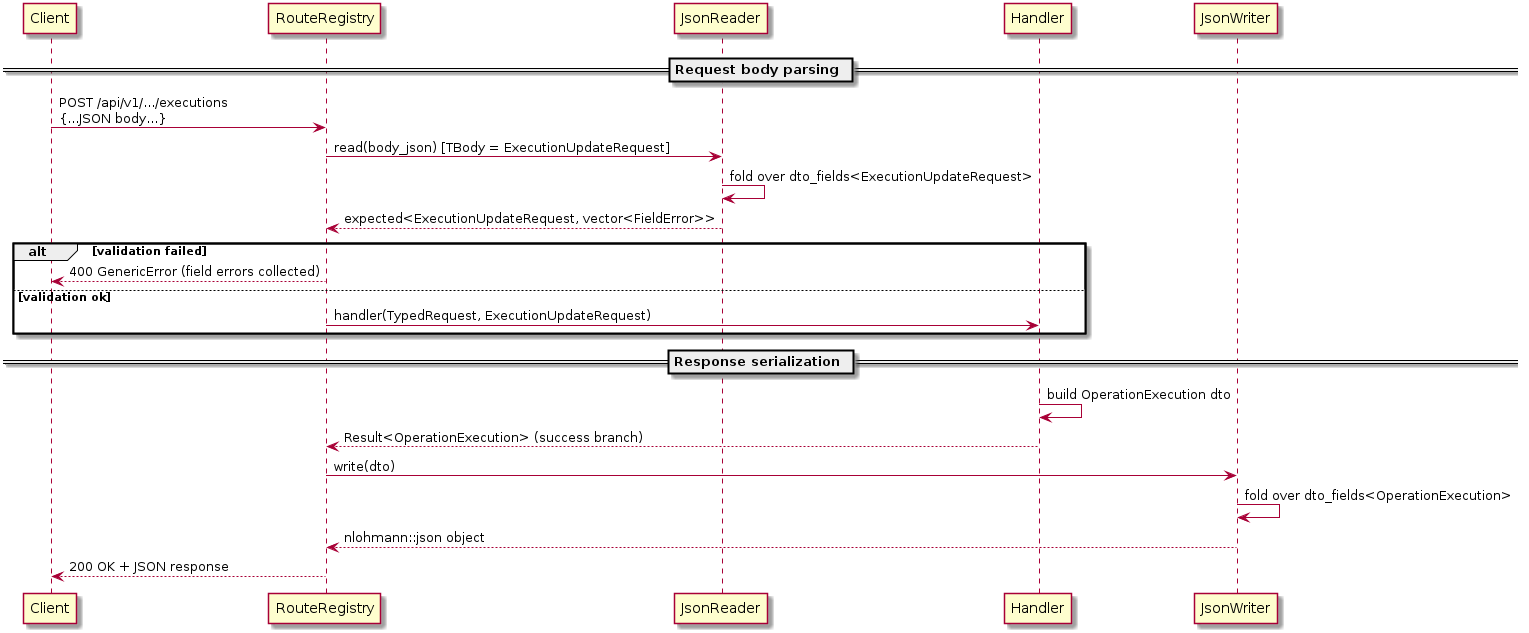

Request Lifecycle through the Typed Router

AllDtos Registry (registry.hpp)

AllDtos is a single std::tuple listing every named DTO type:

using AllDtos = std::tuple<
    GenericError,
    AreaListItem, AreaDetail,
    FaultListItem, FaultDetail, FaultStatus,
    OperationItem, OperationExecution,
    // ... all other domain DTOs ...
>;

The free function collect_component_schemas() iterates AllDtos at compile time (via std::index_sequence) and calls SchemaWriter<T>::schema() for each type. SchemaBuilder::component_schemas() (in src/openapi/schema_builder.cpp) returns exactly this map: every entry in components/schemas is generated from AllDtos, with no hand-written survivors merged in. No runtime loop over a dynamic registry is required.

The hand-written schema factories that remain on SchemaBuilder - from_ros_msg / from_ros_srv_request / from_ros_srv_response (for dynamic ROS 2 payloads whose field names are not known at compile time) and generic_object_schema - are no longer part of the components/schemas map. They are called by the path builder (src/openapi/path_builder.cpp) to emit inline operation schemas for the per-topic / per-service / per-action routes, whose request and response shape is derived from the live ROS 2 type rather than from a named DTO.

The Collection<T> template is a generic DTO for paginated list responses ({"items": [...]}). It is specialized for each element type in AllDtos and given a name like "FaultList" via a dto_name specialization.

Typed Router

Every built-in route is registered through RouteRegistry using a typed overload that names its DTOs in the template parameter list. The framework owns request decoding, response writing, and status-code dispatch; handlers never touch httplib::Response.

Handler Signatures

A typed handler returns http::Result<TResponse> (which is tl::expected<TResponse, ErrorInfo>) and receives a TypedRequest plus, on POST / PUT / PATCH overloads, an already-parsed TBody:

// GET /entity/{id}/resource -> 200 + JSON body
reg.get<dto::MyResponse>(
      "/entity/{id}/resource",
      [this](http::TypedRequest req) -> http::Result<dto::MyResponse> {
        // ... build dto::MyResponse or return tl::make_unexpected(err) ...
      })
   .tag("MyTag")
   .summary("...")
   .operation_id("getMyResource");

// POST /entity/{id}/resource with parsed body -> 200 + JSON body
reg.post<dto::MyCreateRequest, dto::MyResponse>(
      "/entity/{id}/resource",
      [this](http::TypedRequest req, dto::MyCreateRequest body)
          -> http::Result<dto::MyResponse> {
        // ... return result ...
      });

Success Status Lives in the Return Type

A handler that completes with something other than 200 says so in its return type, not at runtime. http::Created<T> declares 201 and http::Accepted<T> declares 202; both are transparent wrappers whose payload is T:

reg.post<dto::TriggerCreateRequest, http::Created<dto::Trigger>>(
      "/{entity}/triggers",
      [](http::TypedRequest, dto::TriggerCreateRequest)
          -> http::Result<http::Created<dto::Trigger>> {
        dto::Trigger t;
        return http::Created<dto::Trigger>{std::move(t)};
      });

The registry reads http::dto_alternate_status<TResponse> for the status and http::status_payload_t<TResponse> for everything else - the schema $ref, the has_dto_shape_v assertion and the body writer. An unwrapped TResponse is its own payload, so a plain DTO still means 200 and http::NoContent still means 204. http::Accepted<http::NoContent> is the shape for an accepted asynchronous transition that sends no body (202, empty).

This is what keeps the document honest: the declared status and the status on the wire come from one type, so they cannot disagree. Writing the status at the call site instead - .response(201, ...) beside a handler that returns 200 - is what previously let 45 operations advertise a success status their handler could never emit.

ResponseAttachments remains the channel for everything that is not the status: extra headers on the success response, and the rare runtime status override. The pair-returning overloads carry it alongside the (possibly wrapped) response:

reg.post<dto::Req, http::Created<dto::Resp>>(
      "/...",
      [](http::TypedRequest, dto::Req)
          -> http::Result<std::pair<http::Created<dto::Resp>, http::ResponseAttachments>> {
        dto::Resp r;
        http::ResponseAttachments att;
        att.with_location(api_path("/resources/123"));
        return std::make_pair(http::Created<dto::Resp>{std::move(r)}, std::move(att));
      });

When the attachments carry no status_override, the framework falls back to dto_alternate_status<TResponse> - never to a literal 200/204 - so wrapping a paired response is enough to move both the wire status and the declared one.

with_location(uri) is the typed form of the Location attachment, and it is not merely sugar. The registry declares a Location response header on every derived 201 and 202, because Created<T> / Accepted<T> already told it the status - so a handler behind one of those return types that does not call with_location publishes a header it never sends.

The obligation is enforced where it can be. The non-attachments overloads - get / post / put / patch / del<TResponse> and the non-attachments post_alternates / del_alternates - give a handler no channel for a header at all, so they static_assert against a TResponse (or a variant alternate) whose status is 201 or 202. A route that would advertise Location and be structurally unable to send it does not compile. What the type system cannot see is a pair-returning handler that simply forgets the call; that half is covered by the document contract test, which asserts every declared 201/202 carries the header and that a real 201 puts it on the wire. uri is the absolute, API-prefixed path form every href in the document uses: build it with api_path(...), or pass req.path() + "/" + id when the new resource is a child of the request path (TypedRequest::path() is already prefixed). Writing the "/api/v1/" literal by hand is what let three spellings of the same URI accumulate across the handlers.

The framework writes the response body via JsonWriter<status_payload_t<TResponse>>, applies the attachments, and renders any error branch via the route’s configured ErrorRenderer (kSovdGenericError by default; the /auth/* routes opt into kOAuth2Error to emit the RFC 6749 wire shape).

The document reads the same field. to_openapi_paths() selects between the GenericError and OAuth2Error component responses from route.error_renderer_, so the declared error body and the rendered one come from one fact rather than from a hand-written list that can go stale. Three statuses deliberately bypass that selection, because they are not produced by the route’s renderer at all:

• 416 is written by cpp-httplib before routing, with no body, and RESTServer::setup_global_error_handlers fills it with a GenericError. That happens on the /auth/* routes too, so 416 is declared as a GenericError everywhere.

• 401 / 403 come from AuthMiddleware, also ahead of any handler. Both serialise AuthErrorResponse::to_json() = {error, error_description}, which is the RFC 6749 shape - so the shared Unauthorized and Forbidden component responses carry the OAuth2Error schema on every route, not just the auth ones. They keep their own components because only there can their WWW-Authenticate header live: no handler return type produces it.

RateLimited (429) stays a GenericError: the limiter emits the SOVD shape, unlike the two auth statuses beside it.

Type-System Guarantees

Each typed overload carries a static_assert(dto::has_dto_shape_v<T>) gate, so any non-DTO type passed as TResponse or TBody rejects at compile time with a contract-aware diagnostic. has_dto_shape_v<T> is true when either is_dto_v<T> (a regular field-walking DTO) or is_opaque_dto_v<T> (a hand-written opaque DTO envelope) is true; the NoContent marker is the third accepted shape and triggers an empty-body branch in write_success_body. The gate is applied to status_payload_t<TResponse>, so Created<T> / Accepted<T> are accepted exactly when T is - the wrappers deliberately have no dto_fields / dto_name specialization of their own.

The OpenAPI status and schema slot for every typed route is wired automatically from TResponse and TBody (and from the alternates in post_alternates<TBody, TAlt...> / del_alternates<TAlt...>). The registry calls RouteEntry::response<status_payload_t<TResponse>>(dto_alternate_status<TResponse>::value, ...) / RouteEntry::request_body<TB>("") so neither the status nor the schema can drift from the handler: the same C++ type names all three.

Hand-attached .response(...) calls are therefore reserved for statuses the framework cannot see - error statuses beyond the blanket 400/404/500 set, and the request_body(...) annotation the rare body-less typed post / put overloads need when they parse non-JSON bodies (form-urlencoded auth). Never hand-attach a 2xx: it restates something the return type already decides, and if the two disagree the route publishes both.

To author the prose a generated client shows for a success response, use .success_description("Trigger created"). It rewrites the description of the already-derived 2xx and touches neither the status nor the schema. Without it the framework publishes a status-appropriate default (“Created”, “Accepted”, “No content”, “Successful response”).

Its sibling .success_schema<T>() rewrites the schema of the already-derived 2xx, again leaving the status and the description alone. It exists for the few routes whose C++ return type is a pass-through envelope (FaultListResult and friends) purely so a backend’s JSON survives byte-for-byte, while the wire shape on that particular route is nonetheless fixed. GET /faults is the shipped example: it returns FaultListResult so the FaultManager’s items and the peers’ merged items are never re-parsed, and it publishes FaultList because - unlike the per-entity list - it has no plugin-delegation branch and can only ever answer with that shape. Using it on a route that does delegate to a plugin would promise fields no plugin sends. A call that finds no single declared 2xx is dropped and reported by validate_completeness().

Routes whose handler genuinely returns a std::variant - the post_alternates / del_alternates helpers - legitimately declare more than one 2xx. Those helpers call RouteEntry::mark_alternates() themselves, which publishes the x-medkit-alternates: true operation extension, so the document contract test can tell a real variant from a route that declares a status it cannot return. Nothing else may set that marker.

There is exactly one other way a second 2xx is reachable, and it carries its own marker rather than reusing that one. reg.binary_download handlers never assign a status, so cpp-httplib answers 200 or 206 Partial Content depending on whether the request carried a Range at all - it also fills in Content-Range. Note “at all”, not “a satisfiable one”: a Range that parses but asks for bytes past the end of the file still yields 206, and one that does not parse is rejected with 416 before routing, so by the time this decision is made every surviving Range is a parseable one. The helper therefore declares both statuses and calls RouteEntry::mark_partial_content(), publishing x-medkit-partial-content: true. Two markers, not one: there the handler chooses between variant members, here the handler returns one thing and the HTTP layer decides how to frame it. A single marker covering both would let the contract test wave through a route that declares a status it can never return. Nothing outside binary_download may set it.

Media types

A response declared through the JSON overloads is published under application/json, with the content entry omitted entirely when the schema is empty - that is what keeps a 204 body-less rather than giving it a schema: null.

Non-JSON bodies use the four-argument overload response(status, desc, schema, content_types). Each media type becomes its own content entry holding an empty Media Type Object. The missing schema is the declaration, not an omission, for two independent reasons:

• {"type": "string", "format": "binary"} is an OpenAPI 3.0 idiom. 3.1 aligned with JSON Schema 2020-12, where format: binary carries no meaning and type: string actively misdescribes raw bytes.

• The SSE families emit three different frame shapes, so any single schema would be wrong for two of them.

The schema argument exists only for signature symmetry and must be empty; a caller that passes one has it dropped rather than attached to a media type it may not describe, and the miscall is reported by validate_completeness().

Both completeness gates - validate_completeness() and the served-document check in test_health::test_docs_spec_completeness - treat a 2xx carrying a non-JSON media type as complete without a schema. That replaced an older rule that exempted a route when its summary contained “SSE” or “stream”, so the exemption now follows what a route declares rather than what it is named.

Open media-type sets. Where the served type is not enumerable the declaration says so, by listing the derivable types and */*. The bulk-data download is the case in the tree: BulkDataHandlers::download_media_types() names the three types get_rosbag_mimetype() can return, then */* for the store-backed categories, which serve back whatever media type the uploading client put on its multipart part. Declaring only the concrete types would under-declare the route; declaring only */* would throw away the half that is derivable.

That declaration is checked against a run, not a review. The integration suite downloads real artifacts and asserts the served Content-Type against the document, distinguishing the two halves: a rosbag type must match a named content key (matching only via */* fails), while a client-supplied type may match via the catch-all, which the test also asserts is present. Both directions have been shown to fail on an injected defect.

Further RouteEntry knobs shape the published operation:

• errors({409, 423}) - declare error statuses this route can emit beyond the blanket set; each is rendered as a GenericError response $ref. Statuses below 400 are ignored and reported by validate_completeness(), because a success status belongs in the return type, not here. This is the one knob whose completeness is checked against a run rather than a review - see Emitted-status recorder below.

• only_status(code, desc) - this route has exactly one outcome. Clears every other response and suppresses the blanket 400/404/500 injection. The auth 401/403 refs stay when authentication is enabled: they come from the middleware ahead of the handler and are reachable on every route. A code >= 400 is published with the GenericError schema attached, because that is what the handler puts on the wire; publishing it bare would describe a bodyless response a generated client then receives JSON into. only_status is not sticky with respect to errors(): a call placed after it re-declares those statuses, so state the single outcome last. It is safe with respect to gated_on() in either order - a live gate is a second reachable outcome, so only_status re-declares the gate’s status rather than dropping it.

• response_header(status, {name, description, schema}) - declare a header this route sets on an already declared status. A header is a property of a response, so a call aimed at a status no response declares is dropped and reported by validate_completeness() rather than minting a description-less response object for a status the handler cannot return (a release build compiles assert out, so a precondition check there would be no check at all). Re-declaring the same header name on the same status replaces it, which is how a route overrides the framework’s automatic Location prose. Most routes never call it: Location comes from the status, and the sse / binary_download helpers declare their own framework-owned headers (Cache-Control and X-Accel-Buffering; Content-Disposition and Accept-Ranges) next to the code that sets them. Declared headers carry no required flag - OpenAPI response headers are optional by definition, which matches headers the gateway sets conditionally.

• description(text) - the behaviour a caller has to know that the field names and the summary do not carry: what an omitted filter defaults to, what a 202 does and does not promise, what the answer is silently truncated to. Required on every operation, and gated: test_openapi_contract.test.py::test_every_operation_has_a_description fails on any operation that ships with only a summary.

• body_example(json) - publish a working request body a caller can copy out of the document, emitted as requestBody.content[<primary media type>].examples.default.value. A $ref names the fields and their types; it does not say that trigger_condition needs a condition_type key, or that interval is a word rather than a number. Examples live here and nowhere else: dto_fields<T> is inline constexpr and could hold only a string literal per property, and putting one on the schema as well would be a second source for one concept. Attaches to the primary body only - the extra encodings accepts() adds are the same payload in another wire format, where a JSON example would not parse. Whether the route has a body is read at emission, not at the call, so the fluent chain can order the two either way; a route with no body at all drops the example and validate_completeness() reports it rather than minting a body the route does not take. test_openapi_contract.test.py::test_non_trivial_request_bodies_carry_an_example pins the App-entity variant of each route family that carries one.

• gated_on(available, unavailable) - the route’s backing feature can be absent. available is re-evaluated per request (a manager can appear after registration), and when it is false the framework answers with unavailable rendered through this route’s ErrorRenderer. The call also declares unavailable.http_status via errors(), which is the point: a gate written as an inline if (!handlers_) return tl::unexpected(...) inside the handler lambda is invisible to the document generator, so the published operation omitted the 501 it answers with in practice.

  The guard runs inside the typed wrapper, at the same place the inline if used to sit - after the request body has been parsed. A malformed payload sent to a gated-off route therefore still answers 400, not the gate’s status.

  Feature gates the registration cannot see - a handler that answers 501 because its own backend is unconfigured, e.g. LockHandlers without a lock manager - are declared with plain errors({501}) until a handler-level seam exists.

• lock_guarded() - this route takes part in entity locking. One call publishes all three halves of that contract: the X-Client-Id request header the handler reads, the 409 it answers when the entity’s collection is locked by a different client, and an x-medkit-lock-guarded: true operation extension. The header is declared optional on purpose - a caller that sends none is an anonymous client, which succeeds while nothing is locked and is refused once something is; declaring it required would describe a gateway that rejects the header-less request outright, which is not what happens.

  Unlike everything else in this section, this one is declared and not derived, and its test only checks half of it. The header read that decides the 409 lives in HandlerContext::validate_lock_access, which 12 handlers across 6 files call, and the document is built from the live route table when /docs is served rather than captured at registration time - so a registration cannot see through that call, and no accessor on TypedRequest changes that. test_openapi_contract.test.py::test_lock_guarded_set_matches_the_handlers pins the marked set against EXPECTED_LOCK_GUARDED, a hand-maintained literal committed next to the test. That catches the document drifting away from the list: dropping a .lock_guarded() from a registration turns the suite red. It does not catch the list drifting away from the handlers - a new route that calls validate_lock_access and forgets both the decorator and the list entry passes every gate. Adding a lock check to a handler means editing that list by hand.

  Two companion tests keep the marker from degenerating into a label: test_lock_guarded_routes_declare_the_contract asserts every marked operation really publishes the header and the 409, and test_lock_guarded_route_answers_the_409_it_declares drives a real locked write through the gateway so the declared status is one the wire returns.

  DELETE /faults is the deliberate near-miss: it reads X-Client-Id like every lock-guarded write but never answers 409 - it skips faults on entities locked by somebody else and still answers 204. Nothing on the response says which ones were skipped; X-Medkit-Local-Only on that 204 is about aggregated peers, not locks. It therefore declares the header with its own prose via header_param and does not call lock_guarded(); marking it would publish a status it cannot return.

• fan_out_aware() - this route reads the X-Medkit-No-Fan-Out request header, i.e. a client can ask it to answer from this gateway alone instead of merging aggregated peers. Carried by the routes whose handlers go through fan_out_collection or merge_peer_items. The declared schema is a bare string, not a boolean: the gateway tests has_header and never reads the value, so X-Medkit-No-Fan-Out: false still suppresses fan-out and a boolean schema would promise a generated client the opposite. Also hand-applied, with the same caveat as lock_guarded() above.

Every self-check named above (errors() handed a sub-400 status, response_header() aimed at an undeclared status, a lock_guarded() marker whose 409 a later only_status() cleared, a route with no tag or no success schema) reports through RouteRegistry::validate_completeness(), and RESTServer::report_route_metadata_issues() calls it once at start-up and logs what it finds. That call is what makes “reported” mean something: before it existed the issues were collected and discarded outside the unit tests, so the guarantee was words only.

The report is logged, never fatal. Every issue it can raise is a defect in the document, and a gateway that refused to serve traffic because one route is missing a summary would trade a documentation bug for an outage. Its job is to cover the route set a given configuration actually assembled - which feature gates and plugins make impossible to enumerate in a test - while the OpenAPI contract suite gates the shape of the document itself.

The report is not merely logged. It emits a summary line unconditionally - including for a clean route set, because a line that only appears on failure cannot be asserted on - and test_openapi_contract.test.py::test_shipped_route_set_declares_complete_metadata waits for that line with a zero error count, on the fixture that turns every optional feature gate on. That is what makes it a gate rather than a diagnostic nobody reads.

One consequence worth stating: the request-body check reads the registration, not the HTTP method - and only the attachments body-less put<TResponse> is exempt. That overload is the fire-and-forget state-machine kick (/updates/{id}/prepare, the lifecycle transitions), which genuinely takes no payload, and it records that on the entry. The plain body-less put and the body-less post are both not exempt: their callers read the body by hand (PUT /{entity}/data/{data_id} parses free-form JSON so plugin-owned entities can send shapes DataWriteRequest does not describe; /auth/* parses form-urlencoded), so a missing .request_body(...) there is a real gap the check must keep reporting.

A fourth status never reaches a handler either, and it is the only one gated on nothing: 416. cpp-httplib parses the Range header in Server::process_request, before routing, and rejects an unparseable one outright - on any path, including paths that do not exist. It is therefore declared on every operation, next to the blanket 400/404/500, rather than on the six download routes where sending a Range is useful. Those six carry the Range request parameter; the status itself is universal.

It is declared as a GenericError $ref like the other error statuses, and getting there needs both halves of the picture: cpp-httplib writes 416 with an empty body, and RESTServer::setup_global_error_handlers then fills any body-less error response with a GenericError. Reading only the vendored header suggests a body-less response and would have published one - the wire assertion in test_openapi_contract.test.py::test_range_rejection_is_answered_on_a_route_that_declares_it is what settles it, deliberately against /health rather than a download so the universality is the thing being proven.

Unlike the limiter’s 429 there is no configuration knob to gate it on, and unlike a handler status the emitted-status recorder cannot observe it - no handler runs. It is therefore a framework-level constant verified by RouteRegistryTest.EveryDocumentedRouteDeclaresTheFrameworkAnsweredRangeRejection plus that wire test, not by a recorded run. It also sits outside only_status(), for the same reason 401/403 do: that knob constrains what the handler can return.

Three further statuses never reach a handler: the auth middleware answers 401 and 403, and the rate limiter answers 429, both ahead of routing. No return type can describe them and no RouteEntry can carry their headers, so they are declared once as the shared component responses Unauthorized (carrying WWW-Authenticate), Forbidden and RateLimited (carrying Retry-After and the X-RateLimit-* trio) in OpenApiSpecBuilder. Routes reference them - 401/403 when set_auth_enabled(true), 429 when set_rate_limit_enabled(true) - so the document mentions a middleware status exactly when that middleware is live.

The 429 gate covers the rate limiter’s 429 and nothing else. A handler can answer 429 for a reason of its own - the script manager’s concurrent-execution limit is the one that exists today - and that one is reachable whether or not rate_limiting.enabled is set, so it is declared on its route with errors({429}) like any other handler status. Reading the two as one status makes the coverage rule below unsatisfiable: with the limiter off, the document would have to both omit 429 (no limiter) and declare it (the execution-start route answers it).

Where a route declares a status the middleware also owns, the route wins: add_response_ref is first-wins and the errors() loop runs first. So the execution-start route publishes its own GenericError 429 rather than the RateLimited component, and loses that component’s Retry-After and X-RateLimit-* headers; a lifecycle route that declares 403 shadows Forbidden the same way. OpenAPI allows one response object per status, so one description has to lose, and the route-specific one is the more useful. The body shape is unaffected - all three components reference the same GenericError schema - so what is lost is the header list and the prose. Pinned by RouteRegistryTest.RouteDeclaredStatusWinsOverTheMiddlewareComponent so the precedence is a decision on record rather than an accident of statement order.

A fourth gate, set_aggregation_enabled(bool), works the same way for peer federation. When an entity turns out to belong to a peer, the request is proxied from inside validate_entity_for_route, and the statuses the gateway itself writes there are 502 (peer unknown, unreachable, or its response over the size cap) and 503 (this gateway is shutting down and refuses to forward). They are declared on entity-scoped routes only - the entity id has to come from the path for the lookup to happen at all - and only when aggregation is on, because aggregation.enabled defaults false and the AggregationManager is only constructed when it is set, so with it off no entity can be remote. The gate reads the manager pointer rather than the parameter, so it cannot drift from the branch it describes. Unlike the middleware refs it also respects only_status: the forward happens inside the handler, so a route that declares itself single-outcome genuinely cannot reach it.

What is not declared there is the status a healthy peer returns, which is copied through verbatim. No finite errors({...}) describes “whatever the peer said”, and choosing what the document should promise is an aggregation-contract question rather than a documentation one.

Path parameters are synthesised, not declared

to_openapi_paths() walks each route’s {param} templates and emits a parameter object for every one the registration did not declare by hand, taking its prose - and, where there is one, its length constraint - from a table in that function. Almost every route relies on this: the entity-scoped routes are registered from loops over the four entity types, and only the fault-trigger routes and one app_id call path_param() explicitly.

That is why the constraint lives in the table rather than at the call sites. {fault_code} and {config_id} appear on several registrations each, none of which describes them today; a per-registration path_param(name, desc, schema) would have to be repeated on each and could be omitted on the next route added, whereas the table applies to every route carrying the template and there is nothing to forget.

That convenience carries a precondition, and it is the table’s one weakness: being keyed by parameter name, it cannot distinguish a route whose handler checks from one whose handler does not. A maxLength therefore goes in only where every handler behind the template rejects an over-long value unconditionally - 256 for fault_code, 512 for config_id (256-character entity id, :, 256-character parameter name).

The first version of this table did not hold that precondition: ConfigHandlers::delete_configuration was the one verb of the three that read config_id without measuring it, while GET and PUT both rejected, so four routes published a bound nothing enforced. The check was added rather than the maxLength removed - GET and PUT checking and DELETE not was a real inconsistency in the handler family.

Both rows are now driven on every verb they publish to, so the precondition is tested rather than assumed: test_configuration_api.test.py::test_06b_every_verb_rejects_an_oversized_config_id covers config_id on GET, PUT and DELETE, and test_faults_api.test.py::test_both_verbs_reject_an_oversized_fault_code covers fault_code on GET and DELETE. A new row needs its own, or the bound it publishes rests on a reading of the handlers rather than on a run.

One ordering difference the tests deliberately avoid depending on: FaultHandlers::clear_fault measures the code after validate_lock_access, where the configuration handlers measure before it. The published bound still holds - an over-long value is always rejected - but under a competing lock the fault route answers 409 rather than 400.

config_id is the one whose prose carries a contract rather than a restatement of its name. On an entity that aggregates several ROS 2 nodes the identifier is the app_id:param_name form the configurations list returns as each item’s id, and a write of a bare parameter name is refused as ambiguous; on a single-node entity it is the bare name and a colon is part of it. The earlier description - “the ROS 2 parameter name” - named exactly the form the write path rejects.

Emitted-status recorder

Everything above is a declaration. errors(), response_header(), lock_guarded() - each is something a person typed next to a registration, and each can fall behind the handler it describes without any test noticing. A new make_error(503, ...) in a handler nobody re-reads is invisible to every check in this document.

The recorder is the one mechanism that notices, and it maintains no list. include/ros2_medkit_gateway/http/detail/status_recorder.hpp compiles - in test builds only, gated on MEDKIT_STATUS_RECORDER, which CMakeLists.txt sets exactly when BUILD_TESTING is on - two observers:

• StatusRecordingScope, installed by RouteRegistry::register_all around every mounted handler, which records (method, OpenAPI templated path, status) for the status that actually reached httplib::Response. It is installed at the mounting point because that is the only place that knows both the route’s identity and everything the route can answer. This is the authoritative half: it sees the status the client receives, including one no make_error() built (a peer-forwarded status, a raw res.status write, the entity-not-found 404 that comes from validate_entity_for_route).

• a call in make_error() that records the file:line of each error construction, which is what lets a run report how much of the ~281-site error surface it exercised rather than implying it saw all of it.

The two halves are deliberately not joined. The scope carries the route identity as its own member, so nothing travels out-of-band, and make_error()’s hook is route-agnostic - it contributes to a site set, not to the (route, status) set the assertion reads. The consequence worth stating: make_error() touches no thread-local storage at all, which matters because it is an inline header function whose out-of-line copy lands in gateway_ros2, linked into six MODULE targets. Route-attributing the sites would need an ambient carrier, and that carrier would have to be a namespace-scope extern thread_local (the tl_forward_response pattern), never a function-local static thread_local, which compiles to initial-exec TLS a shared object cannot relocate. Not needing it is the stronger position, and the wire-status set is strictly more accurate than route-attributed construction sites would be.

test_openapi_error_coverage.test.py drives the whole documented surface into its error branches - every parameterised operation called with an absent id, with a malformed id, and (where a trailing absent id makes the call safe) with a real leading entity - then asserts declared is a superset of observed. The sweep is derived from the served document, so a route added tomorrow is swept tomorrow, and its companion assertions stop the rule passing vacuously: the only operations allowed to go unreached are state-changing verbs on parameterless paths, and at least one observed status must be outside the blanket set.

What the recorder cannot see has to be declared by hand, and that is the whole list:

• anything answered ahead of routing - the rate limiter’s 429, the auth middleware’s 401/403, the CORS reject, the OPTIONS pre-flight;

• anything cpp-httplib answers itself - 404/405 for an unrouted request, 413 over set_payload_max_length, 416 for an unparseable Range (an unsatisfiable-but-parseable one yields 206, not 416);

• routes mounted straight onto the server rather than through the registry - the Swagger UI subtree in -DENABLE_SWAGGER_UI=ON builds, the status recorder’s own coverage endpoint, and anything a plugin mounts through PluginManager::register_routes. The two /docs routes are not in this group: they are docs_endpoint / docs_subtree registrations, so register_all mounts them and the recorder wraps them like any other route. A plugin-served operation is excluded from the coverage assertion by its x-medkit-plugin-served marker rather than by a list;

• statuses on branches no test run drives - a provider that reports AccessDenied, a fault store that cannot be read, an update already in flight. These are the errors({...}) calls in rest_server.cpp that carry a “the recorder cannot reach it” comment.

Fourteen make_error sites pass a computed status rather than a literal, and they split into two classes that get opposite treatment:

• Seven are first-party with a finite range, and are declared. Four go through classify_parameter_error, whose ParameterErrorCode switch can only produce {400, 403, 404, 500, 503}; three go through LockError, where extend and release can only produce {400, 403, 404}. Neither set is copied by hand. The parameter routes declare handlers::parameter_error_statuses(), which runs the classifier over every enumerator listed in kAllParameterErrorCodes - so a new enumerator mapping to a new status widens the declaration with no edit at the registration, once it has been added to that hand-written array. -Werror=switch-enum alone did not force that: it demands a case, and a build with the cases added and the array left short compiled clean while the registrations silently dropped a status. The enum ends in a COUNT sentinel and the array’s size is static_assert-ed against it, which is what makes the array’s completeness a compiler check rather than a convention. The lock claim is behavioural rather than textual, so it is pinned behaviourally: LockManagerTest.extend_and_release_answer_only_400_403_404 drives every reachable failure path of both verbs and asserts the exact status set, including that 409 is not among them - only acquire conflicts.

• Seven are plugin-clamped and stay undeclared: make_plugin_error in the data, fault, lifecycle and operation handlers passes a provider-supplied status clamped only to 400-599. A plugin can answer any of ~200 statuses, so no finite errors({...}) describes it - the same reason the peer pass-through above is not declared. Left undeclared deliberately, not overlooked: this is the boundary where “declare what the gateway can emit” stops being a finite question, and both sides of it are named here so the next reader does not have to re-derive which half is which.

A shipped gateway compiles none of it: the Dockerfile builds with -DBUILD_TESTING=OFF, so make_error() is byte-identical to what it was and register_all mounts the handler directly.

Escape Hatches

Not every payload can be expressed as a typed DTO. Two orthogonal categories of escape hatches exist: in-body dynamic payloads (opaque_object fields inside a DTO, see below) and dedicated non-DTO route helpers.

Named Route Escape Hatches

The typed RouteRegistry exposes a closed set of named escape hatches for routes whose wire shape is not JSON-and-only-JSON. Each helper produces a typed handler with a purpose-built response type, so even non-DTO routes remain compile-time-checked at their boundary.

• reg.sse(path, factory) - registers a Server-Sent Events route. The factory returns a Result<http::SseStream> whose next_event callback the framework drives via cpp-httplib’s chunked content provider. Used by the fault SSE stream and by cyclic-subscription event streams. The helper declares text/event-stream on the 200 from the same string it hands cpp-httplib, and declares no frame schema: the three SSE families put different shapes in data:, so one schema here would be wrong for two of them. Each registration names its own with .success_schema<dto::XxxEventFrame>(), which replaces the schema of the already-declared 200 and leaves its Cache-Control / X-Accel-Buffering headers standing - a second response(200, ...) would replace the whole response object and drop them.

  The three families and the code each schema has to agree with:

  DTO	Built by	Shape
  TriggerEventFrame	TriggerManager	{timestamp, payload}; no error branch, because a frame exists only when the condition fired
  SubscriptionEventFrame	SubscriptionTransportProvider::make_sse_stream	{timestamp, payload | error}; a failed sample reports and the stream stays open
  FaultStreamEvent	SSEFaultHandler::format_sse_event	{event_type, fault, timestamp, x-medkit?}; no payload key at all, and timestamp is epoch seconds where the other two send an ISO 8601 string

  A schema against text/event-stream is legitimate because a data: field is a JSON document. response() decides that per media type (media_type_carries_a_json_document) rather than allowing it wholesale, so a binary download still cannot acquire one - see binary_download below. Neither schema covers the non-JSON lines a stream also emits: :keepalive comments, and the id: / event: fields the fault stream sets. The fault stream declares the matching Last-Event-ID request header, without which its frame ids are a number clients can see and cannot use.

• reg.binary_download(path, handler, media_types) - registers a range-aware binary download. The handler returns a Result<http::BinaryResponse> carrying provider, content_type, filename, supports_ranges, and total_size; the framework wires provider into cpp-httplib’s range-aware content-provider machinery so partial-content fetches work without manual Content-Range plumbing. The helper owns the whole header and status story for these routes: it sends Content-Disposition when the response names a file and Accept-Ranges: bytes when the provider is range-capable (cpp-httplib only sets the latter for HEAD), and it declares 200, 206, those headers, the Range request parameter and multipart/byteranges on the 206 - see mark_partial_content() above. media_types is required rather than defaulted so a new download route cannot inherit another route’s answer, and it must cover every value the handler can put in BinaryResponse::content_type.

• reg.multipart_upload<TResponse>(path, handler) - registers a multipart/form-data upload. The handler receives http::MultipartBody (already parsed by cpp-httplib) and returns Result<std::pair<TResponse, http::ResponseAttachments>>. Uploads declare 201 through TResponse (http::Created<dto::BulkDataDescriptor>) and use the attachments only for the Location header. Used by bulk-data POST/PUT.

  The request half has to be declared at the call site with .multipart_body(desc, parts): the helper cannot see which parts a handler looks up in MultipartBody.parts, so without it the body is the {"type": "object", "additionalProperties": true} placeholder the helper installs - a body no generated client can build. Each MultipartPart names the part, says whether the handler rejects the request without it, and carries either a schema (a textual part such as metadata) or an empty schema plus a content_type (a binary part such as file). The empty schema is deliberate: OpenAPI 3.1 describes a binary part through encoding.<part>.contentType, having dropped format: binary with the rest of the pre-JSON-Schema-2020-12 vocabulary.

• reg.static_asset(path, handler) - serves bytes already in memory (Swagger UI bundles, embedded HTML/JS/CSS) as Result<http::StaticAsset> carrying bytes, content_type, and per-response headers (Cache-Control, ETag).

• reg.docs_endpoint(path, handler) - registers the OpenAPI JSON endpoint at the given path. The handler returns Result<nlohmann::json>; this is the only built-in route allowed to use raw nlohmann::json as TResponse, because the body is the spec itself.

• reg.docs_subtree(openapi_path, regex, handler) - a route whose URI is a cpp-httplib regex the OpenAPI path grammar cannot express. Its one caller outside the unit tests is the <entity-path>/docs sub-document, mounted on (.+)/docs$ because the prefix it captures is a whole entity or resource path. openapi_path is what the document publishes and regex is what cpp-httplib matches; they are separate arguments so the regex never reaches the document as a path key.

• reg.post_alternates<TBody, TAlt...>(path, handler) / reg.del_alternates<TAlt...>(path, handler) - register multi-shape responses. The active variant alternative is dispatched to its dto_alternate_status<T>::value (default 200; specialize per type, for example NoContent -> 204, Created<T> -> 201, Accepted<T> -> 202). The published spec lists every alternative under its own status code, and the wire status is picked by the active alternative at call time. Both helpers call mark_alternates(), so these are the only operations allowed to carry more than one 2xx.

Plugin-Owned Routes (PluginContext::register_route())

Routes contributed by GatewayPlugin subclasses bypass the typed router entirely and run a void(PluginRequest, PluginResponse) handler that the plugin owns. PluginResponse is a thin shim over a cpp-httplib response whose send_json / send_error methods route through the same internal http::detail::write_json_body primitive used by the typed router, so plugin responses remain wire-format-identical to built-in responses (same SOVD GenericError shape, same Content-Type handling). The plugin ABI is locked by test_plugin_abi_conformance; nothing here changes for out-of-tree plugins.

Opaque Object Policy

Some DTO fields carry an entire JSON object whose internal shape is decided at runtime by an upstream component the gateway cannot introspect at compile time. The opaque_object("key", &T::field) descriptor in dto/contract.hpp binds such a field to a nlohmann::json member:

• JsonWriter writes the member as-is (no introspection, no schema check).

• JsonReader accepts any JSON object value, rejects scalars / arrays / null with a FieldError; an absent field leaves the member at its default (empty object).

• SchemaWriter emits {type: object, additionalProperties: true, x-medkit-opaque: true} and marks the field required (opaque fields are not wrapped in std::optional).

Use opaque_object for fields whose runtime shape depends on context, not for fields the gateway could describe but chose not to. Concrete cases in the codebase:

• Live ROS 2 message payloads - topic samples returned by data handlers carry whatever fields the actual message type declares at runtime.

• Plugin-defined fault envelopes - FaultListResult / FaultDetailResult / FaultClearResult returned by the typed FaultProvider ABI wrap a content opaque object so UDS, OPC-UA, and vendor backends can each emit their own per-item shape.

• Action results / service responses - Operation* execution payloads whose field set is determined by the ROS 2 service / action type bound to the operation, not by the gateway.

• OpenAPI spec body - the /docs endpoint returns the spec itself, declared via reg.docs_endpoint(path, Result<json>(...)) (a route-level escape hatch, not an opaque DTO field).

Fields backed by std::optional<nlohmann::json> rather than opaque_object (notably extended_data_records / snapshots on FaultEnvironmentData, and _links on the four *Detail DTOs) follow the same rule: pass the JSON through verbatim because something other than the DTO layer owns the shape. _links is the case where the reason is a type rather than a plugin: its values are a union - a path string for every relation except depends-on, which is an array of paths - and SchemaWriter walks dto_fields, so it has no descriptor for a map whose values differ in type. The field carries a description naming each relation and its value shape, so a generated client reads prose instead of an unexplained {}. The opaque DTO marker (is_opaque_dto_v<T> = true) plays the analogous role at the envelope level: it tells the framework “this whole DTO has a hand-written JsonWriter / JsonReader / SchemaWriter trio because its shape is opaque”, which is what the typed Provider envelopes use.

Provider ABI: Typed-Only Policy

Per-entity provider interfaces (FaultProvider, DataProvider, OperationProvider) and the singleton UpdateProvider all return typed DTOs. None of them return raw tl::expected<nlohmann::json, ErrorInfo> any more.

The typed envelopes - FaultListResult, FaultDetailResult, FaultClearResult, the corresponding Data*Result and Operation*Result shapes, and UpdateProvider::get_update’s typed return - wrap an opaque content payload so the wire bytes are byte-identical to the pre-typed ABI: JsonWriter emits the content object verbatim and JsonReader accepts any JSON object on round-trip. This keeps backend-specific shapes (UDS DTC records, OPC-UA alarm metadata, vendor extensions) flowing through unchanged while pinning the envelope itself to a single typed contract.

What their SchemaWriter publishes is not uniformly {type: object, x-medkit-opaque: true}. An envelope on a route that also serves ROS 2-backed entities has a known shape for exactly those entities, and publishing the bare object schema told a client nothing about either branch. So those envelopes publish an anyOf: the in-tree DTO first, the opaque plugin branch last, with a schema-level description naming x-medkit.source as the way a client tells the two apart before calling. FaultListResult (FaultList | FaultListAggregated | plugin), FaultDetailResult (FaultDetail | plugin) and DataListResult (DataList | plugin) are the three. Envelopes with no in-tree named shape - FaultClearResult, DataValue, OperationExecutionResult - stay a plain opaque object and carry a description saying who decides the shape and where a client discovers it. Every named schema needs some prose for that reason; test_openapi_contract fails a content-free schema that carries none.

UpdateDetail and UpdateRegisterRequest show the third variant: their SchemaWriter publishes real properties while JsonWriter and JsonReader stay pass-through. Nothing round-trips through the descriptor, so the vendor extensions a backend stores (Uptane TUF metadata, component lists) survive untouched, and additionalProperties: true keeps them legal. The two are typed from different sources, because the standard treats them differently: UpdateDetail gets SOVD’s attribute table (ISO 17978-3 section 7.18), since SOVD fixes the response shape; UpdateRegisterRequest declares only id - the sole field post_update validates - because SOVD leaves the register request manufacturer-specific. Transplanting the response table onto the request would document a validation the gateway does not perform.

Commercial plugins (UDS, OPC-UA, Uptane OTA, …) implement the typed interface directly. Out-of-tree plugins that previously returned raw nlohmann::json must wrap their response in the matching envelope type; the conversion is mechanical (Result.content = std::move(json_payload)).

Header Purity: No httplib Across the Plugin Boundary

Plugin-facing public headers - the provider interfaces (core/providers/*.hpp), the plugin base headers a GatewayPlugin subclass includes (core/plugins/gateway_plugin.hpp, plugin_context.hpp, plugin_http_types.hpp, plugins/ros_plugin_context.hpp), and every DTO header they pull in - MUST NOT depend on <httplib.h>. cpp-httplib is a gateway-internal implementation detail. Across the .so boundary plugins exchange only nlohmann::json, typed dto:: structs, tl::expected, and the opaque PluginRequest / PluginResponse shim. Because no httplib type ever crosses that boundary, the gateway and its plugins do not need to share an httplib version: a plugin built against the installed gateway (the ROS build-farm / Docker topology, where the gateway’s vendored httplib is not on the include path) still compiles.

The httplib-free handler-result vocabulary - Result, NoContent, Forwarded, ValidatorResult, ResponseAttachments - lives in http/handler_result.hpp. Only http/typed_router.hpp (which owns TypedRequest and the raw-response escape hatch) and the handler-internal headers downstream of it touch <httplib.h>; typed_router.hpp re-exports the handler_result.hpp vocabulary so existing includers keep working without pulling httplib transitively.

The invariant is enforced by the gateway_plugin_header_purity ctest (scripts/check_headers_httplib_free.sh, linter label), which runs a preprocessor-only scan (g++ -M -MG) over the plugin-facing surface and fails on any transitive httplib.h dependency, and by the pre-push hook of the same name. The build-farm topology (installed gateway, no vendored httplib on the include path) is reproduced locally by scripts/check_isolated_build.sh.

Fan-Out Observability

Aggregating collection routes call http::fan_out_collection<T>(agg, req) to query peer gateways and merge their items arrays. The helper returns a typed FanOutResult<T>:

template <class T>
struct FanOutResult {
  std::vector<T> items;              // parsed peer items
  bool partial{false};               // at least one peer failed
  std::vector<std::string> failed_peers;
  std::vector<dto::DroppedItem> dropped_items;  // items that failed JsonReader<T>
};

Each peer item is decoded via dto::JsonReader<T>. Items that fail validation are removed from items and recorded in dropped_items with the JsonReader error message plus a best-effort source_id extracted from the item’s id / name / fault_id / data_id / operation_id field. A WARN log fires for each drop, naming dto_name<T> and the reason. The peer URL on each DroppedItem is left empty in this commit because AggregationManager::fan_out_get coalesces all peer responses into a single merged array without per-item provenance; per-peer attribution is left for a future enrichment of the aggregation manager.

Handlers surface drops on the wire via the peer_dropped_items field on every collection-level x-medkit DTO (XMedkitCollection, FaultListXMedkit, FaultListAggXMedkit, DataListXMedkit, LogListXMedkit, …). Previously, malformed peer items disappeared silently into the merged items array; now they show up in x-medkit.peer_dropped_items so clients (and fleet operators) can detect drift between heterogeneous gateways. The legacy merge_peer_items helper (raw-JSON mutation) is still in use on routes whose merged items are dynamic-shaped (the fault aggregation routes, GET /health), where the items are not addressable by a single T for JsonReader<T>; typed collection routes (data, operations, config, logs) call fan_out_collection<T> directly.

OpenAPI Generation Pipeline

The published openapi.json is assembled mechanically from two sources:

• components/schemas is exactly collect_component_schemas<AllDtos>() - one entry per DTO listed in dto/registry.hpp, with no hand-written survivors merged in. Membership of AllDtos is therefore a publishing decision, not a bookkeeping one: a DTO that exists only to type a plugin ABI (DataWriteResult, the return type of DataProvider::write_data, which no route answers with) or that a route stopped returning (Collection<ScriptMetadata>, superseded by ScriptList) must be left out, or every generated client materialises a type it can never receive.

• paths is RouteRegistry::to_openapi_paths(): every typed route contributes a path item with $ref entries auto-derived from its TResponse / TBody template parameters plus any tags, summary, description, operation_id, parameter, or extra-status metadata pinned on the route via the fluent RouteEntry builder. The per-topic / per-service / per-action routes for genuinely dynamic ROS 2 payloads carry an inline schema built by SchemaBuilder’s from_ros_msg / from_ros_srv_request / from_ros_srv_response / generic_object_schema factories (these feed path operations, not components/schemas).

OpenApiSpecBuilder::build() then assembles info / servers / tags / security around those two compiled blocks. There are no hand-written paths items in the published spec, and no hand-written schema blocks in components/schemas. Adding a route or a DTO field updates the spec on the next process start with no schema-side edit.

Because the two blocks are compiled independently, they can drift apart: a DTO can sit in AllDtos while no route’s $ref chain reaches it. openapi::unreachable_schemas(document) (core/openapi/document_checks.hpp) closes that gap. It walks every $ref an operation makes, follows the chain through components/responses and through each reached schema, and returns the names nothing arrives at. CapabilityGenerator::generate_root() runs it over the assembled document and logs a warning naming the orphans; test_openapi_contract::test_no_unreachable_schemas is what turns a suite red. It is deliberately a free function over the finished document rather than a rule in RouteRegistry::validate_completeness(): the registry sees routes and has no visibility of either component block, so only the assembled document can answer the question. Its unit tests are test_schema_reachability, which links gateway_core - the function touches no ROS type.

openapi::referenced_schemas(subtree, pool) in the same header is the inverse walk, and it exists for the scoped <entity-path>/docs documents. Those are a projection of the root document’s paths (paths_under() filters by path segment, strip_entity_path_parameter() removes the in: path parameter a substituted id answered), so their operations $ref named schemas while the document carries only what OpenApiSpecBuilder always emits. Shipping the whole AllDtos pool on every entity page is the alternative; referenced_schemas ships the transitive closure the slice actually reaches. CapabilityGeneratorTest.SubDocumentCarriesTheSchemasItReferences walks every $ref in five scoped documents and fails on one that resolves to nothing.

Optional fields are now emitted as anyOf: [<inner>, {type: "null"}] (OpenAPI 3.1 idiom) so generated clients see T | null rather than T | undefined. That matches the wire reality of the gateway: optional fields are either present-with-value or absent, never explicit null; but the schema also accepts null so clients that prefer to emit a nullable value on the wire round-trip cleanly through JsonReader.

Adding a New DTO

Follow these four steps when introducing a new typed payload:

1. Define the struct and its descriptor in the appropriate domain header under include/ros2_medkit_gateway/dto/. Add a dto_fields<T> specialization and a dto_name<T> specialization in the same header.

   // In dto/my_domain.hpp
   struct MyResponse {
     std::string id;
     std::optional<std::string> label;
     int64_t count{0};
   };

   template <>
   inline constexpr auto dto_fields<MyResponse> = std::make_tuple(
       field("id",    &MyResponse::id),
       field("label", &MyResponse::label),
       field("count", &MyResponse::count));

   template <>
   inline constexpr std::string_view dto_name<MyResponse> = "MyResponse";


2. Register in AllDtos by adding MyResponse to the tuple in include/ros2_medkit_gateway/dto/registry.hpp. Also add the include for dto/my_domain.hpp at the top of registry.hpp.

3. Use in the handler. Handlers never touch httplib::Response - they return http::Result<TResponse> and the framework writes the body. Entity validation is also typed: validate_entity_for_route returns http::ValidatorResult<EntityInfo>; the helper flatten_validator_error collapses the local-error and Forwarded branches into a single ErrorInfo (the Forwarded branch becomes the framework-internal sentinel that the RouteRegistry wrapper recognises and skips error rendering for):

   // GET handler - typed response
   http::Result<dto::MyResponse> MyHandlers::handle_get(http::TypedRequest req) {
     auto entity = ctx_.validate_entity_for_route(req, req.path_param(0));
     if (!entity) {
       return tl::make_unexpected(flatten_validator_error(entity.error()));
     }

     dto::MyResponse resp;
     resp.id    = entity->id;
     resp.label = "example";
     resp.count = 42;
     return resp;
   }

   // POST handler - typed request body (parsed by the framework before
   // the handler runs; the handler receives an already-validated TBody).
   http::Result<dto::MyResponse> MyHandlers::handle_post(
       http::TypedRequest req, dto::MyCreateRequest body) {
     // use body.field_name directly
     dto::MyResponse resp;
     // ... build response ...
     return resp;
   }


4. Register the route via the typed RouteRegistry. Because MyResponse is now in AllDtos, collect_component_schemas() automatically includes its schema in the /docs response, and the typed overload wires the $ref into the path item:

   • For built-in gateway routes, register in rest_server.cpp::setup_routes() via reg.get<T> / reg.post<TBody, T> / etc. The framework derives the response<T>(200, "") and request_body<TBody>("") slots from the template parameters; the call site only adds tags, summary, extra status codes, and operation_id:

     reg.get<dto::MyResponse>(
            "/my-entity/{id}/my-resource",
            [this](http::TypedRequest req) -> http::Result<dto::MyResponse> {
              /* handler */
            })
         .tag("MyTag")
         .summary("Get my resource")
         .operation_id("getMyResource")
         .response(404, "Resource not found");  // extra non-200 status


   • For plugin-contributed routes, use the RouteDescriptionBuilder API in core/openapi/route_descriptions.hpp. Plugin routes do not go through the typed registry (see Plugin-Owned Routes above), so the schema wire-up is explicit.

Adding a New Endpoint (Full Checklist)

A new endpoint with a typed payload follows the standard gateway handler checklist plus the DTO steps above:

1. Define DTO struct + dto_fields + dto_name in a domain header.

2. Add to AllDtos in registry.hpp.

3. Implement handler in src/http/handlers/ as a typed function returning http::Result<TResponse>.

4. Register route in rest_server.cpp::setup_routes() via reg.get<T> / reg.post<TBody, T> / reg.del<T> / the matching alternates or escape-hatch helper. Use the dual-path pattern for entity types that share the same route shape.

5. Declare the route’s weakest permitted caller with .requires_role(UserRole::...) - see “Route Authorization” below. This is not optional: validate_completeness() reports a route without it as an error, because authorization fails closed and the route would answer 403 for every role below ADMIN.

6. Nothing to do for the root endpoint list: get_root derives it from the registry, so registering the route advertises it. Routes a plugin mounts itself are derived too, from RouteDescriptions::endpoints(). Swagger UI is the only hand-written entry left. That the list and the document agree is checked by test_openapi_contract.test.py::test_the_root_list_and_the_document_agree.

7. Add URI field to entity detail response if the new route is a resource collection.

8. Write a unit test using JsonWriter<T>::write() and JsonReader<T>::read() directly - no HTTP server needed.

9. Write an integration test that calls the live endpoint.

Route Authorization

A route’s RBAC rule is a property of the route, so it is declared where the route is registered:

reg.put<dto::ConfigurationWriteRequest, dto::ConfigurationReadValue>(...)
    .tag("Configuration")
    .requires_role(UserRole::CONFIGURATOR)
    ...

That one call feeds two consumers, which is the whole reason it lives on the registration rather than in a table beside it:

• RouteRegistry::route_permissions(api_prefix) turns it into the "<METHOD>:<pattern>" entries AuthManager::check_authorization matches against. RESTServer::setup_routes() merges those into the manager before the server starts listening, together with AuthConfig::residual_route_permissions() for the routes the registry never sees (plugin routes, Swagger UI, the test-build status recorder).

• to_openapi_paths() publishes it as security: [{bearerAuth: [<role>]}] on the operation - the same shape a plugin’s OperationDesc::requires_role emits. CapabilityGenerator::generate_impl() strips every per-operation requirement again when auth.enabled is false, once, over the assembled document.

Two translations happen inside route_permissions():

• The pattern is derived from the route’s cpp-httplib regex, not from its OpenAPI path. ([^/]+) becomes * and (.+) becomes **, which is what keeps the slash-spanning parameters ({data_id}, {config_id}) and the <entity-path>/docs catch-all reachable. Deriving from {param} alone would make all three single-segment.

• Roles are expanded upward. AuthConfig has no inheritance - check_authorization looks up exactly one role’s set - so a route declaring OPERATOR is written into OPERATOR, CONFIGURATOR and ADMIN.

public_route() is the only alternative to requires_role(), and it is legitimate only where the middleware exempts the path before the table is consulted at all - today /auth/*, which both AllAuthRequirementPolicy and WriteOnlyAuthRequirementPolicy let through by prefix. It emits security: [] and contributes no permission entry.

The declaration is required on hidden() routes too. Hidden removes a route from the document, not from the router: the request still arrives and still meets the permission table. test_rbac_contract.test.py is the end-to-end check that the published role and the enforced role are the same role.

Collection<T, XMedkitT> Parametrisation

The generic Collection<T, XMedkitT> list wrapper is parameterised over both the item type and the collection-level x-medkit shape. Entity list endpoints (areas, components, apps, functions) use the default XMedkitCollection x-medkit; the domain collection endpoints specialise XMedkitT to their richer per-domain shape (FaultListXMedkit, FaultListAggXMedkit, ConfigListXMedkit, DataListXMedkit, LogListXMedkit). For the config and log list routes the published schema references the actual collection x-medkit struct directly, so generated clients see the exact aggregation, peer-provenance, and peer_dropped_items fields that appear on the wire.

The fault and data list routes are the exception: they publish the opaque FaultListResult / DataListResult envelopes rather than the typed Collection<...> schema, because plugin-owned entities can return vendor-specific per-item shapes that the typed item schema cannot describe. The data list handler still builds a typed Collection<DataItem, DataListXMedkit> for runtime (ROS 2) entities and serializes it into the envelope (so the wire shape - including peer_dropped_items - is unchanged), but the plugin branch passes the provider’s free-form payload through verbatim. See “Opaque Object Policy” and the “Provider ABI” section above.

Key Files

include/ros2_medkit_gateway/dto/contract.hpp

Field, dto_fields, dto_name, is_dto_v, for_each_field - the contract primitives.

include/ros2_medkit_gateway/dto/json_writer.hpp

JsonWriter<T> - struct to JSON serialization.

include/ros2_medkit_gateway/dto/schema_writer.hpp

SchemaWriter<T> and schema_of<U> - type to OpenAPI schema.

include/ros2_medkit_gateway/dto/json_reader.hpp

JsonReader<T> and FieldError - JSON to struct with validation.

include/ros2_medkit_gateway/dto/registry.hpp

AllDtos tuple and collect_component_schemas().

src/openapi/route_registry.hpp

RouteRegistry typed overloads (get<T> / post<TBody, T> / del<T> / alternates) and named escape hatches (sse / binary_download / multipart_upload<T> / static_asset / docs_endpoint / docs_subtree), plus the wrapper-closure template implementations.

include/ros2_medkit_gateway/http/response_types.hpp

SseStream, BinaryResponse, MultipartBody, StaticAsset - the typed response shapes consumed by the named escape hatches.

include/ros2_medkit_gateway/http/handlers/handler_context.hpp

HandlerContext::validate_entity_for_route and the typed validator surface (ValidatorResult<T>, flatten_validator_error).

Domain headers

dto/errors.hpp, dto/entities.hpp, dto/faults.hpp, dto/operations.hpp, dto/config.hpp, dto/locks.hpp, dto/triggers.hpp, dto/logs.hpp, dto/scripts.hpp, dto/updates.hpp, dto/auth.hpp, dto/health.hpp, dto/bulkdata.hpp, dto/cyclic_subscriptions.hpp, dto/data.hpp, dto/x_medkit.hpp - per-domain struct definitions with co-located dto_fields and dto_name specializations. dto/errors.hpp holds GenericError, the error response DTO used by every endpoint.

dto/enums.hpp

Enum-vocabulary header. Contains the constexpr string_view arrays (kFaultSeverityLabelValues, kOperationExecutionStatusValues, etc.) referenced by field_enum() descriptors in the domain headers. Does not define any DTO structs.
